NSN 5340-01-145-1296 H521K2124, 13029940, 01-145-1296
Product Details | FLUSH CATCH
5340-01-145-1296 A positive fastening device having an integral flush lever or button actuator designed to be mounted so that when in locked position no portion protrudes above the exterior surface of the door, cover, or the like. Excludes CATCH (as modified) and LATCH (as modified).
Part Alternates: H521K2124, 13029940, 5340-01-145-1296, 01-145-1296, 5340011451296, 011451296
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 JAN 1983 | 01-145-1296 | 20262 ( CATCH, FLUSH ) |

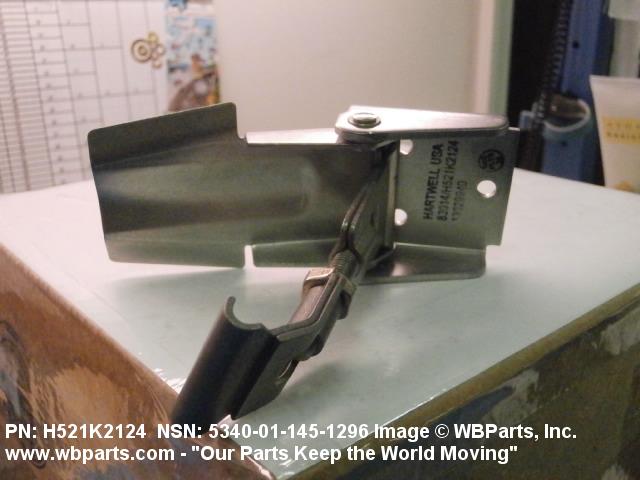

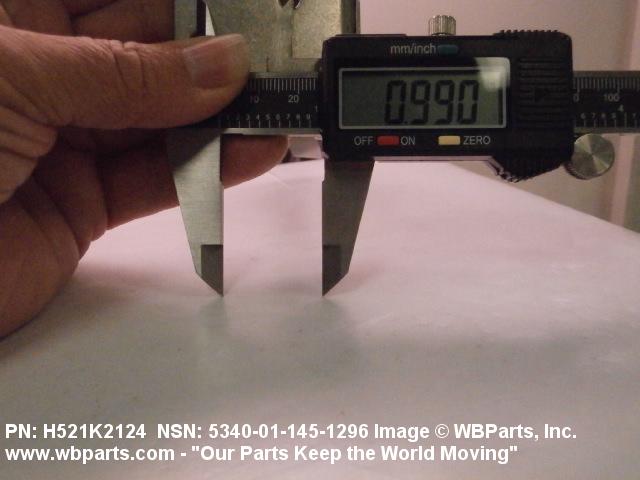

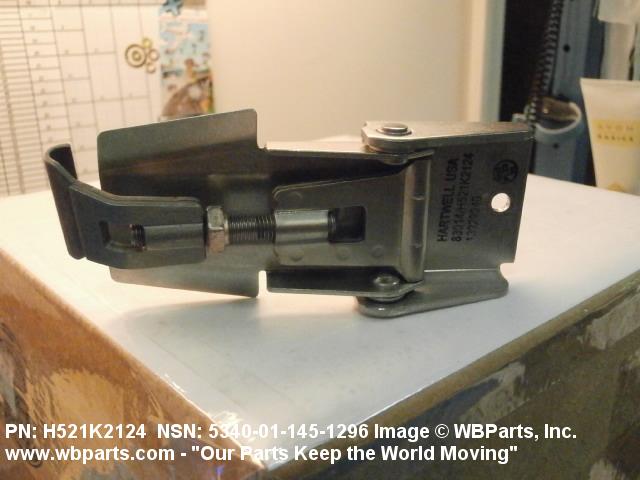

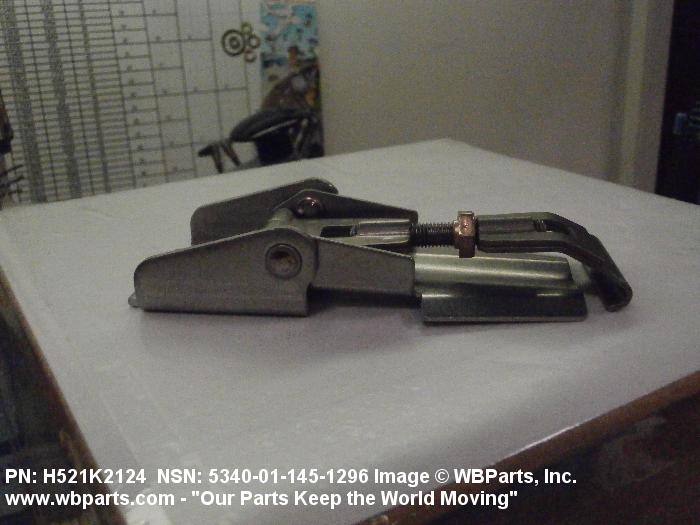

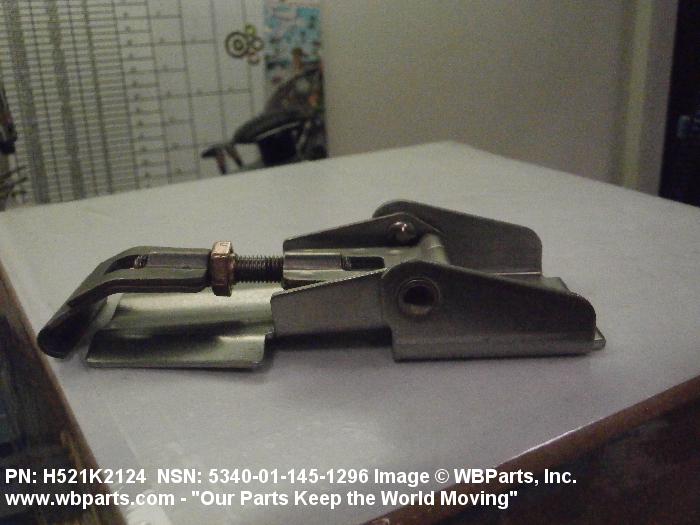

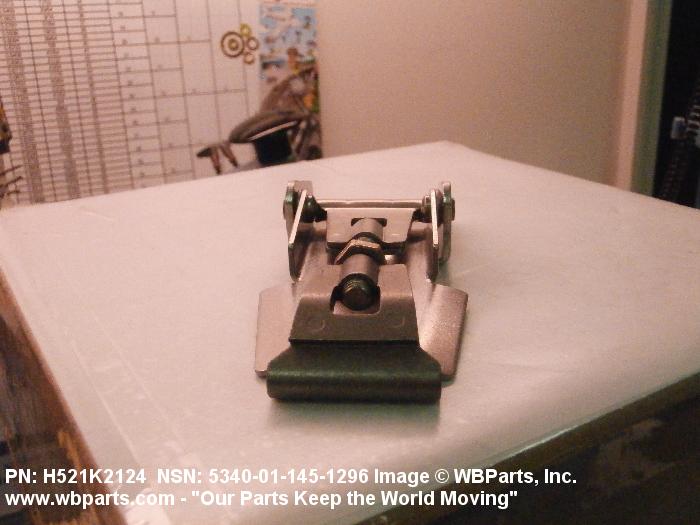

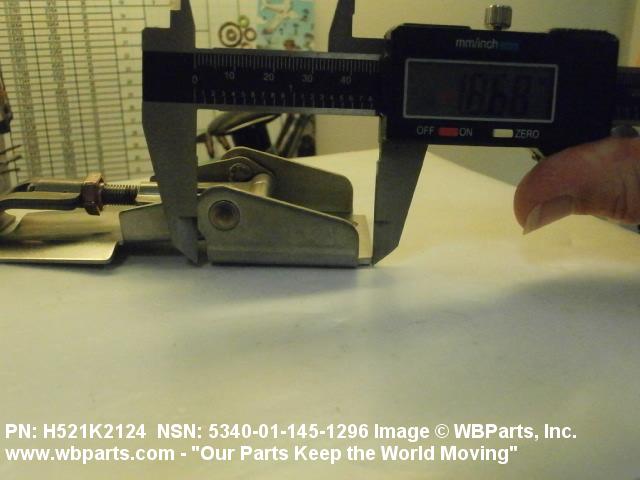

Drawings & Photos | NSN 5340-01-145-1296
Demand History | NSN 5340-01-145-1296
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-145-1296 | 2024-03-73 | 200 | US |
| 5340-01-145-1296 | 2020-08-244 | 100 | US |
| H521K2124 | 2020-04-114 | 60 | DIBBS |
| H521K2124 | 2020-03-90 | 16 | DIBBS |
| H521K2124 | 2020-01-05 | 27 | DIBBS |
| 5340-01-145-1296 | 2016-08-244 | 84 | DIBBS |
| 5340-01-145-1296 | 2016-08-214 | 455 | DIBBS |
| 5340-01-145-1296 | 2013-10-283 | 235 | DIBBS |
| 5340-01-145-1296 | 2013-09-247 | 1 | United States |
| 5340-01-145-1296 | 2013-09-246 | 82 | DIBBS |
| 5340-01-145-1296 | 2013-07-190 | 55 | United States |
| 5340-01-145-1296 | 2010-10-277 | 20 | us |
| 5340-01-145-1296 | 2009-03-62 | 135 | DIBBS |
| 5340-01-145-1296 | 2008-06-176 | 135 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-145-1296
Related Products | NSN 5340-01-145-1296
Technical Data | NSN 5340-01-145-1296
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | PASSIVATE OVERALL |

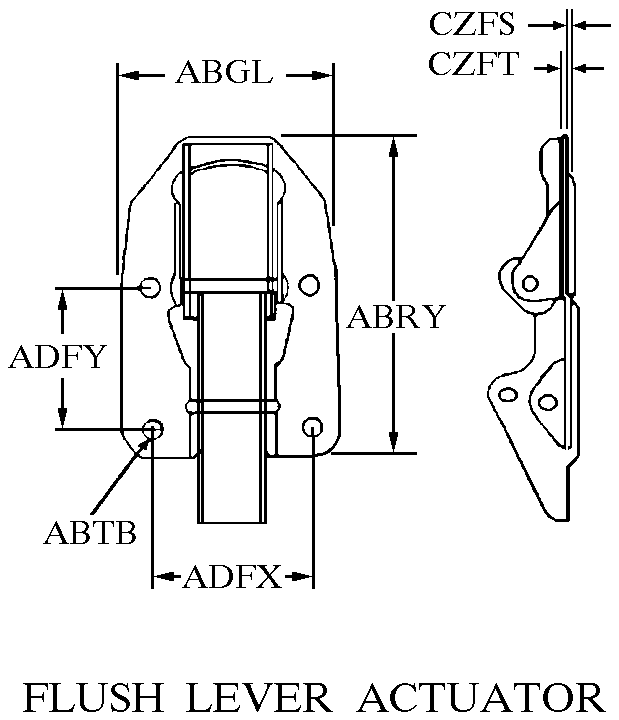

| STYLE DESIGNATOR | B1 FLUSH LEVER ACTUATOR |

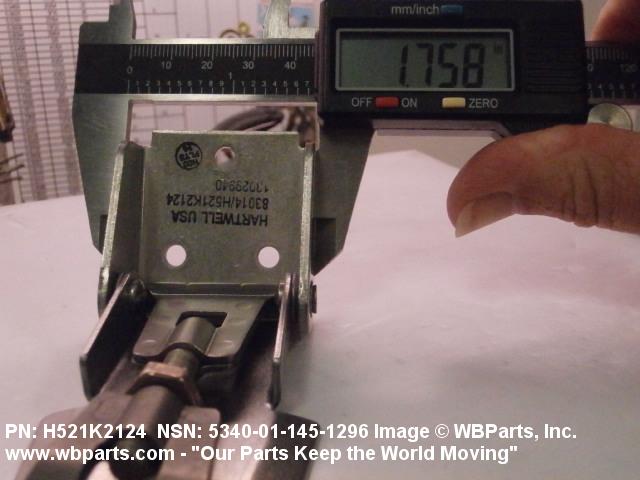

| WIDTH | 1.750 INCHES NOMINAL |
| LENGTH | 1.840 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.193 INCHES MINIMUM AND 0.199 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 0.875 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.938 INCHES NOMINAL |
| LEVER OFFSET DISTANCE | 0.090 INCHES NOMINAL |
| BOLT OFFSET DISTANCE | 0.300 INCHES NOMINAL |
| SPECIAL FEATURES | HOOK MATL STEEL,HANDLE MATL STEEL,BRACKET MATL STEEL |
| MANUFACTURERS CODE | 83014 |
| DESIGN CONTROL REFERENCE | H521K2124 |
Restrictions/Controls & Freight Information | NSN 5340-01-145-1296
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-145-1296
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
