Product Details | BUTT HINGE
5340-01-147-0875 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: 71311755001, 71311755-001, 5340-01-147-0875, 01-147-0875, 5340011470875, 011470875
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 FEB 1983 | 01-147-0875 | 22894 ( HINGE, BUTT ) |
Drawings & Photos | NSN 5340-01-147-0875
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-147-0875
Technical Data | NSN 5340-01-147-0875
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, FED STD 66, AISI 301/SAE 30301 OVERALL OR STEEL, FED STD 66, AISI 302/SAE 30302 OVERALL OR STEEL, FED STD 66, AISI 303/SAE 30303 OVERALL OR STEEL, FED STD 66, COMP 304 OVERALL OR STEEL, FED STD 66, COMP 316 OVERALL OR STEEL, FED STD 66, AISI 321/SAE 30321 OVERALL |
| SURFACE TREATMENT AND LOCATION | PASSIVATE QQ-P-35 OVERALL |

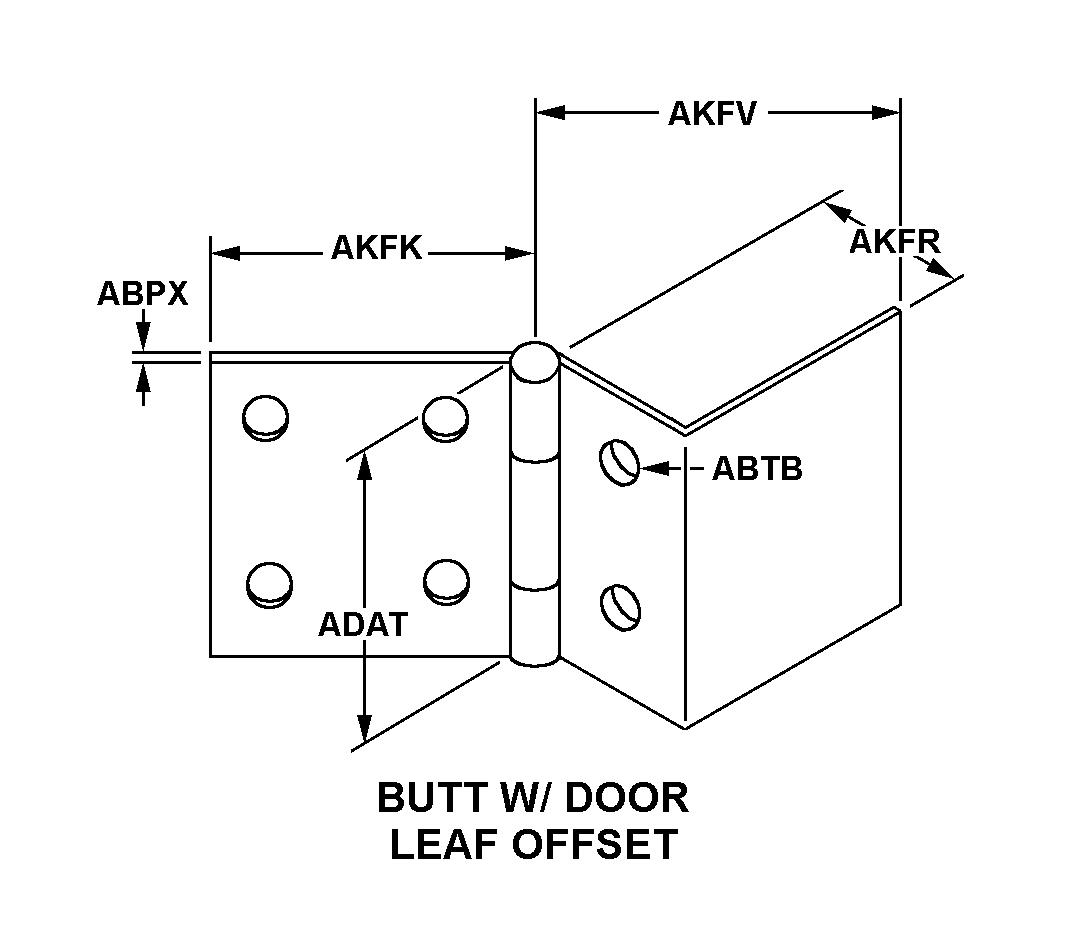

| STYLE DESIGNATOR | 30 BUTT W/DOOR LEAF OFFSET |
| MATERIAL THICKNESS | 0.036 INCHES MINIMUM AND 0.044 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | ANY ACCEPTABLE |
| BODY WIDTH | 0.500 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 0.635 INCHES NOMINAL |
| DOOR LEAF OFFSET DISTANCE | 0.288 INCHES NOMINAL |
| DEVELOPED DISTANCE FROM PIN CENTER TO OFFSET DOOR LEAF EDGE | 0.788 INCHES NOMINAL |
| REVERSIBLE FEATURE | NOT INCLUDED |
| PIN REMOVABILITY | NONREMOVABLE |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 3 |
| PERFORMANCE TYPE | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5340-01-147-0875
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095300 | HINGES/BUTTS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
