NSN 5340-01-160-0398 MS211058, MS21105-8, MS21919CJ8
Product Details | LOOP CLAMP
5340-01-160-0398 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: MS211058, MS21105-8, MS21919CJ8, MS21919H8, MS21919H88, MS21919H8-8, MS21919WCJ8, MS21919WH8, AS21919WCJ08, 10112823 , 5340-01-160-0398, 01-160-0398, 5340011600398, 011600398
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 AUG 1983 | 01-160-0398 | 17532 ( CLAMP, LOOP ) |

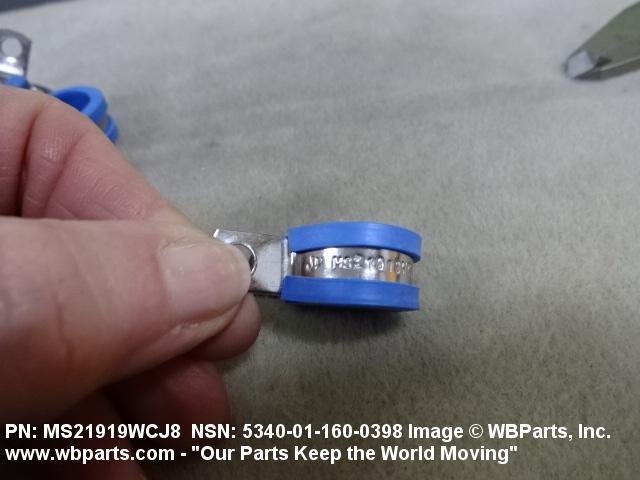

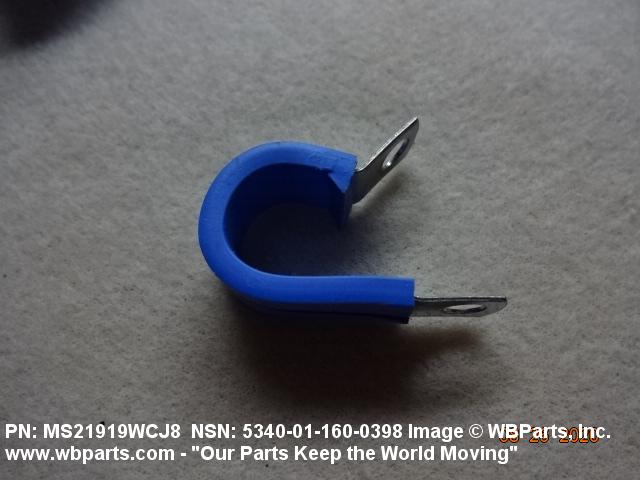

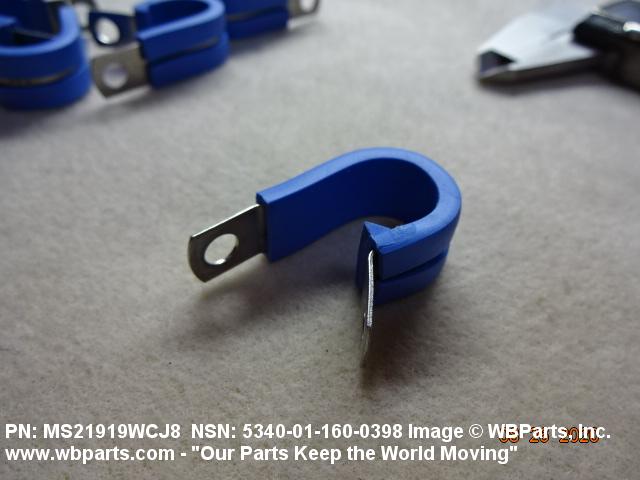

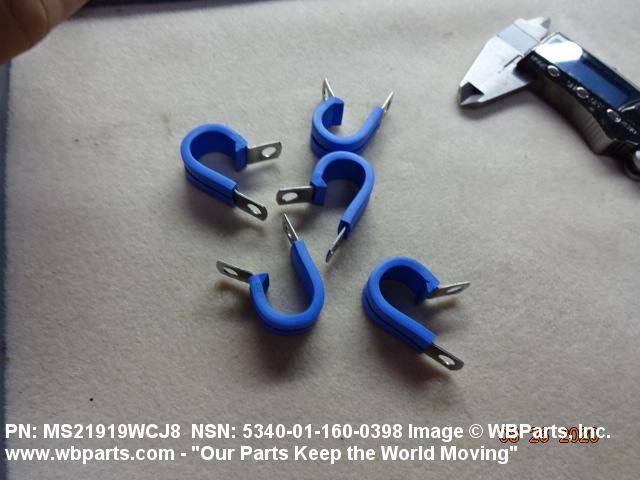

Drawings & Photos | NSN 5340-01-160-0398
Demand History | NSN 5340-01-160-0398
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21919H8 | 2023-07-212 | 4 | us |
| MS21919WCJ8 | 2021-12-354 | 30 | United States |
| MS21919WCJ8 | 2021-04-120 | 16 | South Africa |
| MS21919WCJ8 | 2020-05-128 | 100 | United States |
| MS21919WCJ8 | 2020-05-122 | 20 | Korea |
| MS21919WCJ8 | 2018-09-253 | 500 | United States |
| MS21919WCJ8 | 2016-08-216 | 20 | AU |
| MS21919WH8 | 2016-03-83 | 4 | Brazil |
| MS21919WH8 | 2012-11-310 | 50 | |
| AS21919WCJ08 | 2012-02-40 | 50 | TR |
| AS21919WCJ08 | 2008-06-170 | 10 | US |
| AS21919WCJ08 | 2008-06-170 | 10 | US |
| AS21919WCJ08 | 2008-06-170 | 100 | UZ |
Cross Reference | NSN 5340-01-160-0398
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS21919WCJ08 | 2Y159 | PROVAIL |
| AS21919WCJ08 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21105-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21919CJ8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21919H8 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS21919H8-8 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS21919WCJ8 | 2Y159 | PROVAIL |
| MS21919WCJ8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21919WH8 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-160-0398
Related Products | NSN 5340-01-160-0398
Technical Data | NSN 5340-01-160-0398
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 BAND RUBBER FLUOROSILICONE CLASS FQ CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6721 MIL SPEC SINGLE MATERIAL RESPONSE BAND MIL-R-25988,TY 2,CL 1,GR 60 MIL SPEC SINGLE MATERIAL RESPONSE CUSHION |
| SURFACE TREATMENT | PASSIVATE BAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BAND |
| STYLE DESIGNATOR | A5 OFFSET MOUNT |

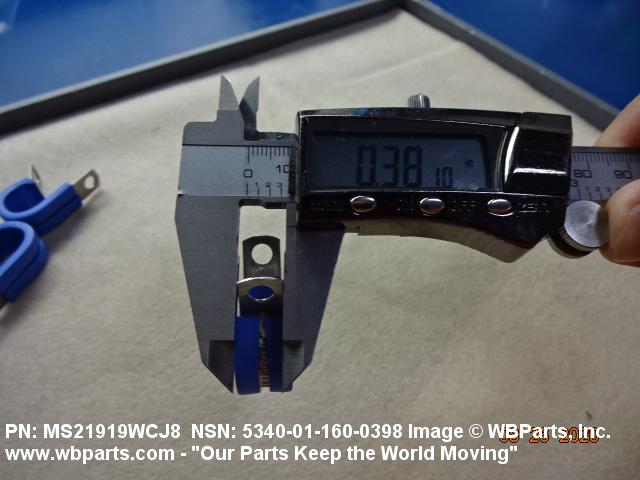

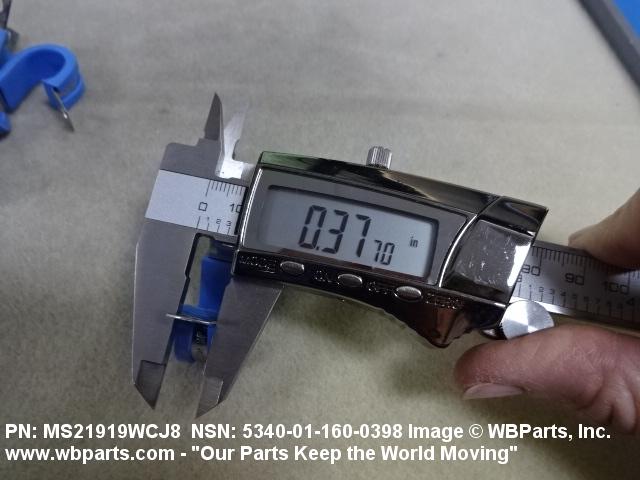

| OVERALL WIDTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |

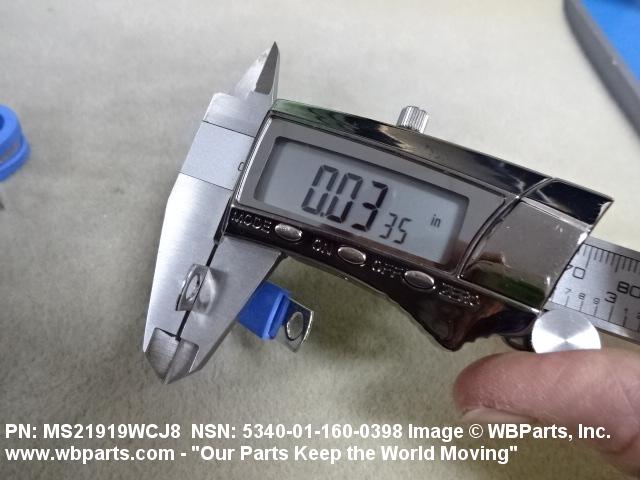

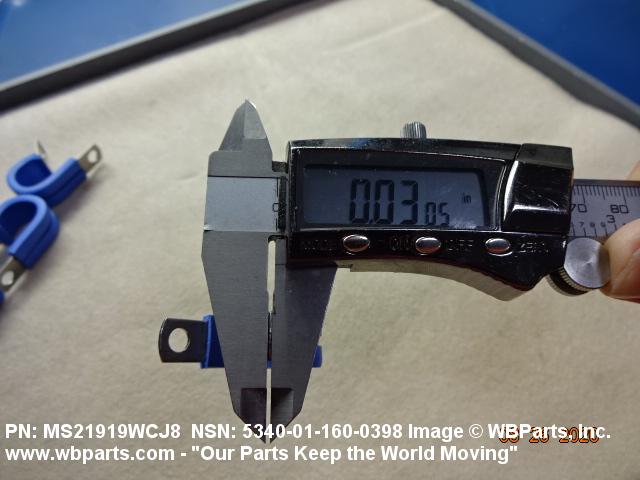

| MATERIAL THICKNESS | 0.032 INCHES NOMINAL |

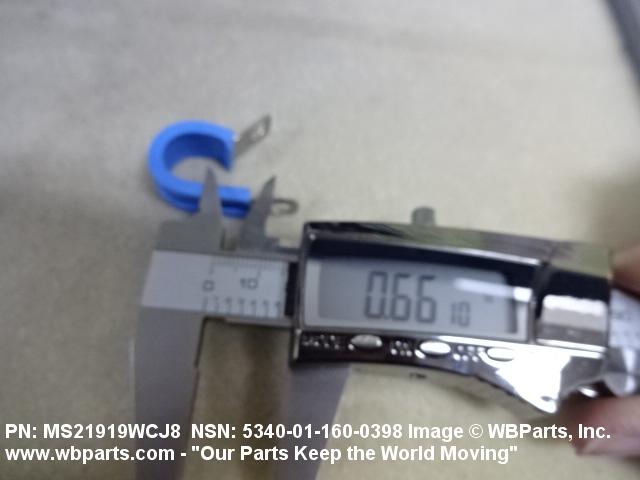

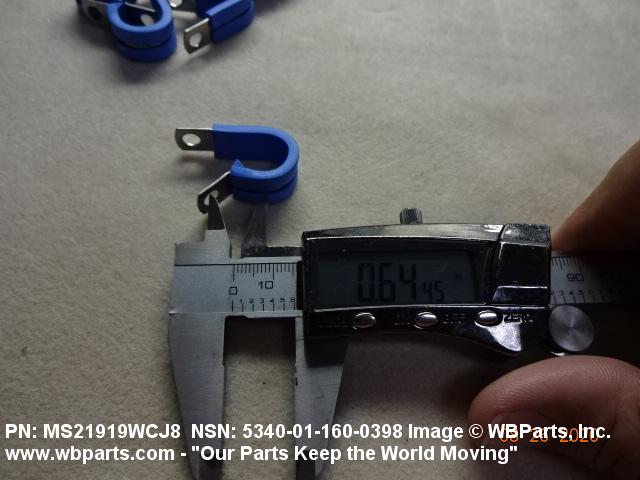

| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.639 INCHES MINIMUM AND 0.669 INCHES MAXIMUM |

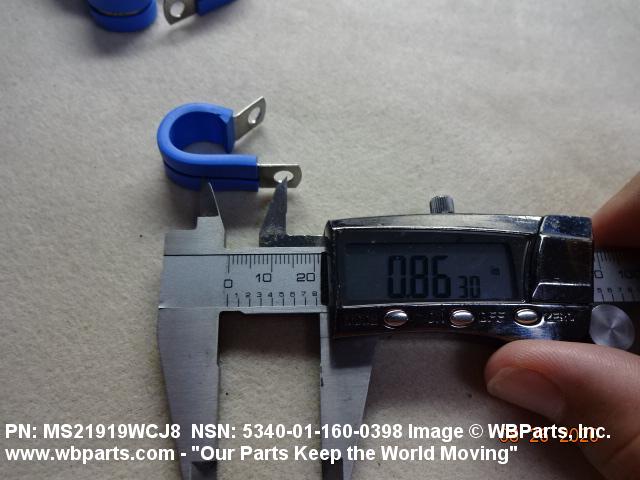

| DISTANCE FROM LOOP CENTER TO TONGUE END | 0.842 INCHES MINIMUM AND 0.902 INCHES MAXIMUM |

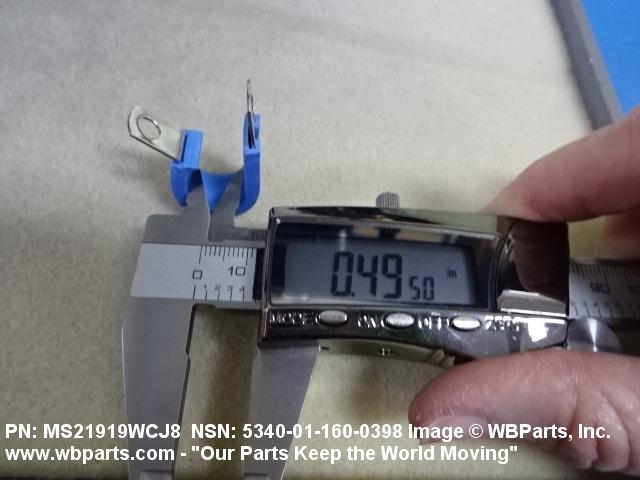

| LOOP INSIDE DIAMETER | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

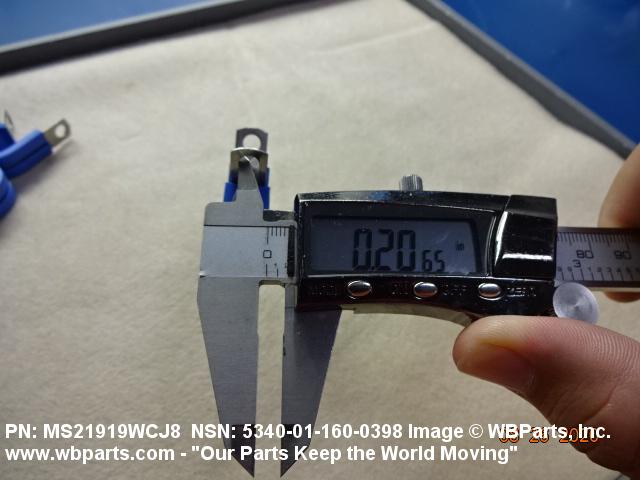

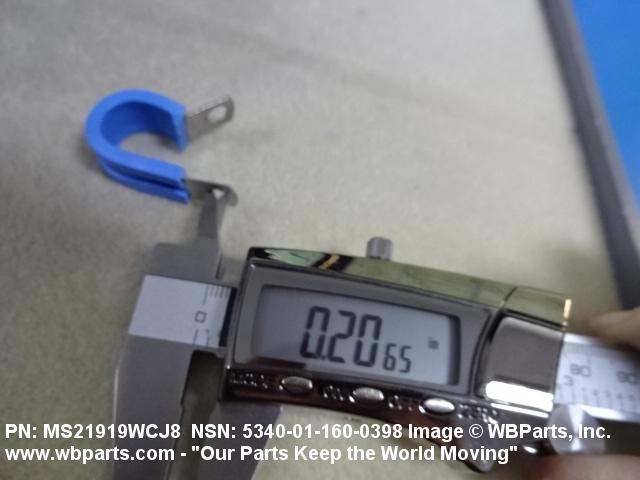

| DIAMETER | 0.199 INCHES MINIMUM AND 0.209 INCHES MAXIMUM |
| CUSHIONING ENVIRONMENTAL PROTECTION | OIL RESISTANT AND FUEL RESISTANT |
| SPECIAL FEATURES | CUSHION SOLID BLUE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21919WCJ8 |
Restrictions/Controls & Freight Information | NSN 5340-01-160-0398
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-160-0398
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BX | OH-58D Army Helicopter Improvement Program (AHIP) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
