Product Details | CATCH STRIKE
5340-01-176-8798 A platelike item designed to be fastened to a door, door jamb, or the like, for the purpose of receiving the mating pin, plunger or bolt, of a lock, latch, or catch. See also RECEPTACLE, FRICTION CATCH STUD.20210050018Guns, through 30mm53400020Hardware, Commerical
Part Alternates: 12316953, 5340-01-176-8798, 01-176-8798, 5340011768798, 011768798
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 APR 1984 | 01-176-8798 | 20251 ( STRIKE, CATCH ) |

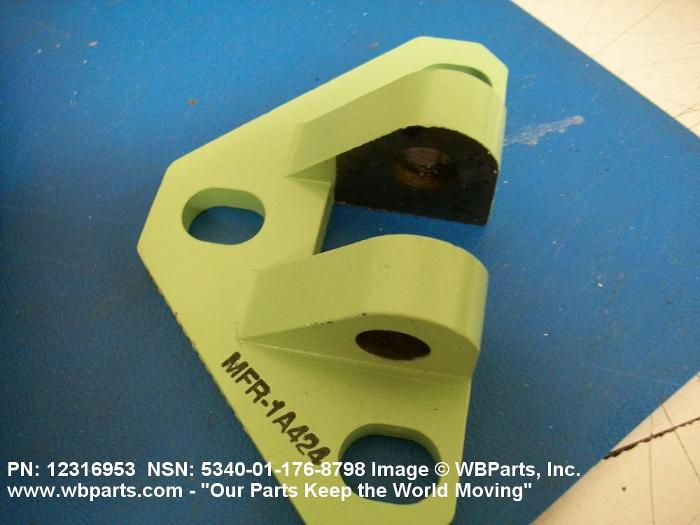

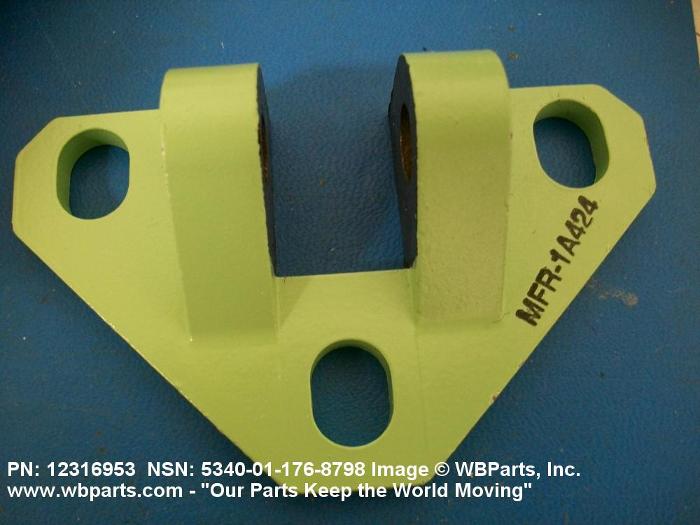

Drawings & Photos | NSN 5340-01-176-8798
Demand History | NSN 5340-01-176-8798
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-176-8798 | 2021-08-19 | 15 | DIBBS |
| 5340-01-176-8798 | 2020-11-26 | 10 | DIBBS |
| 5340-01-176-8798 | 2020-08-26 | 2 | DIBBS |
| 5340-01-176-8798 | 2020-06-08 | 5 | DIBBS |
| 5340-01-176-8798 | 2020-02-26 | 5 | DIBBS |
| 5340-01-176-8798 | 2019-07-16 | 5 | DIBBS |
| 12316953 | 2012-10-10 | 16 | United States |
| 12316953 | 2010-06-16 | 96 | United States |
Cross Reference | NSN 5340-01-176-8798
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12316953 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-01-176-8798
Related Products | NSN 5340-01-176-8798
5340-01-176-8866, 5340-01-176-8991, 5340-01-176-8992, 5340-01-176-8993, 5340-01-176-9113
Technical Data | NSN 5340-01-176-8798
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.390 INCHES NOMINAL |
| DIAMETER | 0.441 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.242 INCHES NOMINAL |
| OPENING LENGTH | 0.585 INCHES NOMINAL |
| HEIGHT | 1.010 INCHES NOMINAL |
| FIRST SURFACE HOLE QUANTITY | 3 |
| III END ITEM IDENTIFICATION | IFV (XM2) CFV (XM3) |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 12316953 |
Restrictions/Controls & Freight Information | NSN 5340-01-176-8798
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-176-8798
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | MM | Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
