NSN 5340-01-188-5924 SLP5135A3400, SLP5135A3-400, 01-188-5924
Product Details | PANEL PLUG
5340-01-188-5924
Part Alternates: SLP5135A3400, SLP5135A3-400, 5340-01-188-5924, 01-188-5924, 5340011885924, 011885924
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 SEP 1984 | 01-188-5924 | 77777 ( ) |

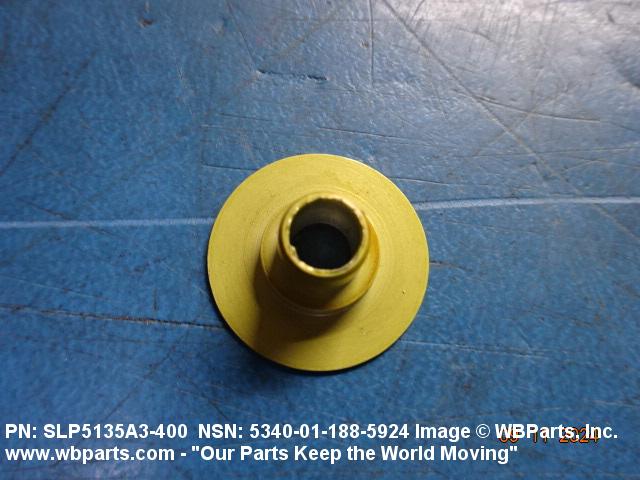

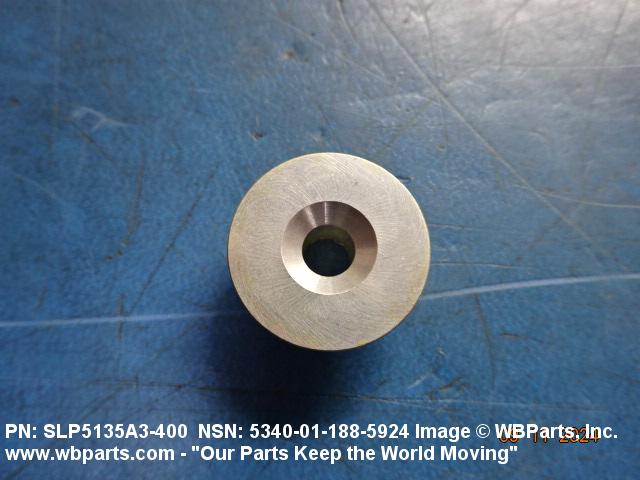

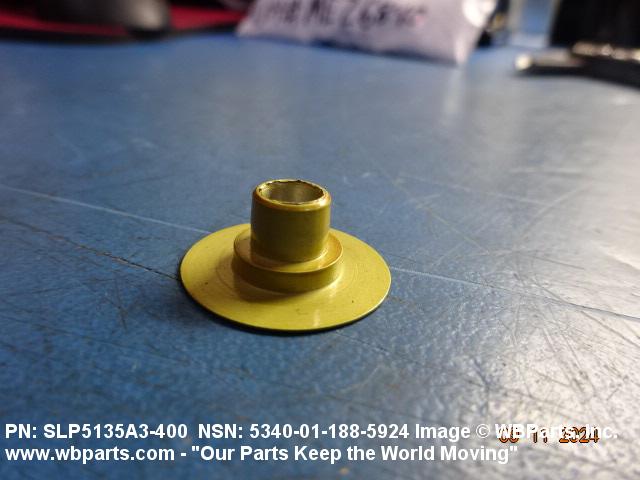

Drawings & Photos | NSN 5340-01-188-5924
Demand History | NSN 5340-01-188-5924
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-188-5924 | 2024-09-247 | 40 | United States |
Cross Reference | NSN 5340-01-188-5924
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SLP5135A3-400 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-188-5924
Related Products | NSN 5340-01-188-5924
Technical Data | NSN 5340-01-188-5924
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | ALUMINUM ALLOY,2024-T4,QQ-A-235/6; ANODIZE,MIL-A-8625,TY 1,CL 1; FLANGE 0.875 IN. DIA,0.017-0.021 IN. THK,SECOND FLANGE 0.452 IN. DIA,0.100IN. THK,SHAFT 0.230 IN. LG; HOLE THRU 0.234 IN. DIA,CSK 100 DEG BY 0.400 IN. DIA; MATES WITH 97393/SLS5135A3 |
Restrictions/Controls & Freight Information | NSN 5340-01-188-5924
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
