Product Details | BUTT HINGE LEAF
5340-01-197-0519 An item consisting of one leaf only of a HINGE, BUTT, with or without a hinge pin.
Part Alternates: 5187186, 5340-01-197-0519, 01-197-0519, 5340011970519, 011970519
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 DEC 1984 | 01-197-0519 | 07655 ( LEAF, BUTT HINGE ) |
Drawings & Photos | NSN 5340-01-197-0519
Demand History | NSN 5340-01-197-0519
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-197-0519 | 2025-11-310 | 2 | DIBBS |
| 5340-01-197-0519 | 2025-10-300 | 36 | DIBBS |
| 5340-01-197-0519 | 2025-10-288 | 36 | DIBBS |
| 5340-01-197-0519 | 2025-08-223 | 1 | DIBBS |
| 5340-01-197-0519 | 2025-07-210 | 1 | DIBBS |
| 5340-01-197-0519 | 2025-04-91 | 1 | DIBBS |
| 5340-01-197-0519 | 2024-06-171 | 36 | DIBBS |
| 5340-01-197-0519 | 2023-08-235 | 36 | DIBBS |
| 5340-01-197-0519 | 2023-07-212 | 36 | DIBBS |
| 5340-01-197-0519 | 2013-02-44 | 2 | DIBBS |
| 5340-01-197-0519 | 2013-01-29 | 2 | DIBBS |
Cross Reference | NSN 5340-01-197-0519
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5187186 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-197-0519
Related Products | NSN 5340-01-197-0519
Technical Data | NSN 5340-01-197-0519
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| SURFACE TREATMENT AND LOCATION | ANODIZED, MIL-A-8625, TYPE 1, CLASS 1 OVERALL |

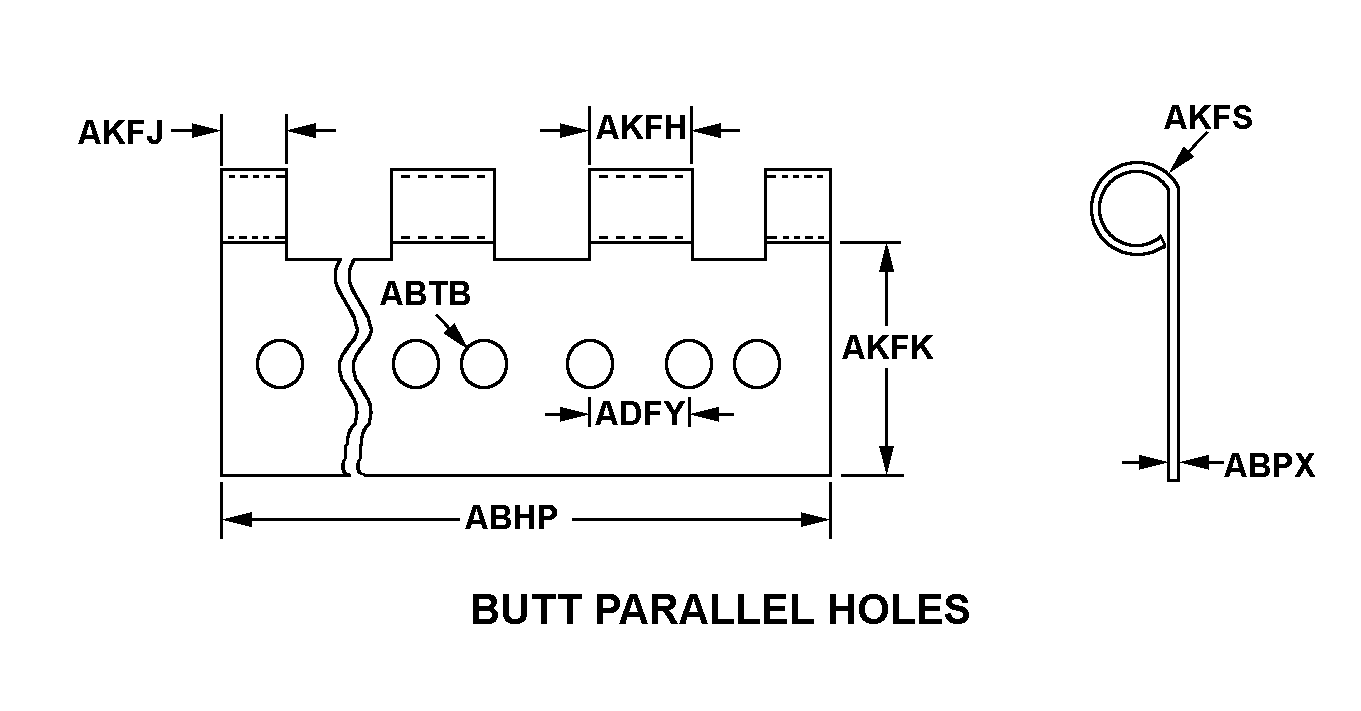

| STYLE DESIGNATOR | 46 BUTT PARALLEL HOLES |
