NSN 5340-01-206-2354 50825, 01-206-2354, 012062354
Product Details | CORROSION PREVENTIVE ANODE
5340-01-206-2354 An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium.20253400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: 50825, 5340-01-206-2354, 01-206-2354, 5340012062354, 012062354
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 APR 1985 | 01-206-2354 | 13154 ( ANODE, CORROSION PREVENTIVE ) |
Drawings & Photos | NSN 5340-01-206-2354
Demand History | NSN 5340-01-206-2354
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-206-2354 | 2018-10-274 | 10 | DIBBS |
| 5340-01-206-2354 | 2017-05-143 | 10 | DIBBS |
| 5340-01-206-2354 | 2017-04-97 | 7 | DIBBS |
| 5340-01-206-2354 | 2017-03-86 | 7 | DIBBS |
| 5340-01-206-2354 | 2017-01-29 | 3 | DIBBS |
| 5340-01-206-2354 | 2016-10-298 | 7 | DIBBS |
| 5340-01-206-2354 | 2016-08-217 | 5 | DIBBS |
| 5340-01-206-2354 | 2016-07-213 | 2 | DIBBS |
| 5340-01-206-2354 | 2015-08-229 | 15 | DIBBS |
| 5340-01-206-2354 | 2015-08-225 | 4 | DIBBS |
Cross Reference | NSN 5340-01-206-2354
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50825 | 89357 | EVOQUA WATER TECHNOLOGIES LLC DBA ELECTRIC CATALYTIC PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-206-2354
Related Products | NSN 5340-01-206-2354
Technical Data | NSN 5340-01-206-2354
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | PLATINUM ANODE |

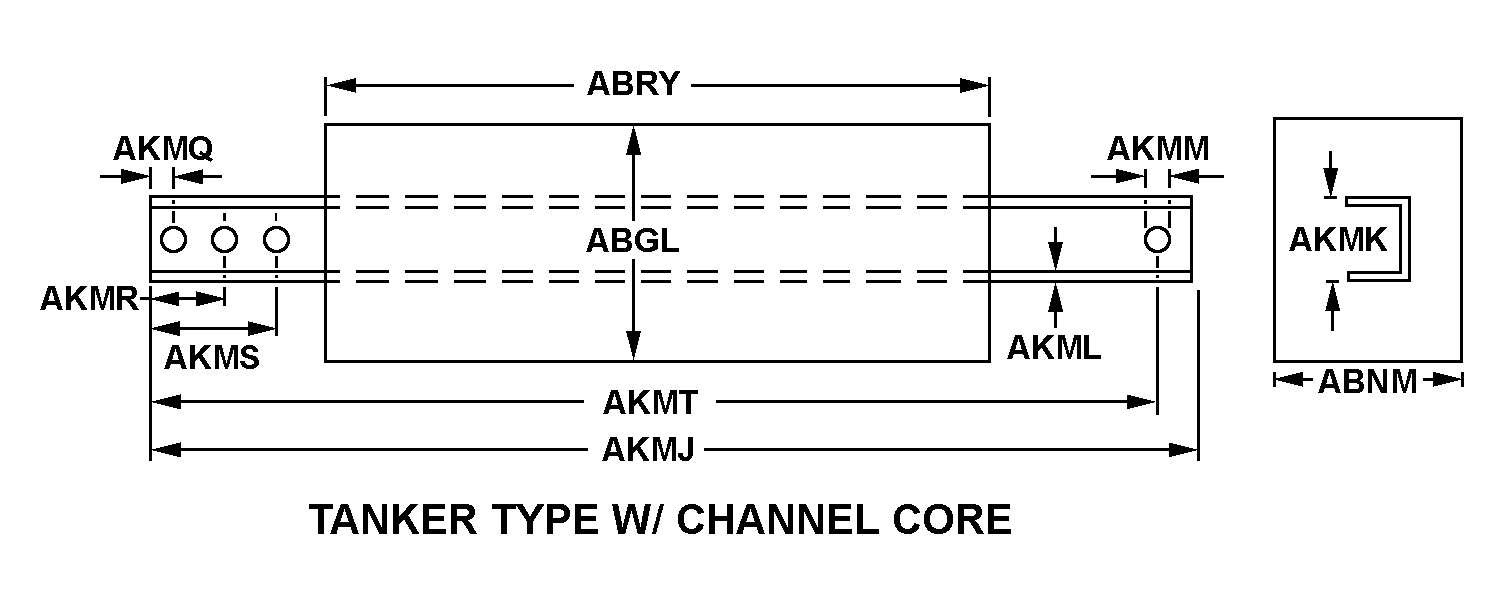

| STYLE DESIGNATOR | 31 TANKER TYPE WITH CHANNEL CORE |
| WIDTH | 4.375 INCHES NOMINAL |
| THICKNESS | 1.000 INCHES NOMINAL |
| LENGTH | 48.000 INCHES NOMINAL |
| CORE LENGTH | 45.501 INCHES NOMINAL |
| CORE WIDTH | 2.687 INCHES NOMINAL |
| CORE THICKNESS | 1.000 INCHES NOMINAL |
| CORE HOLE DIAMETER | 0.375 INCHES NOMINAL |
| DISTANCE FROM EDGE TO CENTER OF FIRST HOLE | 1.437 INCHES NOMINAL |
| DISTANCE FROM EDGE TO CENTER OF SECOND HOLE | 2.937 INCHES NOMINAL |
| DISTANCE FROM EDGE TO CENTER OF THIRD HOLE | 14.437 INCHES NOMINAL |
| DISTANCE FROM EDGE TO CENTER OF FOURTH HOLE | 20.937 INCHES NOMINAL |
| CONSTRUCTION | SOLID |
| WEIGHT | 30.0 POUNDS |
| III UNPACKAGED UNIT WEIGHT | 30.00 POUNDS |
| III PRECIOUS MATERIAL | PLATINUM |
| III PRECIOUS MATERIAL AND LOCATION | EXTERNAL COATING PLATINUM |
| MANUFACTURERS CODE | 89357 |
| DESIGN CONTROL REFERENCE | 50825 |
Restrictions/Controls & Freight Information | NSN 5340-01-206-2354
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | P | Item contains platinum family metals |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 200500 | ZINC:ANODES |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XF | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
