NSN 5340-01-208-5674 97041A009, 01-208-5674, 012085674
Product Details | EXPANSION SHIELD
5340-01-208-5674 An item for inserting in a hole, usually in masonry, designed to be expanded either by means of a setting tool or by the insertion of the bolt, screw or nail for mounting or attaching another object. It may include the bolt, screw or nail.
Part Alternates: 97041A009, 5340-01-208-5674, 01-208-5674, 5340012085674, 012085674
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAY 1985 | 01-208-5674 | 08322 ( SHIELD, EXPANSION ) |
Drawings & Photos | NSN 5340-01-208-5674
Cross Reference | NSN 5340-01-208-5674
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 97041A009 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-208-5674
Technical Data | NSN 5340-01-208-5674
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL AND LEAD ALLOY |

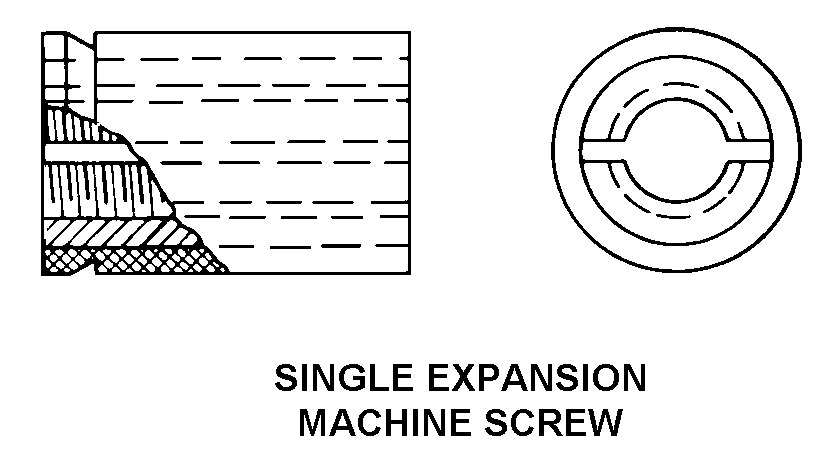

| STYLE DESIGNATOR | 1 SINGLE EXPANSION MACHINE SCREW |
| HOLE ACCOMMODATION DIAMETER | 0.312 INCHES NOMINAL |
| INSERT TYPE FOR WHICH DESIGNED | SCREW |
| INSERT SIZE | 8-32 UNC |
| UNIT QUANTITY | 1 |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| THREAD PROVISION | THREADED |
Restrictions/Controls & Freight Information | NSN 5340-01-208-5674
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5340-01-208-5674
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
