NSN 5340-01-217-7410 MS21919WH22, 01-217-7410, 012177410
Product Details | LOOP CLAMP
5340-01-217-7410 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: MS21919WH22, 5340-01-217-7410, 01-217-7410, 5340012177410, 012177410
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 OCT 1985 | 01-217-7410 | 17532 ( CLAMP, LOOP ) |

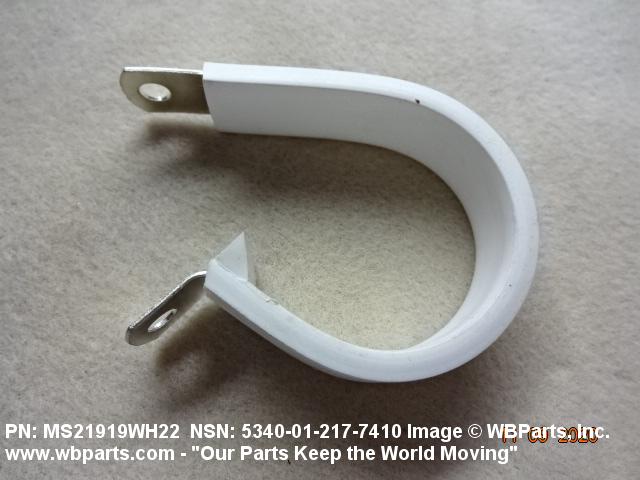

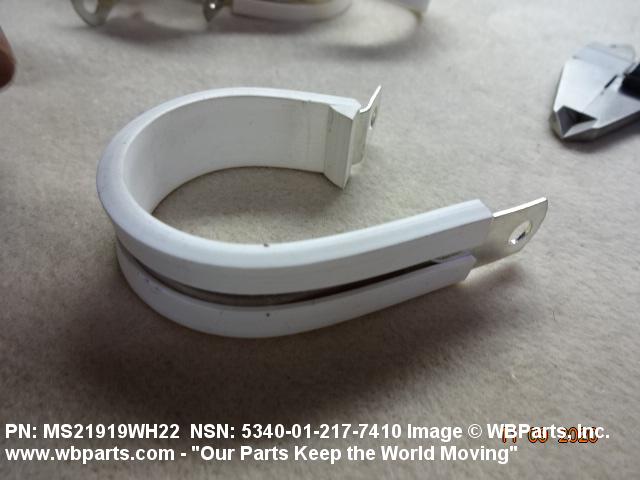

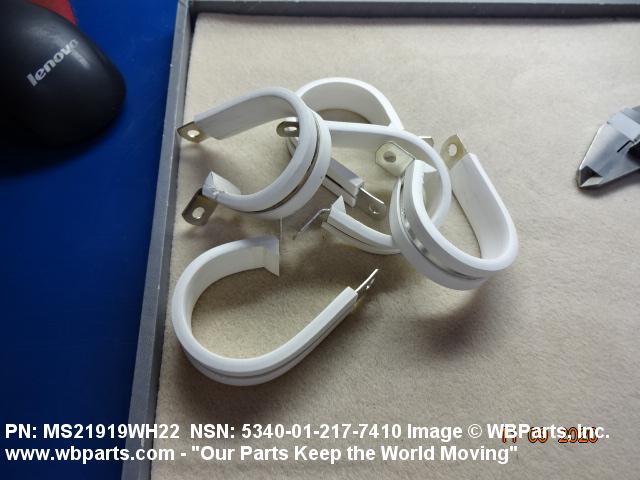

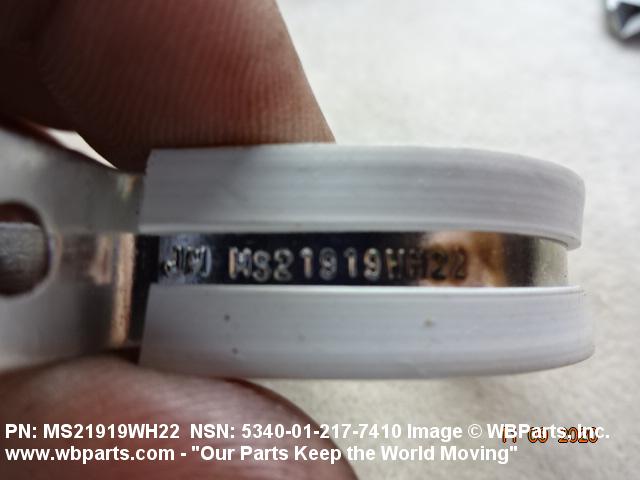

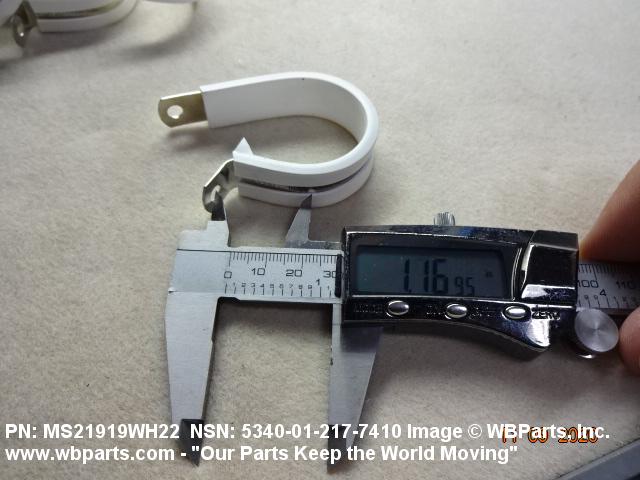

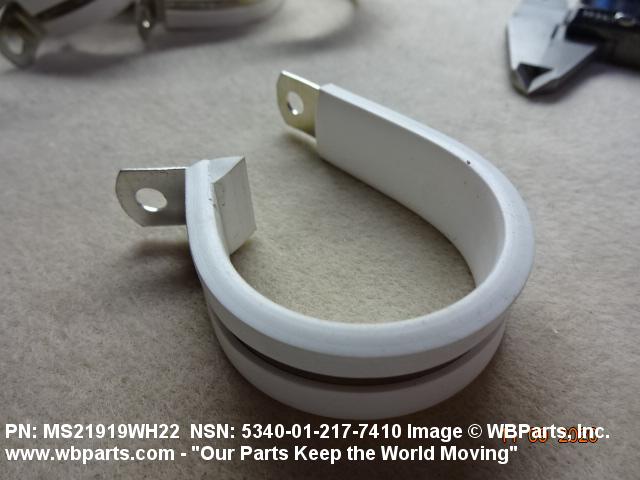

Drawings & Photos | NSN 5340-01-217-7410
Demand History | NSN 5340-01-217-7410
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21919WH22 | 2012-11-310 | 50 |
Cross Reference | NSN 5340-01-217-7410
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21919WH22 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-217-7410
Technical Data | NSN 5340-01-217-7410
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BAND RUBBER SILICONE CLASS Q CUSHION |
| SURFACE TREATMENT | CADMIUM BAND |
| STYLE DESIGNATOR | A5 OFFSET MOUNT |

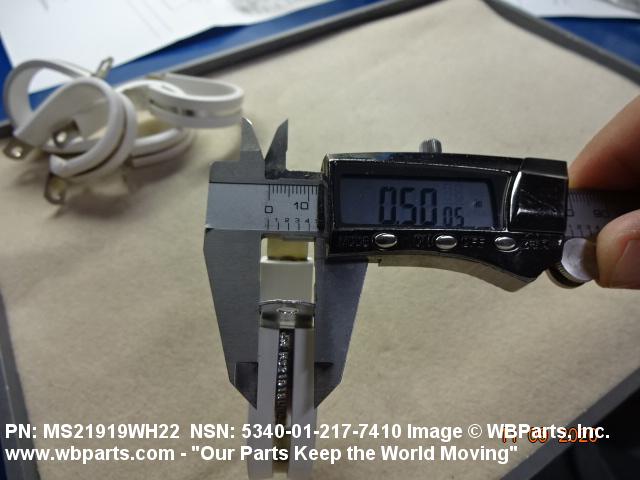

| OVERALL WIDTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |

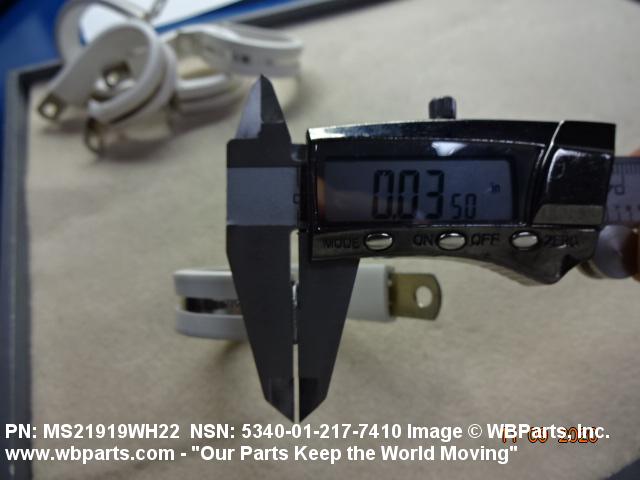

| MATERIAL THICKNESS | 0.032 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 1.140 INCHES MINIMUM AND 1.170 INCHES MAXIMUM |

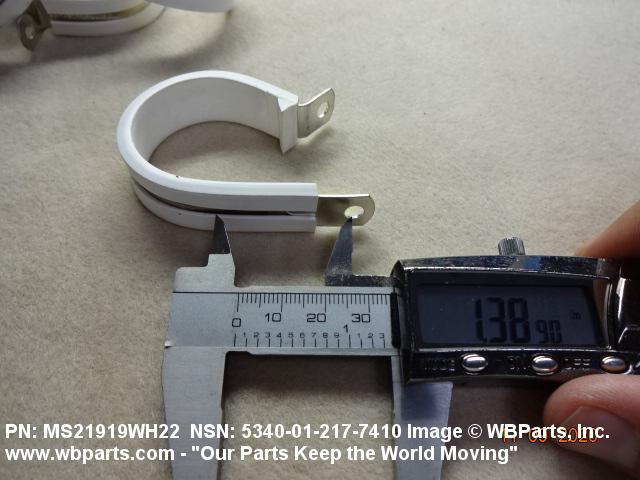

| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.358 INCHES MINIMUM AND 1.388 INCHES MAXIMUM |

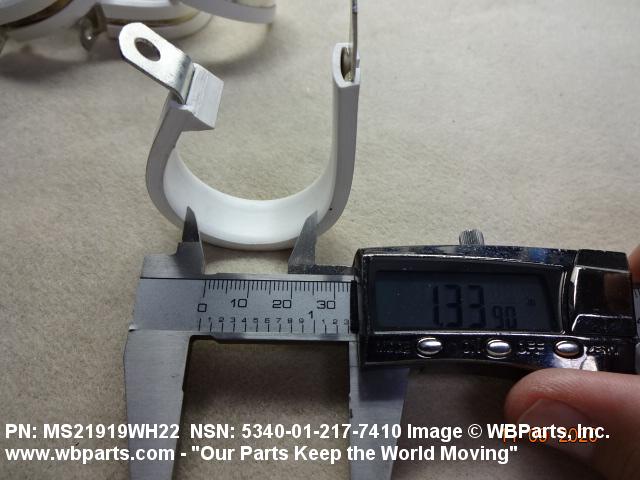

| LOOP INSIDE DIAMETER | 1.320 INCHES MINIMUM AND 1.350 INCHES MAXIMUM |
| TEMP RATING | 400.0 DEG FAHRENHEIT |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

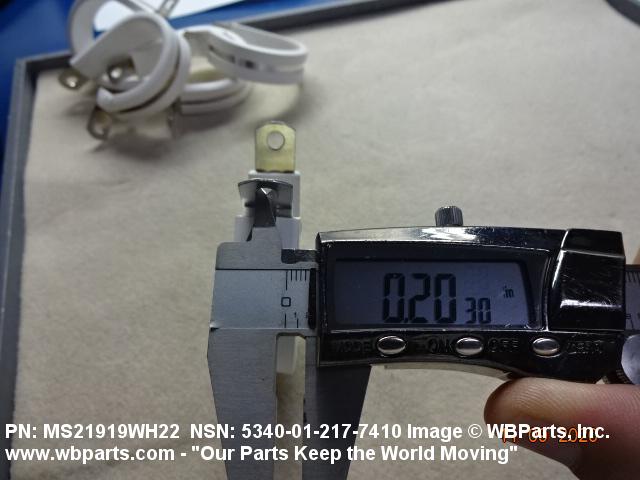

| DIAMETER | 0.199 INCHES MINIMUM AND 0.209 INCHES MAXIMUM |
| CUSHIONING ENVIRONMENTAL PROTECTION | OZONE RESISTANT |
| SPECIFICATION/STANDARD DATA | 96906-MS21919 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21919WH22 |
Restrictions/Controls & Freight Information | NSN 5340-01-217-7410
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-217-7410
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
