NSN 5340-01-219-8319 D4518, 01-219-8319, 012198319
Product Details | PLUG BUTTON
5340-01-219-8319 An item, usually made of metal, having a finished cap with spring tension prongs on the underside, or spring wire fitted into the sides of the walls. When inserted in punched or drilled holes in metal sheets or tubes, the expanding action of the prongs or spring wire holds the item securely in place. It is specifically designed to close a hole; to cover a hole through which passes a shaft, cable, or the like; or to provide a perforated cover for a vent or breather hole. Excludes FASTENER, SPRING TENSION, TRIM.
Part Alternates: D4518, 5340-01-219-8319, 01-219-8319, 5340012198319, 012198319
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 NOV 1985 | 01-219-8319 | 11251 ( BUTTON, PLUG ) |
Drawings & Photos | NSN 5340-01-219-8319
Cross Reference | NSN 5340-01-219-8319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D4518 | 57771 | EDWIN B. STIMPSON COMPANY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-219-8319
Technical Data | NSN 5340-01-219-8319
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OR STEEL OR STEEL COMP 1010 |

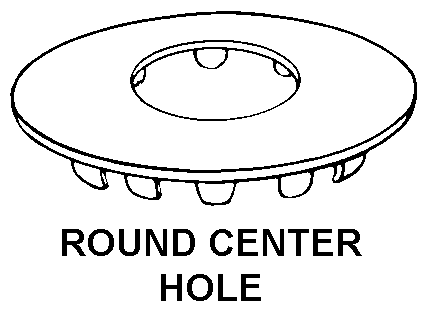

| STYLE DESIGNATOR | 9 ROUND CENTER HOLE |
| HEAD HEIGHT | 0.078 INCHES NOMINAL |
| OVERALL HEIGHT | 0.281 INCHES NOMINAL |
| HEAD OUTSIDE DIAMETER | 0.656 INCHES NOMINAL |
| PRONG OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| HEAD OPENING INSIDE DIAMETER | 0.295 INCHES MINIMUM AND 0.298 INCHES MAXIMUM |
| HOLE ACCOMMODATION DIAMETER | 0.500 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.031 INCHES MINIMUM AND 0.094 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5340-01-219-8319
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
