NSN 5340-01-232-1900 10112989 , 74A3308472005, 74A330847-2005
Product Details | SPRING TENSION CLIP
5340-01-232-1900 A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available.
Part Alternates: 10112989 , 74A3308472005, 74A330847-2005, 5340-01-232-1900, 01-232-1900, 5340012321900, 012321900
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 MAY 1986 | 01-232-1900 | 20815 ( CLIP, SPRING TENSION ) |
Drawings & Photos | NSN 5340-01-232-1900
Demand History | NSN 5340-01-232-1900
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-232-1900 | 2017-03-75 | 201 | DIBBS |
| 5340-01-232-1900 | 2016-04-94 | 182 | DIBBS |
| 5340-01-232-1900 | 2015-03-70 | 450 | DIBBS |
| 5340-01-232-1900 | 2015-01-21 | 105 | DIBBS |
| 5340-01-232-1900 | 2009-01-16 | 304 | DIBBS |
| 5340-01-232-1900 | 2009-01-02 | 306 | DIBBS |
| 5340-01-232-1900 | 2008-12-350 | 350 | DIBBS |
| 5340-01-232-1900 | 2008-11-317 | 252 | DIBBS |
| 5340-01-232-1900 | 2008-10-291 | 189 | DIBBS |
| 5340-01-232-1900 | 2008-10-282 | 450 | DIBBS |
| 5340-01-232-1900 | 2008-07-190 | 450 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-232-1900
Technical Data | NSN 5340-01-232-1900
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

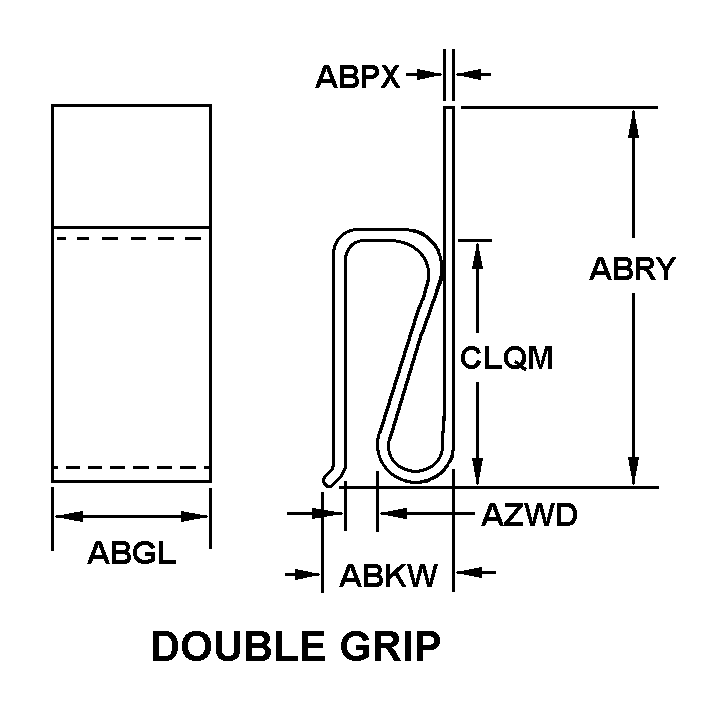

| STYLE DESIGNATOR | C44 DOUBLE GRIP |
| WIDTH | 0.700 INCHES NOMINAL |
| OVERALL HEIGHT | 1.350 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.020 INCHES NOMINAL |
| LENGTH | 2.170 INCHES NOMINAL |
| LOOP OPENING WIDTH | 0.250 INCHES NOMINAL |
| LOOP/HOLDING DIMENSION | 0.250 INCHES NOMINAL |
| LOOP HEIGHT | 1.200 INCHES NOMINAL |
| MOUNTING METHOD | SCREW |
Restrictions/Controls & Freight Information | NSN 5340-01-232-1900
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094220 | CLIPS SHEET STEEL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-232-1900
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
