Product Details | BLANK PANEL
5340-01-239-9486 A panel designed to fill a space not occupied by actual operating components, and may have instructions, component designations, or component identifications etched or printed thereon.20253400020Hardware, Commercial59750032Electrical Hardware and Supplies
Part Alternates: BACP10U0187B, 5340-01-239-9486, 01-239-9486, 5340012399486, 012399486
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 SEP 1986 | 01-239-9486 | 15195 ( PANEL, BLANK ) |

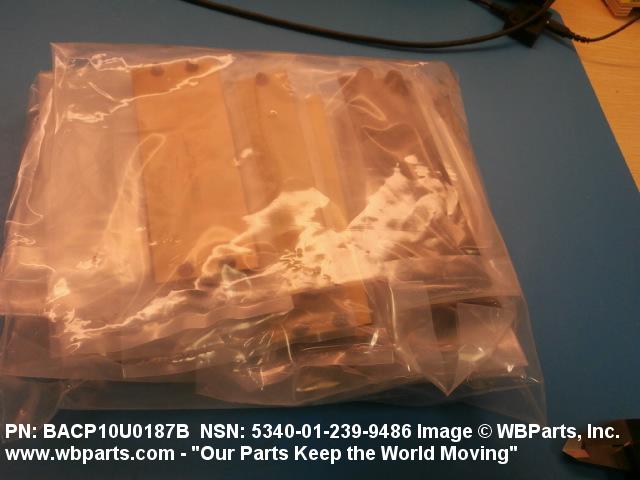

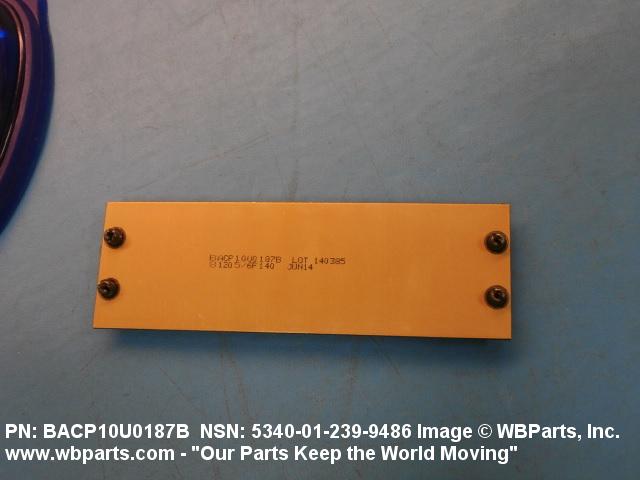

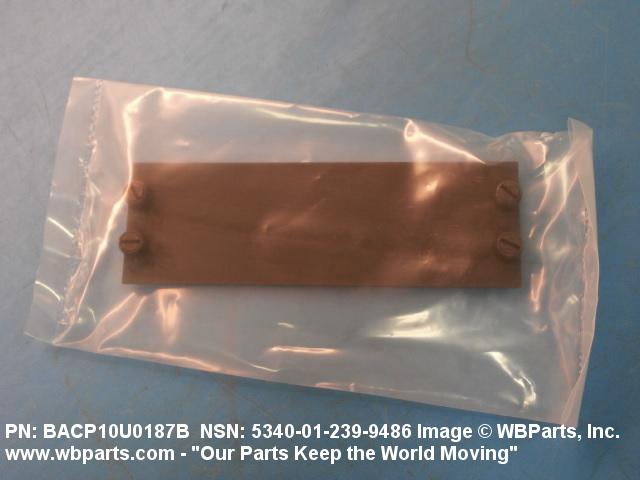

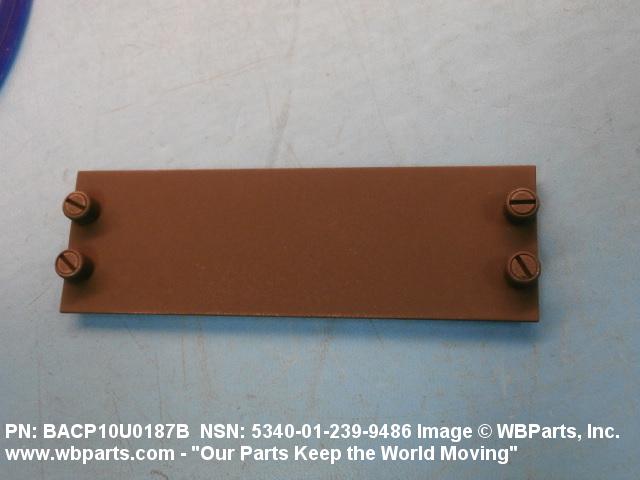

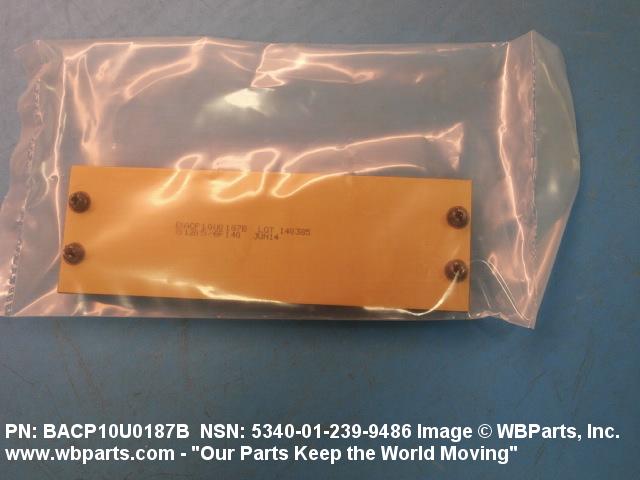

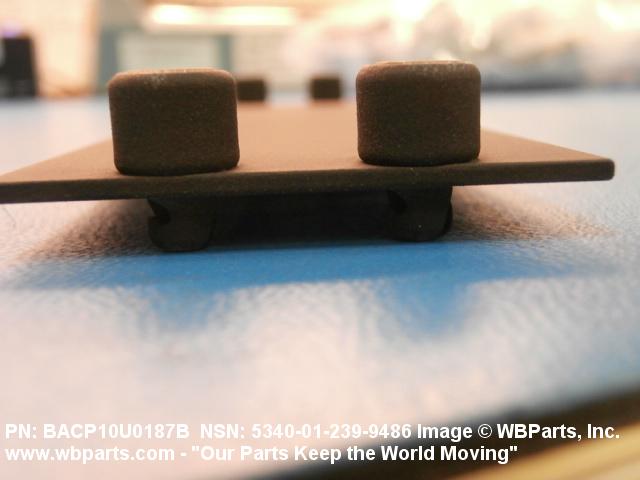

Drawings & Photos | NSN 5340-01-239-9486
Demand History | NSN 5340-01-239-9486
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-239-9486 | 2019-04-29 | 36 | US |
| 5340-01-239-9486 | 2018-12-16 | 34 | DIBBS |
| 5340-01-239-9486 | 2018-08-02 | 34 | DIBBS |
| 5340-01-239-9486 | 2018-07-15 | 21 | DIBBS |
| 5340-01-239-9486 | 2017-06-15 | 21 | DIBBS |
| 5340-01-239-9486 | 2015-11-10 | 22 | DIBBS |
| 5340-01-239-9486 | 2015-10-29 | 22 | DIBBS |
| 5340-01-239-9486 | 2015-09-04 | 22 | DIBBS |
| 5340-01-239-9486 | 2015-08-24 | 22 | DIBBS |
| BACP10U0187B | 2014-03-19 | 16 | United States |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-01-239-9486
Related Products | NSN 5340-01-239-9486
5340-01-239-9487, 5340-01-239-9551, 5340-01-239-9552, 5340-01-239-9553, 5340-01-239-9560
Technical Data | NSN 5340-01-239-9486
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | F1 BLANK, PLAIN DESIGN |

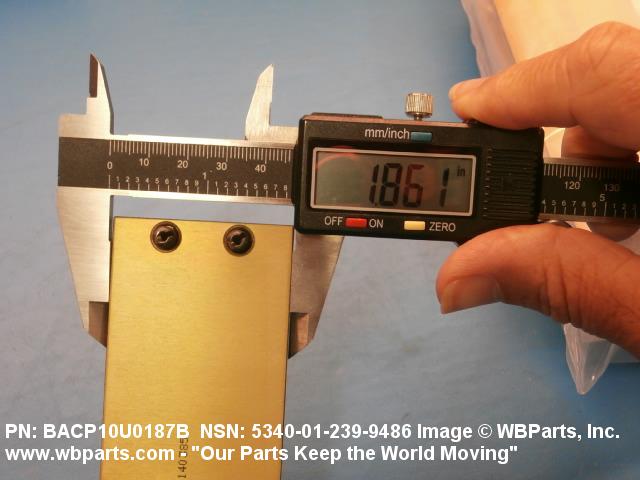

| OVERALL HEIGHT | 1.834 INCHES MINIMUM AND 1.875 INCHES MAXIMUM |

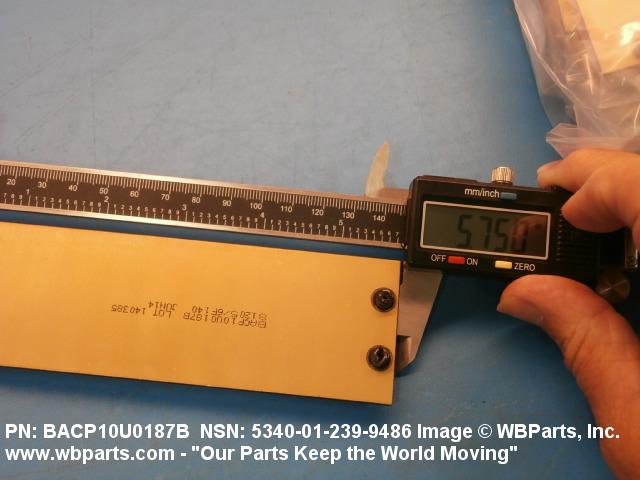

| OVERALL WIDTH | 5.730 INCHES MINIMUM AND 5.750 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.062 INCHES MINIMUM AND 0.066 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY 5052 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/8,H34 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ENAMEL OR ENAMEL GLOSS OR LACQUER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | TT-E-527 FED SPEC 1ST TREATMENT RESPONSE OR TT-E-489,CL B FED SPEC 2ND TREATMENT RESPONSE OR TT-L-20 FED SPEC 3RD TREATMENT RESPONSE |
| COLOR | BLACK, LUSTERLESS OR BLACK OR BLACK, FED STD 595, 37038 |

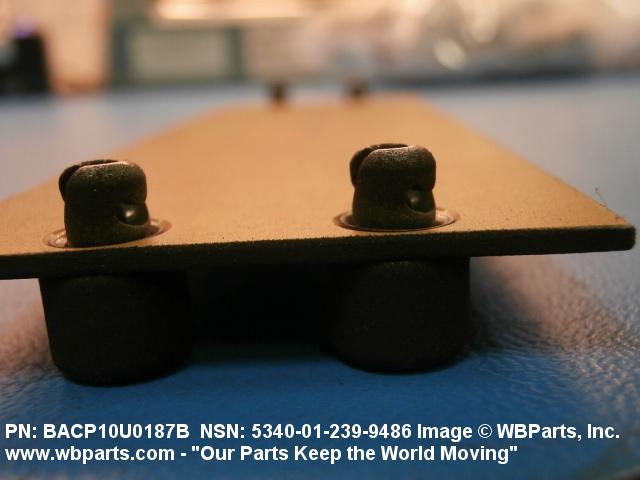

| MOUNTING PROVISION | TURNLOCK FASTENER |
Restrictions/Controls & Freight Information | NSN 5340-01-239-9486
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-239-9486
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
