Product Details | CORROSION PREVENTIVE ANODE
5340-01-239-9569 An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium.20253400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: SA-1069-D PIECE ZRN, SA1069DPIECEZRN, MILA18001, MIL-A-18001, 9ZR1004, 9ZR100-4, 338690390104, 3-386-9-03-901-04, 5340-01-239-9569, 01-239-9569, 5340012399569, 012399569
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 SEP 1986 | 01-239-9569 | 13154 ( ANODE, CORROSION PREVENTIVE ) |
Drawings & Photos | NSN 5340-01-239-9569
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5340-01-239-9569
5340-01-239-9571, 5340-01-239-9572, 5340-01-239-9610, 5340-01-239-9611, 5340-01-239-9633
Technical Data | NSN 5340-01-239-9569
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ZINC, MIL-A-18001 OVERALL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.500-14 NPT |
| THREAD DIRECTION | RIGHT-HAND |

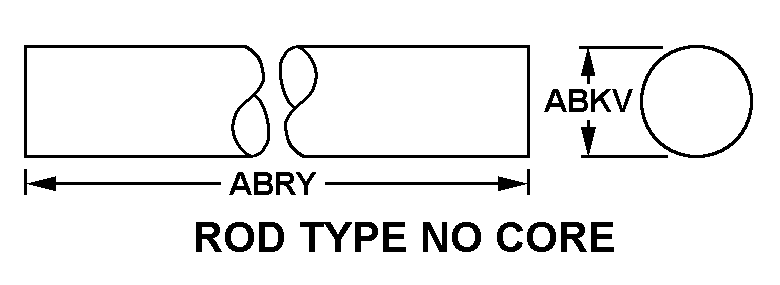

| STYLE DESIGNATOR | 25 ROD TYPE NO CORE |
| OUTSIDE DIAMETER | 0.840 INCHES NOMINAL |
| LENGTH | 36.000 INCHES NOMINAL |
| MOUNTING METHOD | THREADED END |
| CONSTRUCTION | SOLID |
| WEIGHT | 5.0 POUNDS |
| NONDEFINITIVE SPEC/STD DATA | 2 CLASS AND ZRN TYPE |
| III SUPPLEMENTARY FEATURES | MIL-C-15730,CLASS 2,COOLERS,FLUID,SHIPBOARD,LUBRICA TING OIL,HYDRAULIC OIL AND WATER |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-A-18001 |
| MANUFACTURERS CODE | 51900 |
| DESIGN CONTROL REFERENCE | 3-386-9-03-901-04 |
Restrictions/Controls & Freight Information | NSN 5340-01-239-9569
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
