NSN 5340-01-260-8188 24395311, 2439531-1, 27692654
Product Details | HAND CRANK
5340-01-260-8188 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.20229900045Miscellaneous Engine Accessories, Nonaircraft53400020Hardware, Commercial
Part Alternates: 24395311, 2439531-1, 27692654, 2769265-4, 5340-01-260-8188, 01-260-8188, 5340012608188, 012608188
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 AUG 1987 | 01-260-8188 | 17533 ( CRANK, HAND ) |
Drawings & Photos | NSN 5340-01-260-8188
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-260-8188
Related Products | NSN 5340-01-260-8188
Technical Data | NSN 5340-01-260-8188
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, AMS 5643 OVERALL |
| SURFACE TREATMENT AND LOCATION | PASSIVATED W/BLACK OXIDE OVERALL |
| ARM STYLE | 7 STRAIGHT |
| CRANK THROW LENGTH | 0.805 INCHES MINIMUM AND 0.815 INCHES MAXIMUM |
| DRIVE END STYLE | 107 EXTERNAL |
| DRIVE END OUTSIDE DIAMETER | 0.182 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| SHANK HEIGHT | 0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |

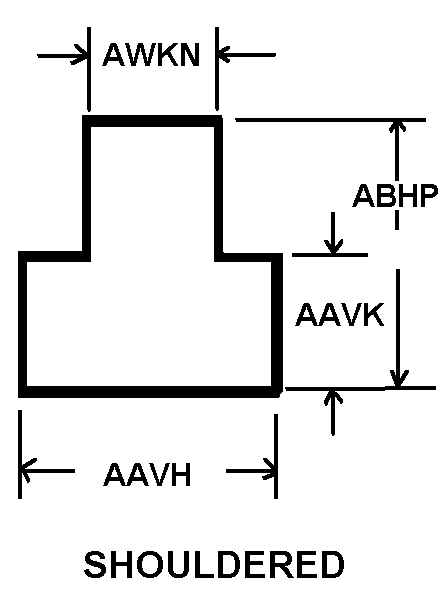

| DRIVE FACILITY STYLE | 167 SHOULDERED |
| SHOULDER DIAMETER | 0.872 INCHES NOMINAL |
| SHOULDER LENGTH | 0.379 INCHES NOMINAL |
| OVERALL LENGTH | 0.104 INCHES MINIMUM AND 0.108 INCHES MAXIMUM |
| DRIVE FACILITY OUTSIDE DIAMETER | 0.260 INCHES NOMINAL |
| CRANK OVERALL LENGTH | 1.047 INCHES MINIMUM AND 1.052 INCHES MAXIMUM |
| MOUNTING FACILITY | UNTHREADED MOUNTING HOLES |
| MOUNTING FACILITY DIAMETER | 0.260 INCHES NOMINAL |
| HANDLE MOUNTING METHOD | THREAD |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
| SPECIAL FEATURES | MTG HOLE 0.089 DIA X 0.42 DP CSK 90 DEG X 0.12 DIA,0.112-40 UNC-2B X 0.25 DP |
| MANUFACTURERS CODE | 96214 |
| DESIGN CONTROL REFERENCE | 2769265-4 |
