NSN 5340-01-269-7645 TL802GSS, 16103060-1, 1395AS975

Product Details | CLAMPING CATCH

5340-01-269-7645 A positive fastening device consisting of a mountable base with an extended loop, claw, or the like. It may include a catch strike and mounting hardware for its complete installation on flat surfaces. The loop, claw, or the like can be manually engaged or disengaged readily for the purpose of securing the mating sections of a suitcase, locker-trunk, shipping and storage container, prefabricated building, tool chest or the like. Excludes CATCH, ELBOW; CATCH, FLUSH; CATCH, FRICTION; and LATCH or LOCK (as modified).

Part Alternates: TL802GSS, 16103060-1, 1395AS975, 78827SS, 7882-7-SS, 78827SSPAS, 7882-7SS-PAS , 5340-01-269-7645, 01-269-7645, 5340012697645, 012697645, 161030601

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	21 DEC 1987	01-269-7645	26525 ( CATCH, CLAMPING )

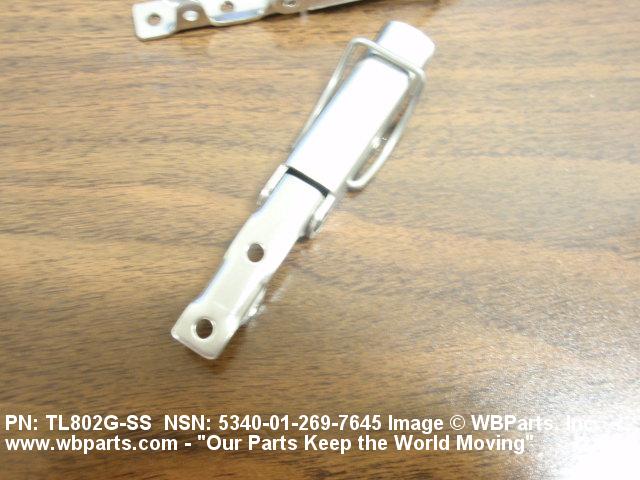

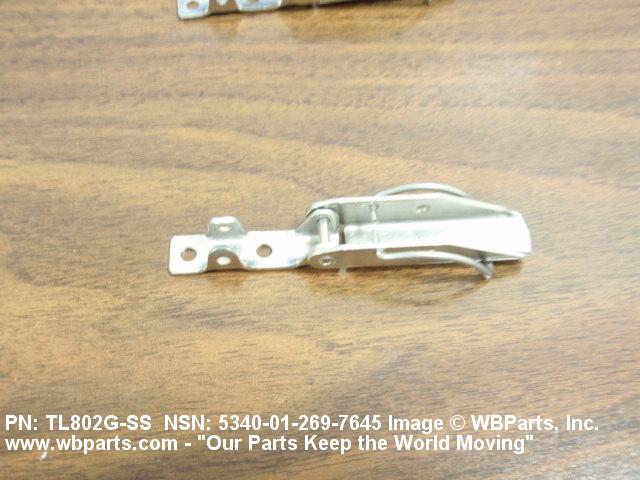

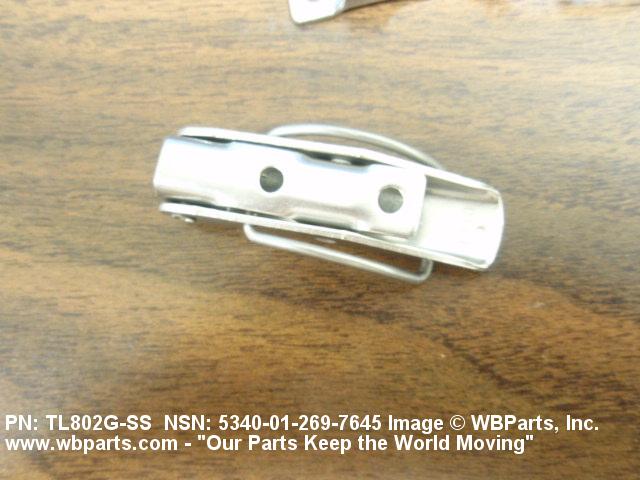

Drawings & Photos | NSN 5340-01-269-7645

Part Number	Request Date	QTY	Origin
7882-7SS-PAS	2025-07-198	1126	DIBBS
7882-7SS-PAS	2024-08-214	844	DIBBS
7882-7SS-PAS	2022-08-216	873	DIBBS
7882-7SS-PAS	2021-02-46	487	DIBBS
5340-01-269-7645	2015-04-120	1300	DIBBS
5340-01-269-7645	2015-02-49	300	DIBBS
5340-01-269-7645	2014-10-294	99	DIBBS
5340-01-269-7645	2014-09-259	3	DIBBS
5340-01-269-7645	2012-02-40	4	DIBBS
5340-01-269-7645	2012-01-09	669	DIBBS
TL802GSS	2011-01-19	300	United States
TL802GSS	2010-08-222	300	United States
78827SS	2010-07-208	300	United States
5340-01-269-7645	2010-02-36	1084	DIBBS
78827SS	2009-04-118	300	United States
5340-01-269-7645	2009-04-113	521	DIBBS
5340-01-269-7645	2009-04-96	515	DIBBS
5340-01-269-7645	2008-05-126	153	DIBBS

Cross Reference | NSN 5340-01-269-7645

Part Number	Cage Code	Manufacturer
1395AS975	30003	NAVAL AIR SYSTEMS COMMAND
16103060-1	13160	GENERAL DYNAMICS LAND SYSTEMS INC. DBA WOODBRIDGE TECHNICAL CENTER
7882-7-SS	72794	SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
7882-7SS-PAS	72794	SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
TL802GSS	72794	SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-269-7645

Compare

Related Products | NSN 5340-01-269-7645

5340-01-269-7646, 5340-01-269-7648, 5340-01-269-7670, 5340-01-269-7692, 5340-01-269-7702

Technical Data | NSN 5340-01-269-7645

Characteristic	Specifications
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-STD-171,FINISH 5.4.1 MIL STD SINGLE TREATMENT RESPONSE OVERALL
HOLE DIAMETER	0.141 INCHES MINIMUM AND 0.193 INCHES MAXIMUM
ENGAGING SURFACE WIDTH	0.720 INCHES NOMINAL
ENGAGING SURFACE THICKNESS	0.080 INCHES NOMINAL
HOLE QUANTITY	2
OVERALL LENGTH	3.030 INCHES NOMINAL
OVERALL WIDTH	0.850 INCHES MINIMUM AND 0.910 INCHES MAXIMUM
OVERALL HEIGHT	0.500 INCHES MINIMUM AND 0.530 INCHES MAXIMUM
DESIGN TYPE	LOOP ENGAGING

Restrictions/Controls & Freight Information | NSN 5340-01-269-7645

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093880	CATCHES/LATCHES METAL NOI
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-01-269-7645

Army
Navy

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
