NSN 5340-01-281-3914 5598238-19, 55982389, 5598238-9
Product Details | MOUNTING BRACKET
5340-01-281-3914 A bracket of various shapes (other than angle), designed to be attached to a supporting surface for the specific purpose of positioning, aligning and/or supporting another item. Excludes BRACE (as modified); BRACKET, ANGLE; and BRACKET, DOUBLE ANGLE. See also BRACKET (1), ELECTRICAL CONNECTOR; BRACKET, FIRE EXTINGUISHER; BRACKET, SOLENOID; BRACKET, TRACK, SLIDING DOOR; and RETAINER (as modified).20510050018Guns, through 30mm10100026Guns, over 30mm up to 75mm1420000053400020Hardware, Commercial
Part Alternates: 5598238-19, 55982389, 5598238-9, 5340-01-281-3914, 01-281-3914, 5340012813914, 559823819, 012813914
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1988 | 01-281-3914 | 38089 ( BRACKET, MOUNTING ) |

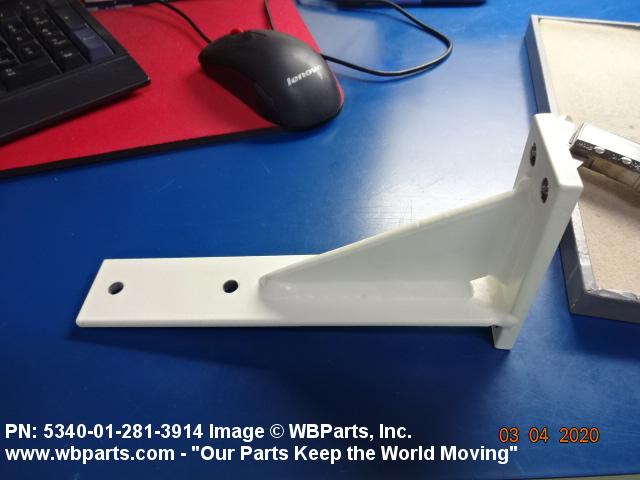

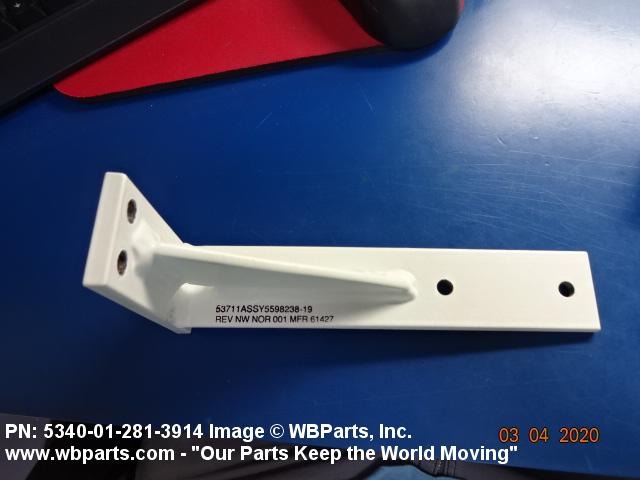

Drawings & Photos | NSN 5340-01-281-3914
Demand History | NSN 5340-01-281-3914
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5598238-19 | 2023-09-260 | 2 | DIBBS |
| 5340-01-281-3914 | 2020-02-58 | 1 | United States |
| 5340-01-281-3914 | 2020-02-41 | 1 | United States |
| 5340-01-281-3914 | 2015-08-233 | 2 | DIBBS |
| 5340-01-281-3914 | 2015-08-221 | 2 | DIBBS |
| 5340-01-281-3914 | 2014-07-212 | 1 | DIBBS |
| 5340-01-281-3914 | 2014-07-201 | 1 | DIBBS |
| 5340-01-281-3914 | 2014-07-188 | 1 | DIBBS |
| 5340-01-281-3914 | 2014-06-170 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-281-3914
Technical Data | NSN 5340-01-281-3914
| Characteristic | Specifications |
|---|---|

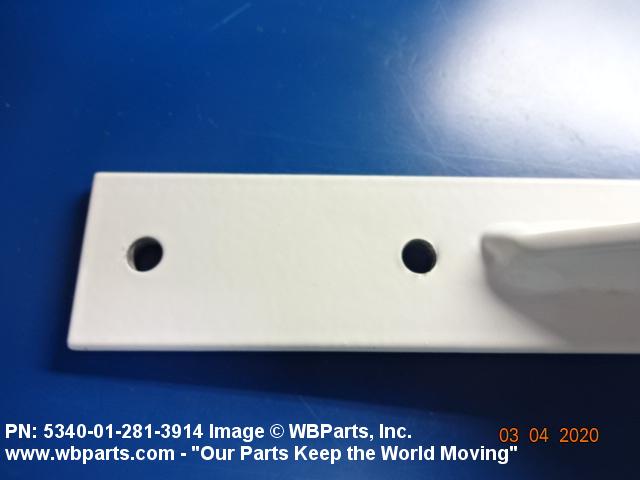

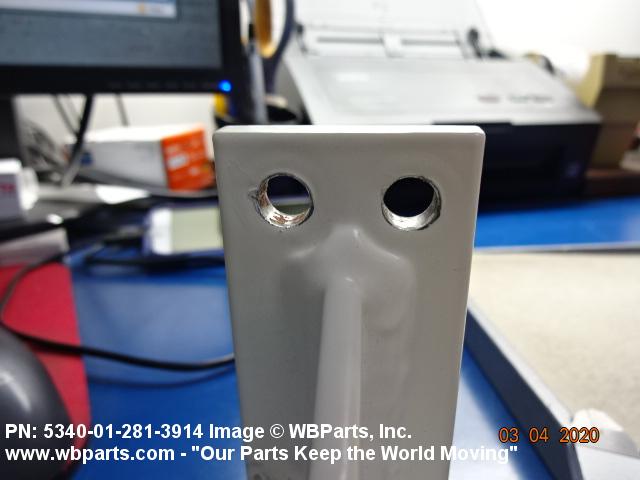

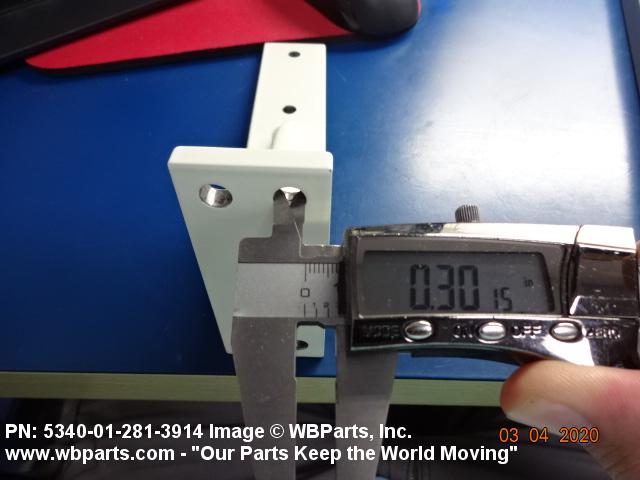

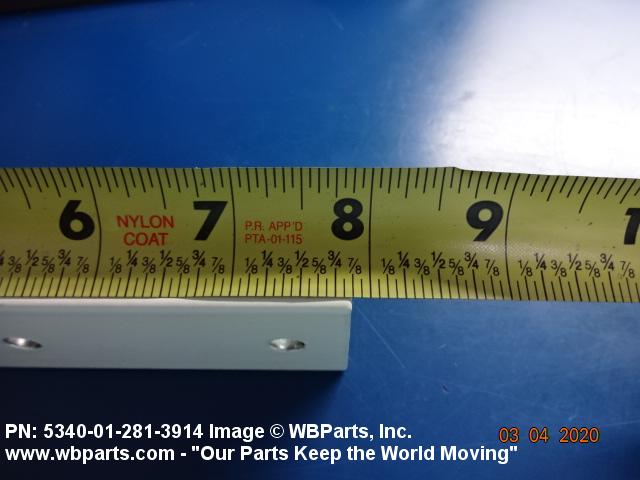

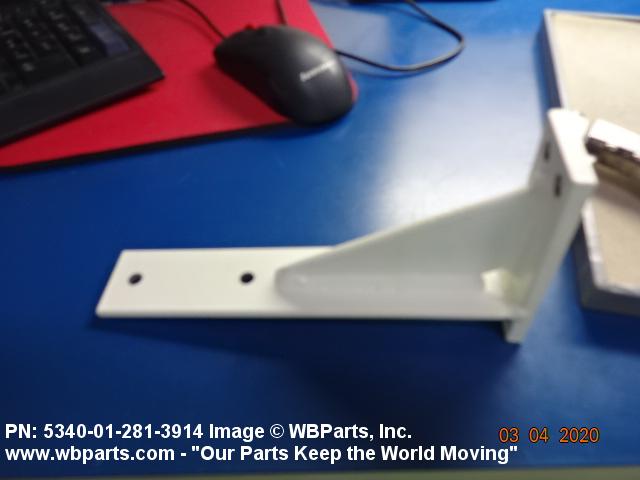

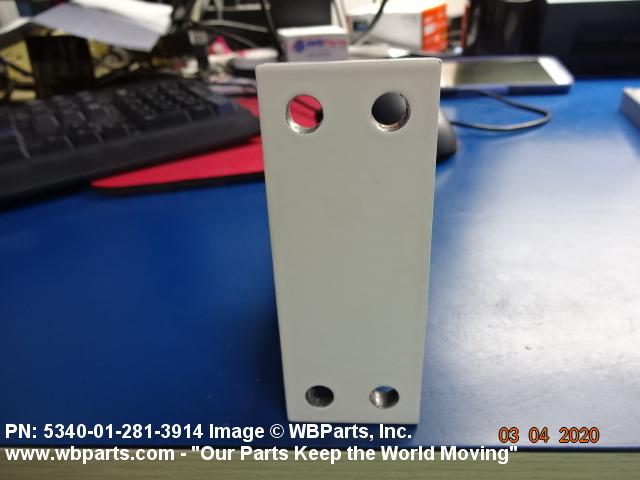

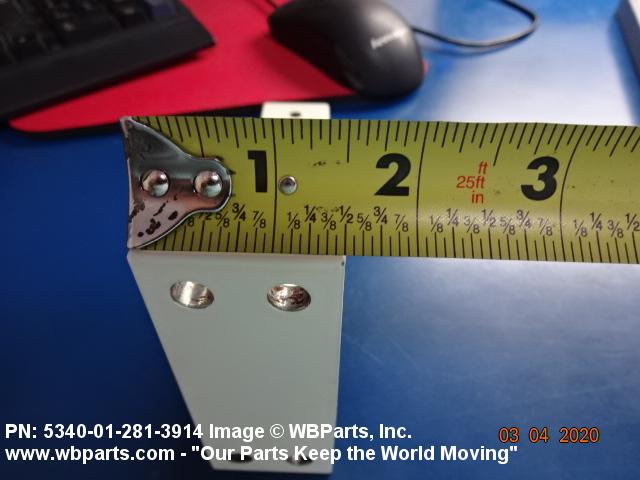

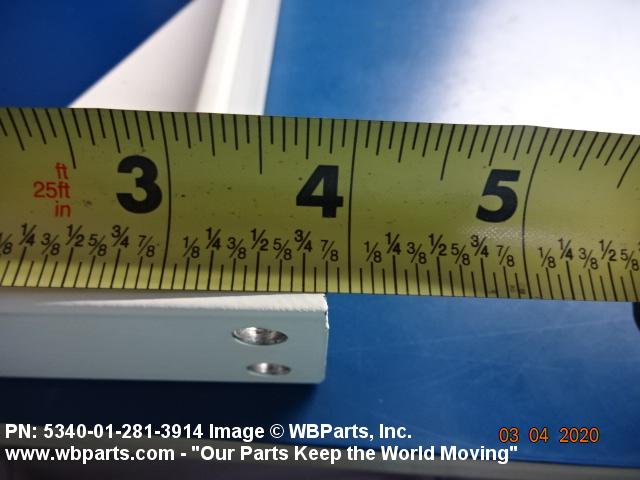

| SPECIAL FEATURES | PAINT FINISH,WS19201 GROUP A,NAVAL SEA SYSTEMS COMMAND; 7.810 IN. LG; 1.500 IN. W; 3.870 IN. H; FOUR MTG HOLES 0.306 IN. MIN 0.313 IN. MAX DIA; TWO MTG HOLES 0.280 IN. MIN 0.287 IN. MAX DIA; ONE GUSSET REINFORCEMENT |
Restrictions/Controls & Freight Information | NSN 5340-01-281-3914
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-281-3914
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
