NSN 5340-01-293-1178 ST4M1380444, ST4M138-04-44, 10154139
Product Details | SPACING THREADED STANDOFF
5340-01-293-1178 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: ST4M1380444, ST4M138-04-44, 10154139 , 5340-01-293-1178, 01-293-1178, 5340012931178, 012931178
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 JAN 1989 | 01-293-1178 | 40280 ( STANDOFF, THREADED, SPACING ) |

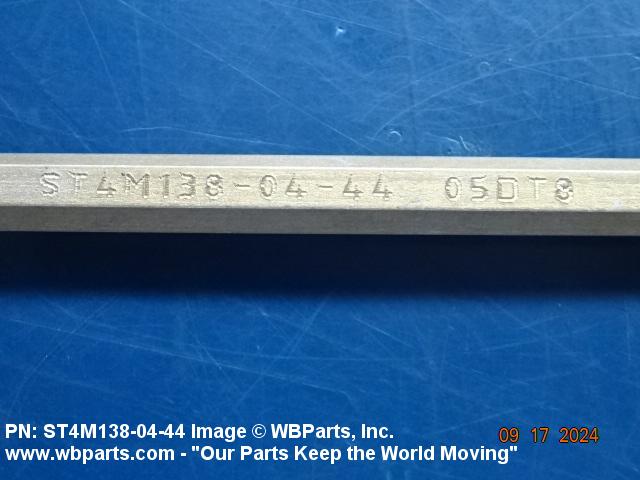

Drawings & Photos | NSN 5340-01-293-1178
Demand History | NSN 5340-01-293-1178
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST4M138-04-44 | 2025-01-15 | 176 | DIBBS |
| ST4M138-04-44 | 2024-09-261 | 144 | DIBBS |
| ST4M138-04-44 | 2024-08-226 | 88 | DIBBS |
| 5340-01-293-1178 | 2024-08-220 | 68 | United States |
| ST4M138-04-44 | 2024-07-211 | 68 | DIBBS |
| 5340-01-293-1178 | 2015-07-194 | 32 | DIBBS |
| 5340-01-293-1178 | 2015-07-182 | 32 | DIBBS |
| 5340-01-293-1178 | 2014-05-141 | 56 | DIBBS |
| 5340-01-293-1178 | 2014-04-120 | 56 | DIBBS |
| 5340-01-293-1178 | 2012-12-364 | 6 | DIBBS |
| 5340-01-293-1178 | 2012-10-275 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-293-1178
Technical Data | NSN 5340-01-293-1178
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE | HEXAGON |
| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | 8 LEFT INTERNAL AND RIGHT INTERNAL THREADS |
| LENGTH | 4.390 INCHES MINIMUM AND 4.410 INCHES MAXIMUM |
| SPECIAL FEATURES | TWO HELICAL COIL INSERTS REQUIRED P/N MS21209C0420 |
| (NON-CORE DATA) FIRST INTERNAL THREAD LENGTH | 0.205 INCHES MINIMUM |
| (NON-CORE DATA) SECOND INTERNAL THREAD LENGTH | 0.205 INCHES MINIMUM |
| (NON-CORE DATA) FIRST INTERNAL THREAD CHARACTERISTICS | 0.112-40 UNC 2B |
| (NON-CORE DATA) SECOND INTERNAL THREAD CHARACTERISTICS | 0.112-40 UNC 2B |
| (NON-CORE DATA) MATERIAL | ALUMINUM ALLOY, QQ-A-268, ALLOY 2024-CANCELED |
| (NON-CORE DATA) SURFACE TREATMENT | ANODIZED, MIL-A-8625, TYPE 2 OR CHROMATE, MIL-C-5541 |
Restrictions/Controls & Freight Information | NSN 5340-01-293-1178
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-293-1178
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
