NSN 5340-01-312-0816 32274, 322-74, 01-312-0816
Product Details | BUCKLE
5340-01-312-0816 A fastening device used to join two ends of a belt, strap or the like. It may be a single unit designed to be attached to one end of a belt or strap and secure the opposite end by penetration, by clamping, or by friction, or it may consist of male and female sections having one section attached at each end of the belt or strap and joins the two ends by a hook-like or other interlocking action.20253400020Hardware, Commercial83150028Notions and Apparel Findings
Part Alternates: 32274, 322-74, 5340-01-312-0816, 01-312-0816, 5340013120816, 013120816
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 DEC 1989 | 01-312-0816 | 17223 ( BUCKLE ) |
Drawings & Photos | NSN 5340-01-312-0816
Demand History | NSN 5340-01-312-0816
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-312-0816 | 2018-05-135 | 157 | DIBBS |
| 5340-01-312-0816 | 2014-11-317 | 117 | DIBBS |
| 5340-01-312-0816 | 2014-11-306 | 117 | DIBBS |
| 5340-01-312-0816 | 2014-06-168 | 103 | DIBBS |
| 5340-01-312-0816 | 2014-06-156 | 103 | DIBBS |
Cross Reference | NSN 5340-01-312-0816
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 322-74 | 53655 | AVOX SYSTEMS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-312-0816
Related Products | NSN 5340-01-312-0816
Technical Data | NSN 5340-01-312-0816
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATED, MIL-STD-171, FINISH 5.4.1 |
| ENAMELED FEATURE | NOT INCLUDED |

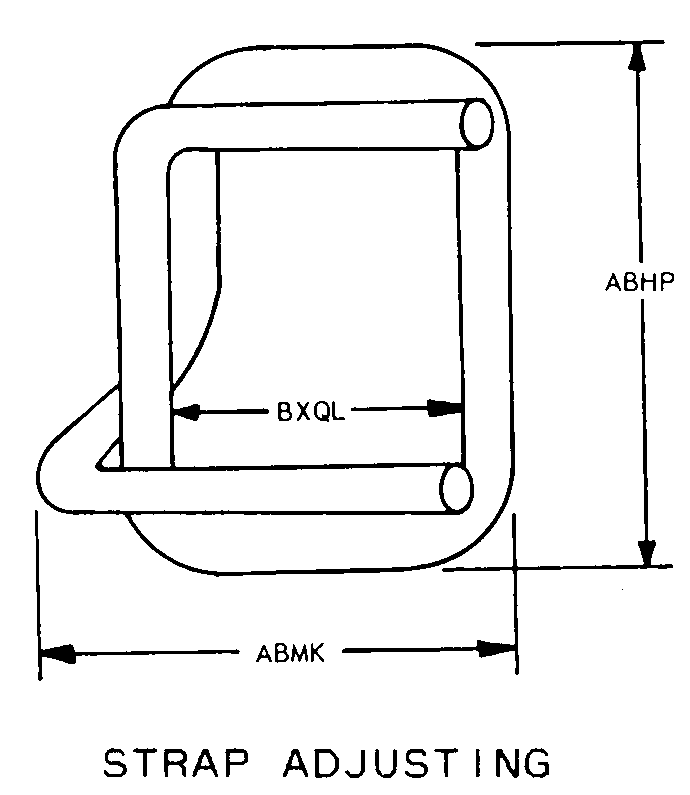

| BUCKLE STYLE DESIGNATOR | B53 STRAP ADJUSTING |
| OVERALL LENGTH | 1.020 INCHES NOMINAL |
| OVERALL WIDTH | 0.820 INCHES NOMINAL |
| STRAP ACCOMMODATION WIDTH | 0.105 INCHES NOMINAL |
| SPECIFIC USAGE DESIGN | ANTI-SMOKE GOGGLES |
| INSIGNIA | NOT INCLUDED |
| MANUFACTURERS CODE | 53655 |
| DESIGN CONTROL REFERENCE | 322-74 |
Restrictions/Controls & Freight Information | NSN 5340-01-312-0816
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094570 | FASTENERS/HOOKS/LACINGS BELT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-312-0816
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | MH | TG:LIFE SUPPORT SYSTEM 412A |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
