NSN 5340-01-329-9824 3677083, 367708-3, 01-329-9824
Product Details | ACCESS COVER
5340-01-329-9824 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 3677083, 367708-3, 5340-01-329-9824, 01-329-9824, 5340013299824, 013299824
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 NOV 1990 | 01-329-9824 | 29785 ( COVER, ACCESS ) |

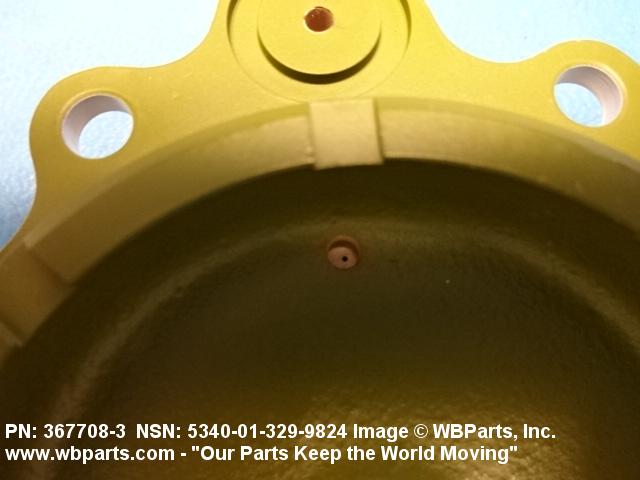

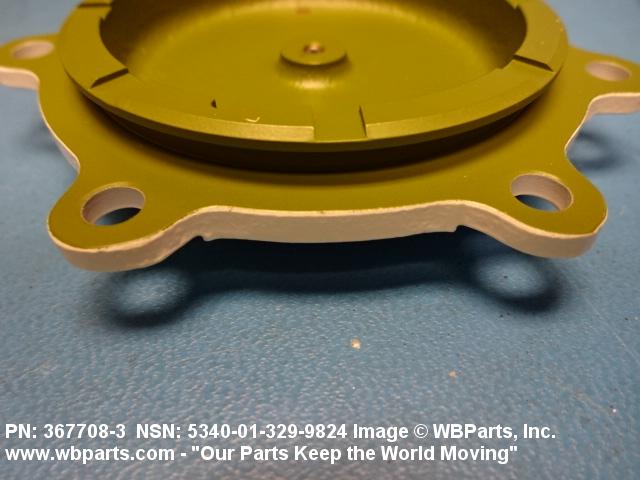

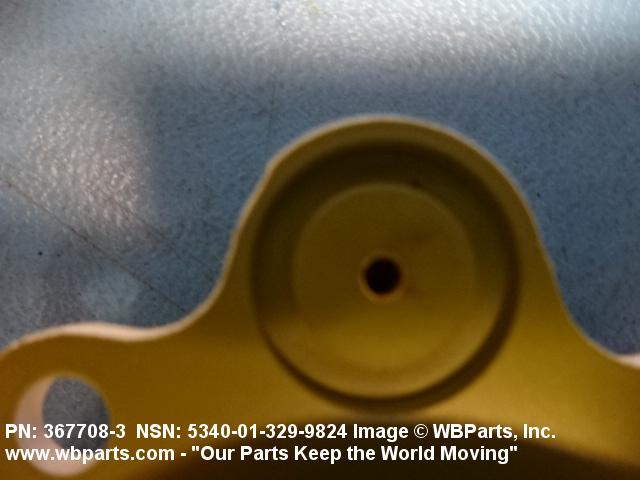

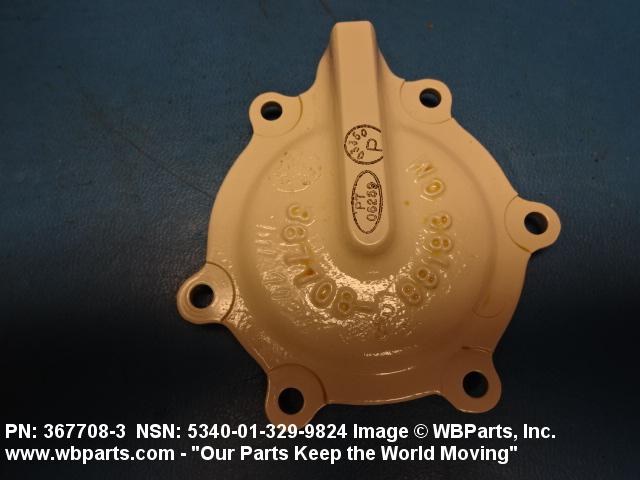

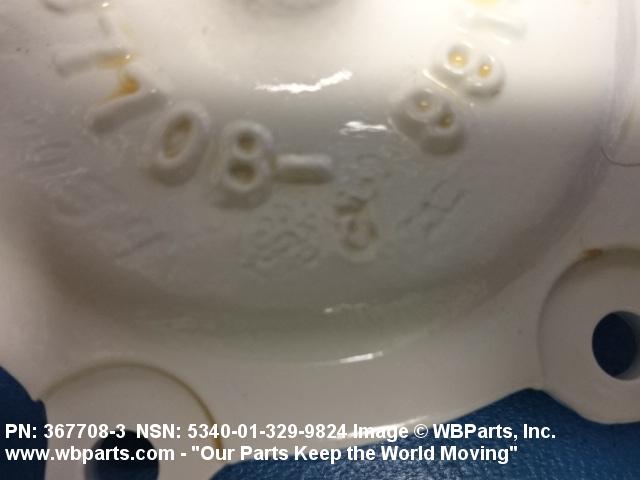

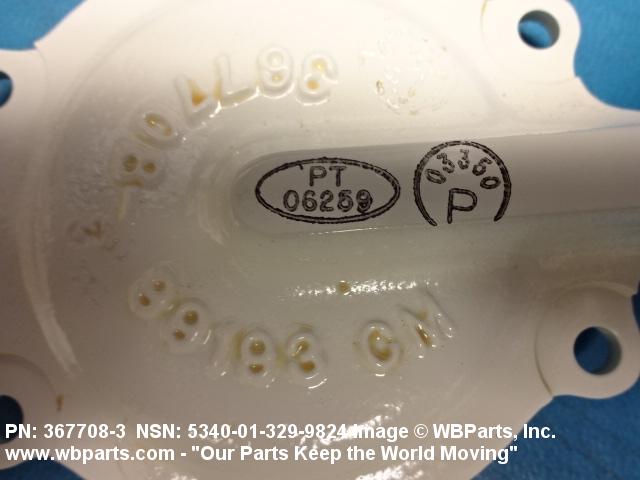

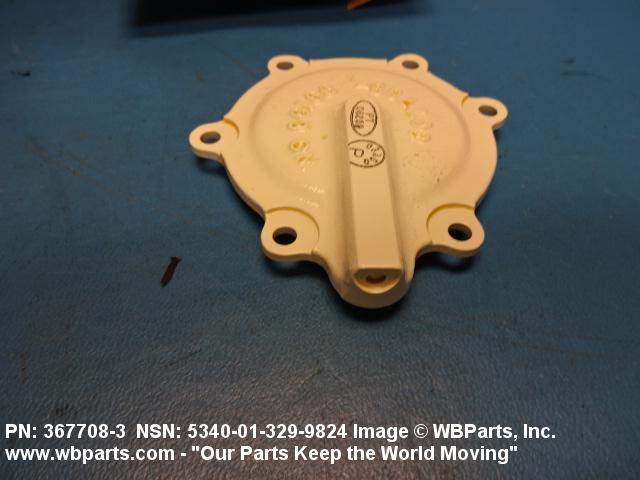

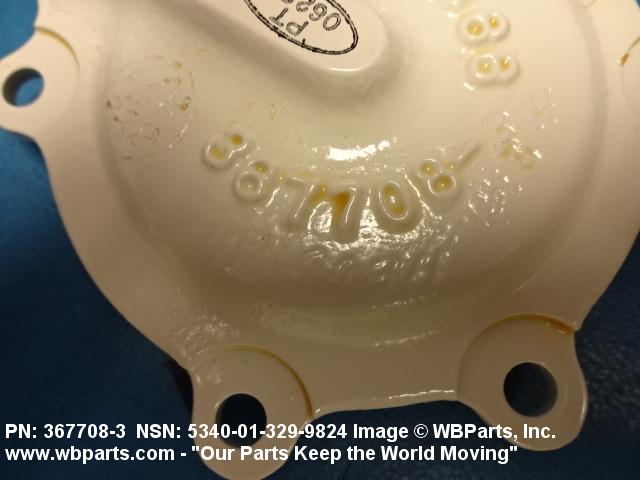

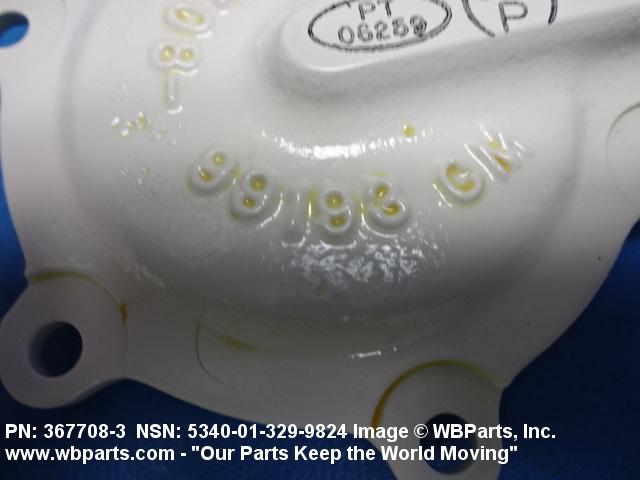

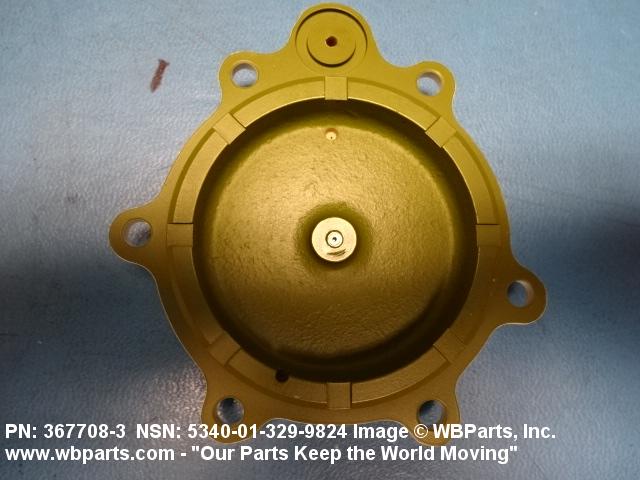

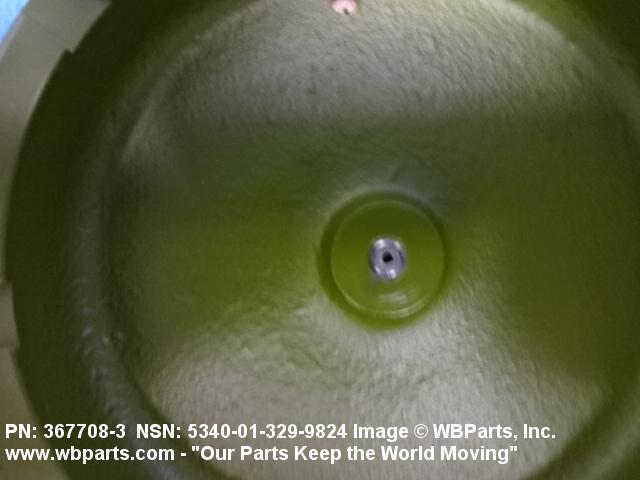

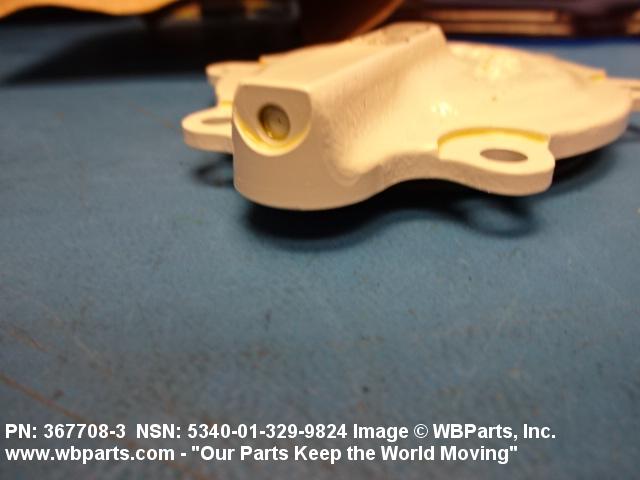

Drawings & Photos | NSN 5340-01-329-9824
Demand History | NSN 5340-01-329-9824
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 367708-3 | 2025-03-90 | 3 | DIBBS |
| 367708-3 | 2025-03-82 | 3 | DIBBS |
| 5340-01-329-9824 | 2024-02-50 | 1 | DIBBS |
| 367708-3 | 2022-09-265 | 8 | DIBBS |
| 367708-3 | 2022-09-254 | 8 | DIBBS |
| 367708-3 | 2022-06-164 | 2 | DIBBS |
| 367708-3 | 2022-05-128 | 2 | DIBBS |
| 367708-3 | 2021-02-39 | 6 | DIBBS |
| 5340-01-329-9824 | 2019-01-22 | 2 | United States |
| 5340-01-329-9824 | 2018-12-359 | 2 | DIBBS |
| 5340-01-329-9824 | 2018-12-347 | 3 | United States |
| 5340-01-329-9824 | 2018-09-249 | 3 | DIBBS |
| 5340-01-329-9824 | 2018-08-238 | 5 | DIBBS |
| 5340-01-329-9824 | 2017-03-86 | 3 | DIBBS |
| 5340-01-329-9824 | 2015-11-314 | 5 | DIBBS |
| 5340-01-329-9824 | 2015-10-302 | 5 | DIBBS |
| 5340-01-329-9824 | 2015-08-223 | 5 | DIBBS |
| 5340-01-329-9824 | 2015-07-210 | 5 | DIBBS |
Cross Reference | NSN 5340-01-329-9824
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 367708-3 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-329-9824
Technical Data | NSN 5340-01-329-9824
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 61 ROUND, MULTIEARS AND HOLES |
| BOLT CIRCLE DIAMETER | 2.930 INCHES NOMINAL |
| BODY RADIUS | 3.187 INCHES NOMINAL |
| INVERTED RADIUS | 0.225 INCHES NOMINAL |
| EAR RADIUS | 0.020 INCHES NOMINAL |
| EAR QUANTITY | 6 |
| BOLT CIRCLE HOLE QUANTITY | 6 |
| CROSS-SECTIONAL SHAPE STYLE | 26 FLAT |
| BODY THICKNESS | 0.729 INCHES NOMINAL |
| MATERIAL | MAGNESIUM ALLOY AZ91C |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-M-56 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SECURING DEVICE TYPE | SPECIAL |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.222 INCHES NOMINAL |
| END ITEM IDENTIFICATION | P/N 367720-1;F15/A/B/C/D/F |
| FSC APPLICATION DATA | BEARING POWER CONTROL |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 367708-3 |
Restrictions/Controls & Freight Information | NSN 5340-01-329-9824
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133320 | MACHINERY PARTS OIL/FUEL FILTER |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-329-9824
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
