NSN 5340-01-334-9302 5-345-213PGSCNCZERKAXLE0.845X2.-, 5345213PGSCNCZERKAXLE0845X2, 01-334-9302
Product Details | SWIVEL CASTER
5340-01-334-9302 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: 5-345-213PGSCNCZERKAXLE0.845X2.-, 5345213PGSCNCZERKAXLE0845X2, 5340-01-334-9302, 01-334-9302, 5340013349302, 013349302
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 MAR 1991 | 01-334-9302 | 06188 ( CASTER, SWIVEL ) |
Drawings & Photos | NSN 5340-01-334-9302
Cross Reference | NSN 5340-01-334-9302
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5-345-213PGSCNCZERKAXLE0.845X2.- | 31767 | STANDEX INTL CORP JARVIS AND JARVIS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-334-9302
Technical Data | NSN 5340-01-334-9302
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | PLASTIC, POLYURETHANE TIRE |
| STYLE DESIGNATOR | 6 SWIVEL OFFSET |
| WHEEL DIAMETER | 5.000 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 6.250 INCHES NOMINAL |

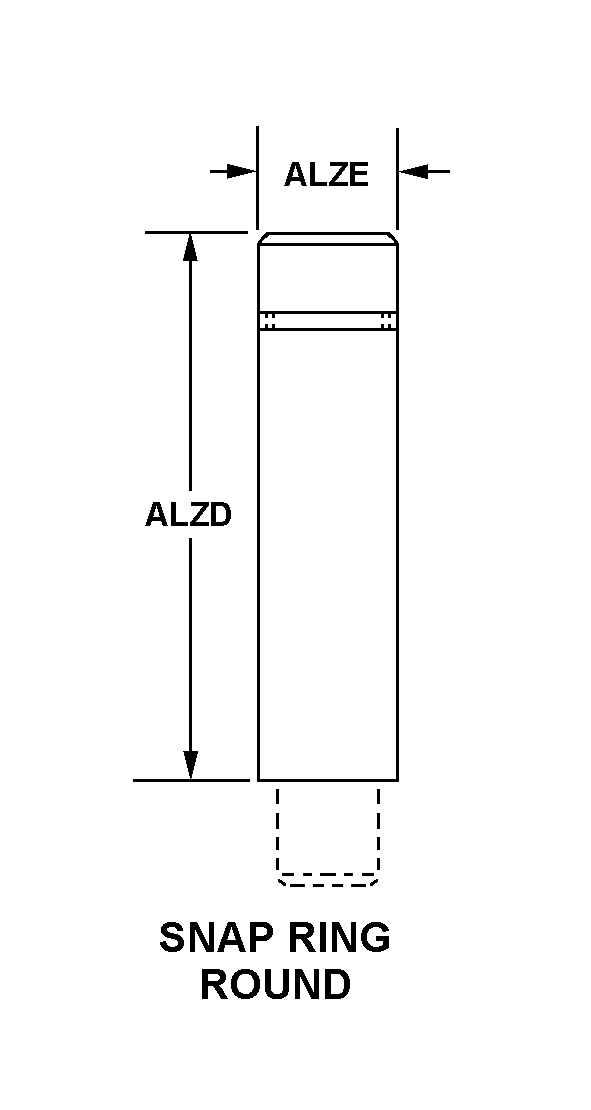

| STEM STYLE | 16 SNAP RING ROUND |
| STEM LENGTH | 2.188 INCHES NOMINAL |
| STEM DIAMETER | 0.845 INCHES NOMINAL |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | BALL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY EXTRA LONG REFERENCE NUMBER |
| EXTRA LONG REFERENCE NUMBER | 5-345-213PGSCNCZERKAXLE0.845X2.18 7STEM |
| MANUFACTURERS CODE | 31767 |
| DESIGN CONTROL REFERENCE | 5-345-213PGSCNCZERKAXLE0.845X2.- |
Restrictions/Controls & Freight Information | NSN 5340-01-334-9302
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
