NSN 5340-01-351-9545 M24749A, M24749-A, MILS24749
Product Details | SPACING THREADED STANDOFF
5340-01-351-9545 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: M24749A, M24749-A, MILS24749, MIL-S-24749, 5340-01-351-9545, 01-351-9545, 5340013519545, 013519545
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 JAN 1992 | 01-351-9545 | 40280 ( STANDOFF, THREADED, SPACING ) |
Drawings & Photos | NSN 5340-01-351-9545
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-351-9545
Technical Data | NSN 5340-01-351-9545
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE | ROUND |
| DIAMETER | 19.050 MILLIMETERS NOMINAL |

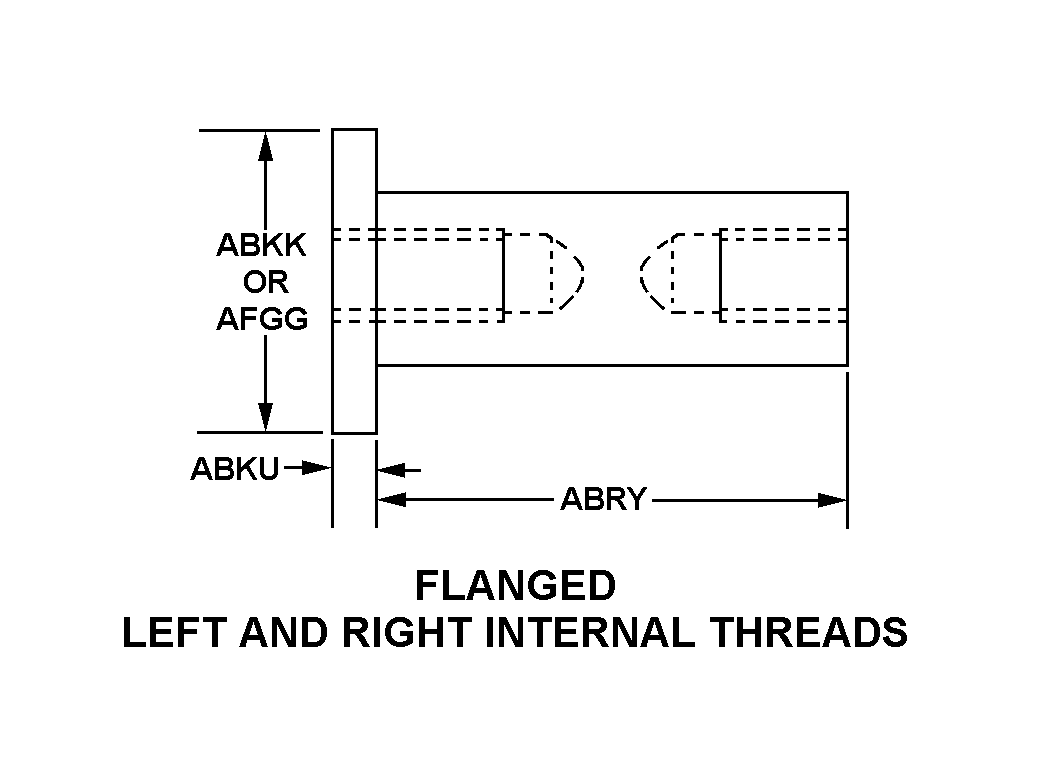

| STYLE DESIGNATOR | 26 FLANGED LEFT AND RIGHT INTERNAL THREADS |
