NSN 5340-01-369-1866 3759811R, 375981-1R, 01-369-1866
Product Details | STRAP HINGE
5340-01-369-1866 A hinge whose leaves are greater in dimension transversely to the axis of the hinge pin than they are parallel to the axis of the hinge pin, and whose sides may or may not be tapered along their greatest dimension, from the hinge pin toward a point at their extremity.
Part Alternates: 3759811R, 375981-1R, 5340-01-369-1866, 01-369-1866, 5340013691866, 013691866
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 DEC 1992 | 01-369-1866 | 06915 ( HINGE, STRAP ) |

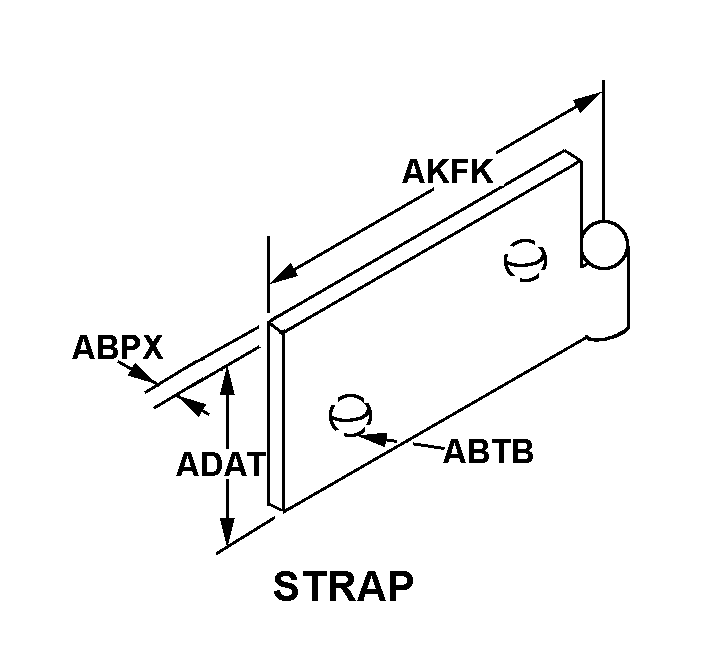

Drawings & Photos | NSN 5340-01-369-1866
Cross Reference | NSN 5340-01-369-1866
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 375981-1R | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-369-1866
Technical Data | NSN 5340-01-369-1866
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, MIL-S-18728, COND N OVERALL |
| STYLE DESIGNATOR | 57A STRAP |
| MATERIAL THICKNESS | 0.190 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.191 INCHES MINIMUM AND 0.197 INCHES MAXIMUM |
| BODY WIDTH | 2.040 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 8.080 INCHES NOMINAL |
| REVERSIBLE FEATURE | NOT INCLUDED |
| KNUCKLE TYPE | ANY ACCEPTABLE |
| MOUNTING HOLE QUANTITY | 14 |
| PERFORMANCE TYPE | NOT RATED |
| SPECIAL FEATURES | .313-.320 IN DIA 5 MTG HOLES AND .250-.257 IN DIA 5 MTG HOLES; HEAT TREAT 160,000-180,000 VLT TS PSI; P/N -1R IS THE OPPOSITE OF -1L; NO PIN HOLE INLCLUDED; CHAM .10 X 45 DEGREES |
| III END ITEM IDENTIFICATION | USED AS A REINFORCEMENT,AFT CARGO DOOR,OUTBOARD |
