NSN 5340-01-387-5450 5064T74P02, 01-387-5450, 013875450
Product Details | ROD END CONNECTOR
5340-01-387-5450 An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION.
Part Alternates: 5064T74P02, 5340-01-387-5450, 01-387-5450, 5340013875450, 013875450
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 MAR 1994 | 01-387-5450 | 03439 ( CONNECTOR, ROD END ) |

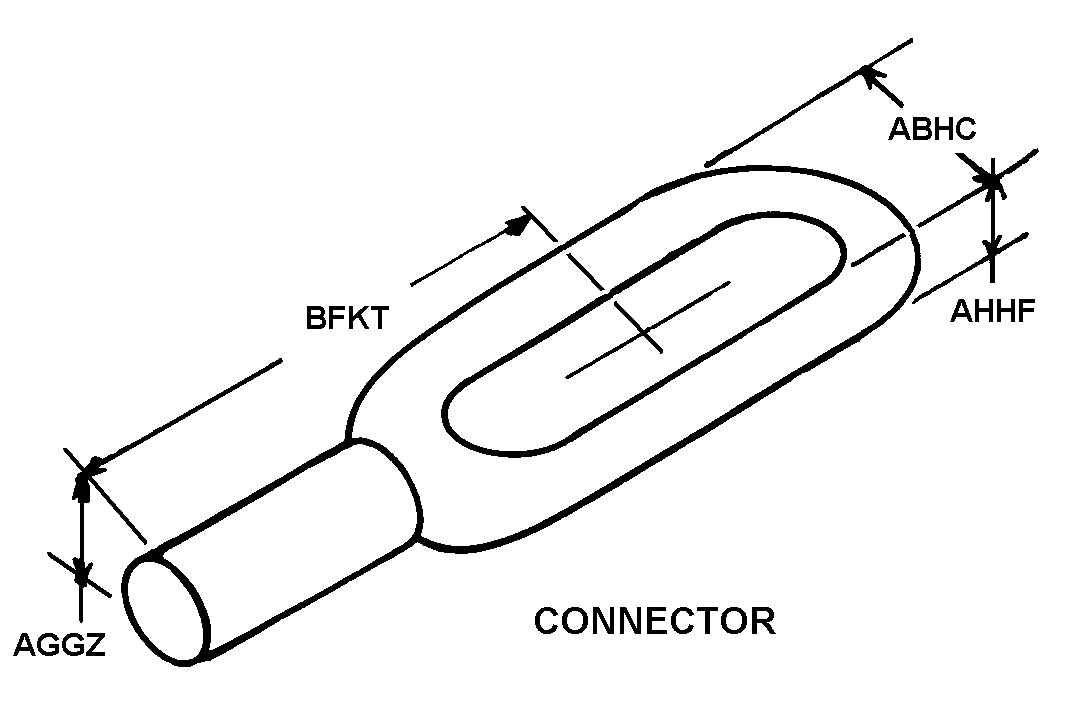

Drawings & Photos | NSN 5340-01-387-5450
Demand History | NSN 5340-01-387-5450
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-387-5450 | 2009-07-210 | 10 | DIBBS |
Cross Reference | NSN 5340-01-387-5450
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5064T74P02 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-387-5450
Related Products | NSN 5340-01-387-5450
Technical Data | NSN 5340-01-387-5450
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF BODY |
| NOMINAL THREAD SIZE | 0.500 INCHES BODY |
| THREAD QUANTITY PER INCH | 20 BODY |
| THREAD CLASS | 3A BODY |
| STYLE DESIGNATOR | 74 CONNECTOR |
| SHANK OUTSIDE DIAMETER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| DISTANCE FROM END TO HOLE CENTER | 3.330 INCHES MINIMUM AND 3.350 INCHES MAXIMUM |
| HOLE SHAPE | SLOTTED |
| SLOT WIDTH | 0.375 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| SLOT LENGTH | 0.696 INCHES MINIMUM AND 0.706 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | F404 ENGINE |
| MANUFACTURERS CODE | 99207 |
| DESIGN CONTROL REFERENCE | 5064T74P02 |
Restrictions/Controls & Freight Information | NSN 5340-01-387-5450
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-387-5450
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | TN | JET ENGINES(F404) |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
