NSN 5340-01-390-5852 3113AS13091, 3113AS1309-1, 01-390-5852
Product Details | LOOP CLAMP
5340-01-390-5852 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: 3113AS13091, 3113AS1309-1, 5340-01-390-5852, 01-390-5852, 5340013905852, 013905852
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 MAY 1994 | 01-390-5852 | 17532 ( CLAMP, LOOP ) |

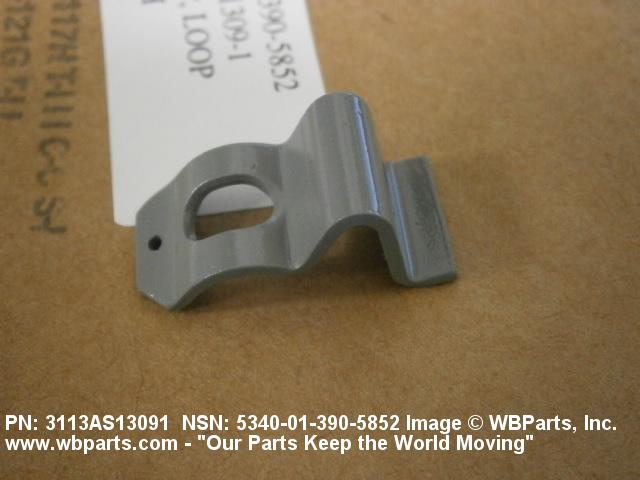

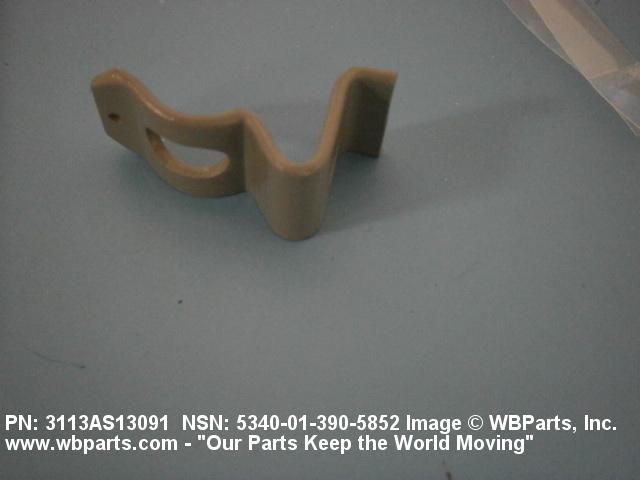

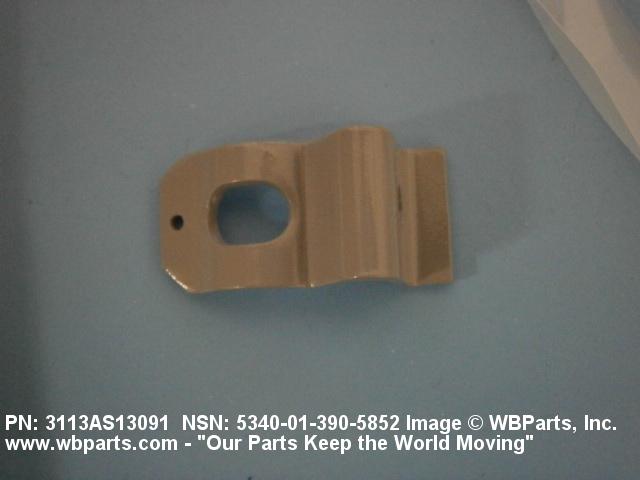

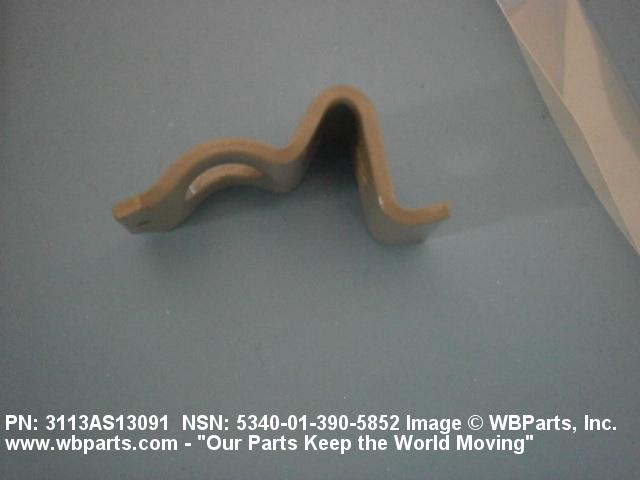

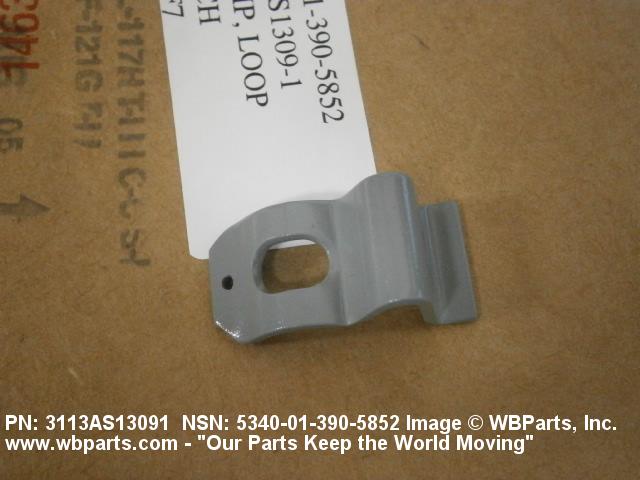

Drawings & Photos | NSN 5340-01-390-5852
Demand History | NSN 5340-01-390-5852
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-390-5852 | 2019-02-38 | 115 | DIBBS |
| 5340-01-390-5852 | 2019-01-30 | 115 | DIBBS |
| 5340-01-390-5852 | 2012-03-74 | 265 | DIBBS |
| 5340-01-390-5852 | 2011-09-271 | 214 | DIBBS |
| 3113AS13091 | 2011-09-257 | 48 | United States |
| 3113AS13091 | 2011-09-251 | 96 | United States |
| 5340-01-390-5852 | 2011-07-201 | 100 | DIBBS |
Cross Reference | NSN 5340-01-390-5852
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3113AS1309-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-390-5852
Technical Data | NSN 5340-01-390-5852
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | A34 SINGLE LOOP |
| OVERALL LENGTH | 1.2500 INCHES NOMINAL |
| OVERALL WIDTH | 0.6200 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.0600 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-01-390-5852
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-390-5852
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
