NSN 5340-01-390-6736 MILB543, MIL-B-543, TYPE12315
Product Details | BUCKLE
5340-01-390-6736 A fastening device used to join two ends of a belt, strap or the like. It may be a single unit designed to be attached to one end of a belt or strap and secure the opposite end by penetration, by clamping, or by friction, or it may consist of male and female sections having one section attached at each end of the belt or strap and joins the two ends by a hook-like or other interlocking action.20253400020Hardware, Commercial83150028Notions and Apparel Findings
Part Alternates: MILB543, MIL-B-543, TYPE12315, 5340-01-390-6736, 01-390-6736, 5340013906736, 013906736
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 MAY 1994 | 01-390-6736 | 17223 ( BUCKLE ) |
Drawings & Photos | NSN 5340-01-390-6736
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-390-6736
Technical Data | NSN 5340-01-390-6736
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL BODY |
| SURFACE TREATMENT | ZINC PHOSPHATE |
| ENAMELED FEATURE | INCLUDED |
| COLOR | BLACK |

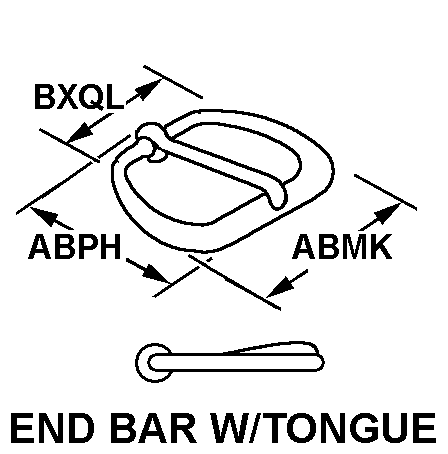

| BUCKLE STYLE DESIGNATOR | B2 END BAR WITH TONGUE |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| STRAP ACCOMMODATION WIDTH | 1.000 INCHES NOMINAL |
| SPECIFIC USAGE DESIGN | FOR USE ON ITEMS OF EQUIPMENT HAVING STRAP-BUCKLE-TYPE FASTENERS |
| INSIGNIA | INCLUDED |
| UNIT PACKAGE QUANTITY | 500 |
| UNIT PACKAGE TYPE | BOX |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-B-543 |
Restrictions/Controls & Freight Information | NSN 5340-01-390-6736
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
