Product Details | DOOR HANDLE
5340-01-406-5026 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 1339AS1981, 1339AS198-1, 5340-01-406-5026, 01-406-5026, 5340014065026, 014065026
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 JAN 1995 | 01-406-5026 | 18073 ( HANDLE, DOOR ) |

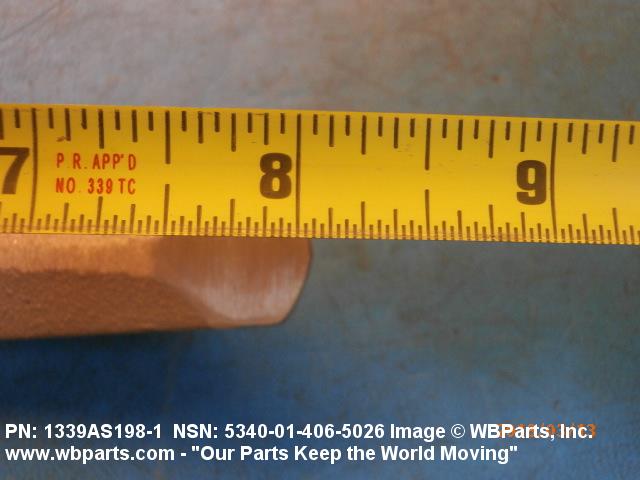

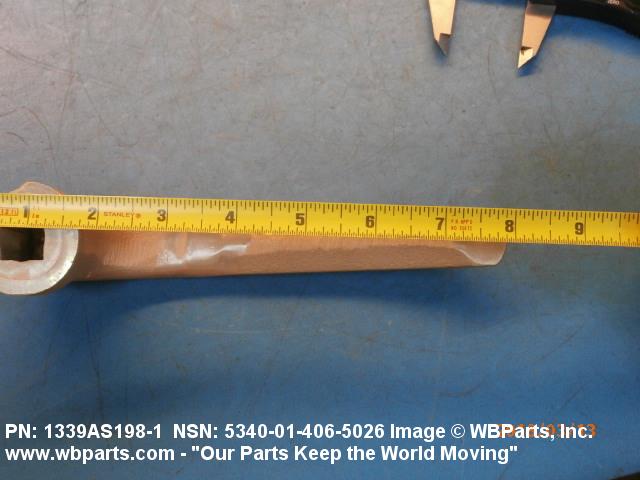

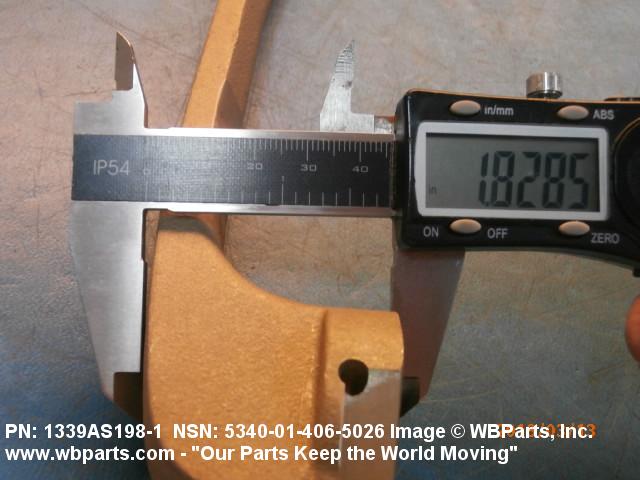

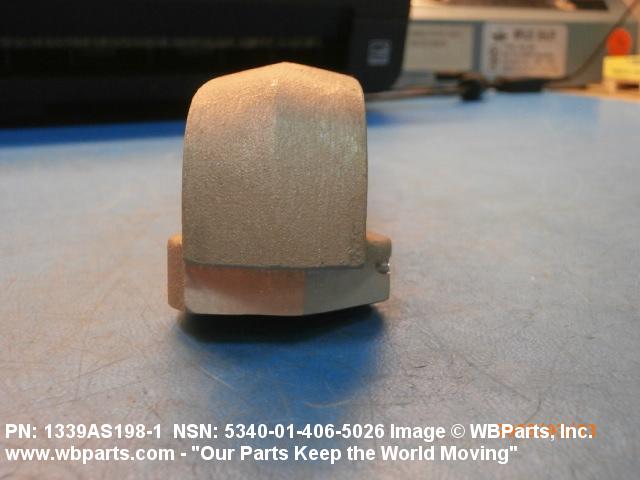

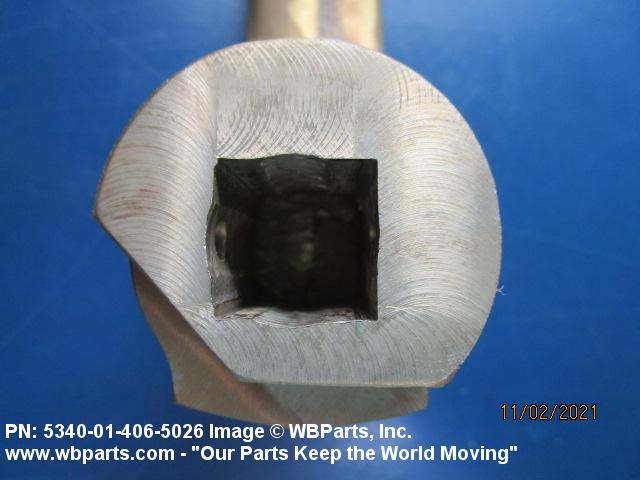

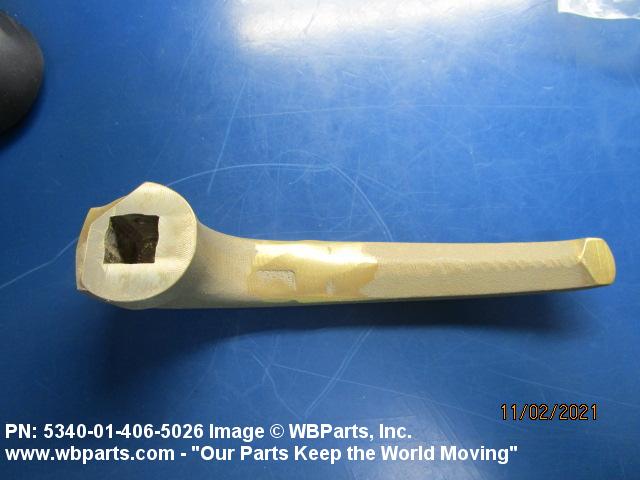

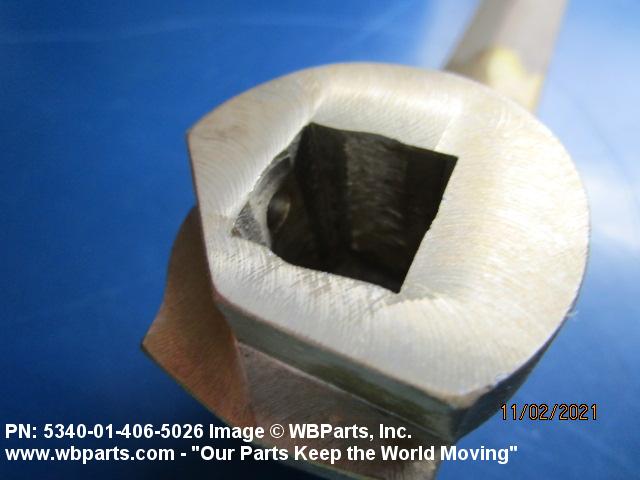

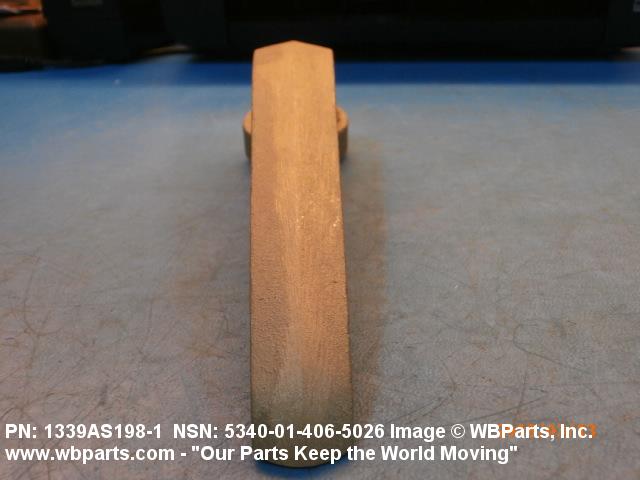

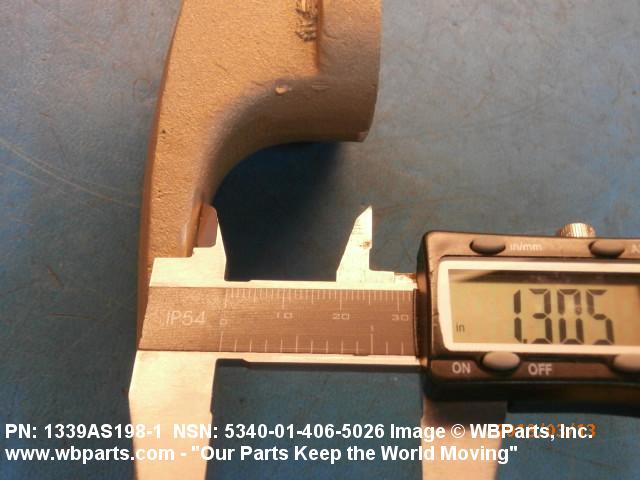

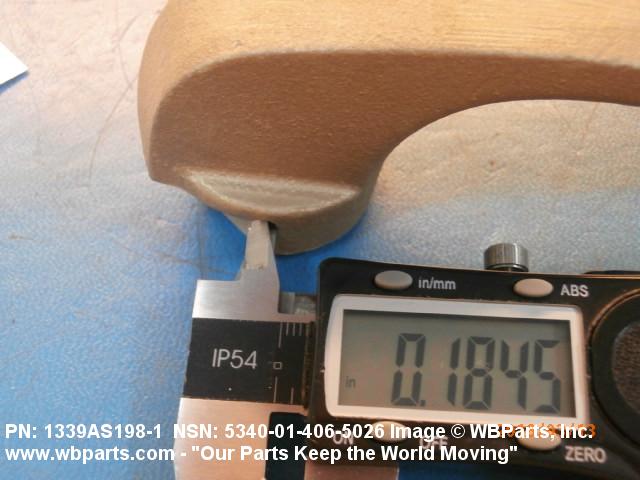

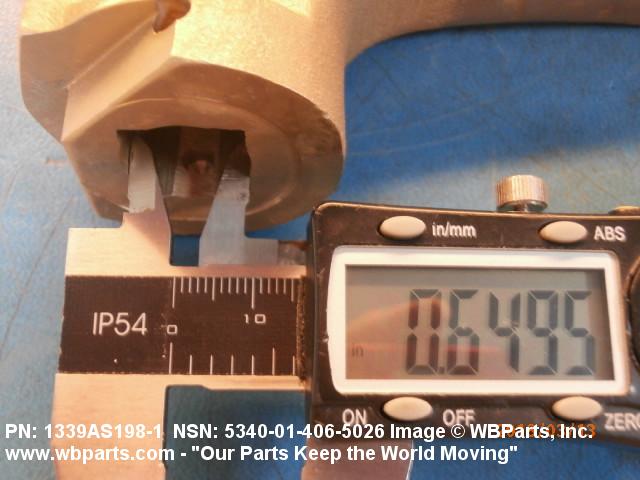

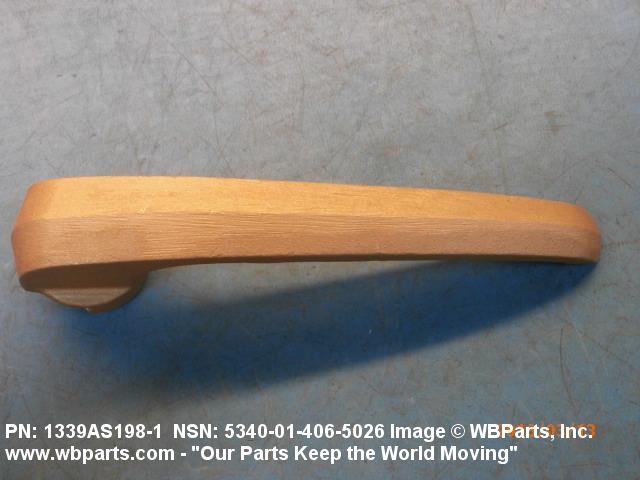

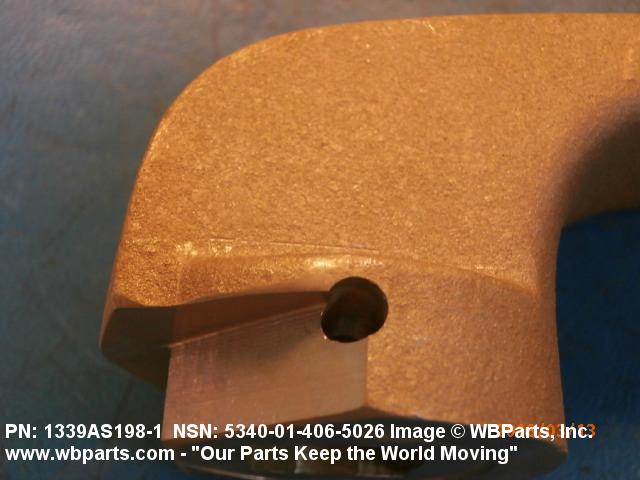

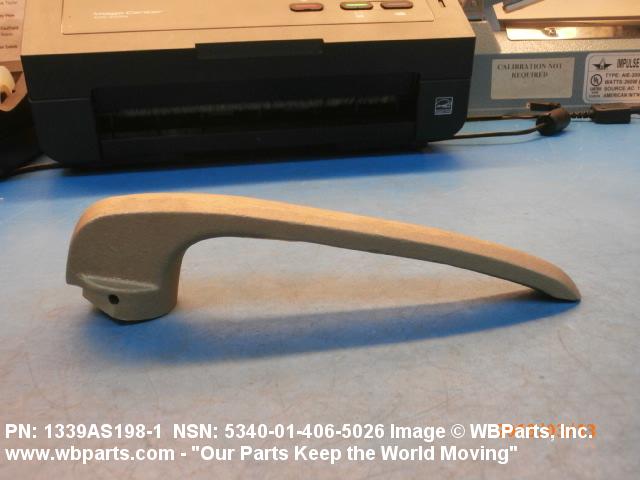

Drawings & Photos | NSN 5340-01-406-5026
Demand History | NSN 5340-01-406-5026
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-406-5026 | 2021-11-23 | 44 | US |
| 5340-01-406-5026 | 2021-08-03 | 52 | US |
| 1339AS1981 | 2018-02-21 | 11 | United States |
| 5340-01-406-5026 | 2018-02-15 | 80 | US |
| 5340-01-406-5026 | 2018-02-15 | 80 | US |
| 5340-01-406-5026 | 2017-12-11 | 80 | United States |
| 5340-01-406-5026 | 2017-07-26 | 80 | US |
| 5340-01-406-5026 | 2015-08-02 | 43 | DIBBS |
| 5340-01-406-5026 | 2015-07-05 | 35 | DIBBS |
| 5340-01-406-5026 | 2015-07-02 | 11 | DIBBS |
| 5340-01-406-5026 | 2015-06-21 | 11 | DIBBS |
| 5340-01-406-5026 | 2015-03-19 | 15 | DIBBS |
| 5340-01-406-5026 | 2015-01-27 | 20 | US |
| 5340-01-406-5026 | 2011-08-23 | 45 | DIBBS |
| 5340-01-406-5026 | 2010-03-02 | 37 | DIBBS |
Cross Reference | NSN 5340-01-406-5026
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1339AS198-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-01-406-5026
Related Products | NSN 5340-01-406-5026
5340-01-406-5027, 5340-01-406-5028, 5340-01-406-5029, 5340-01-406-5030, 5340-01-406-5031
Technical Data | NSN 5340-01-406-5026
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-601 ALLOY 713.0 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 CL 1A MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

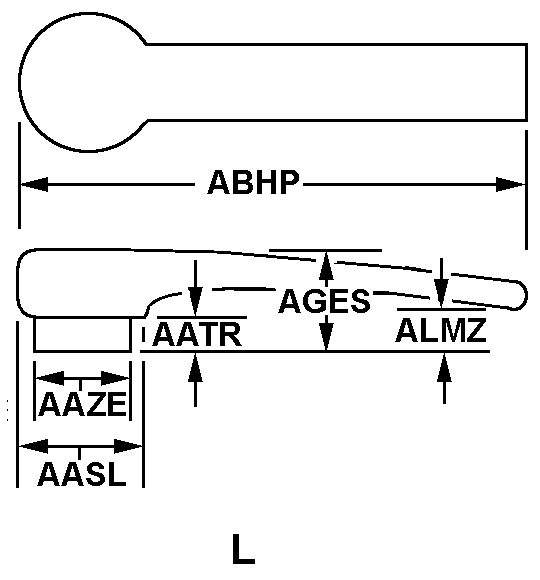

| STYLE DESIGNATOR | C16 L |

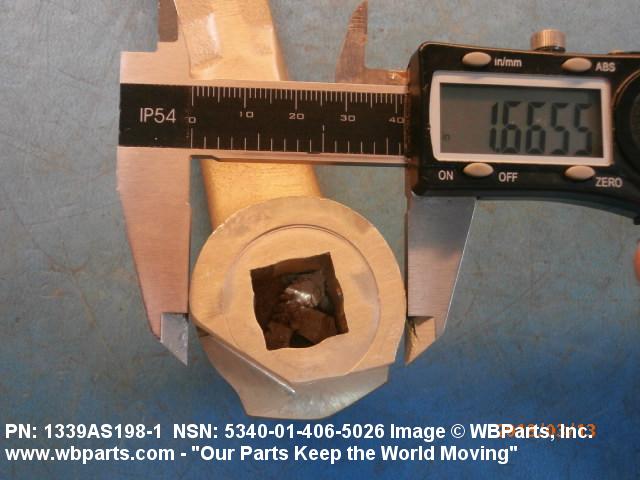

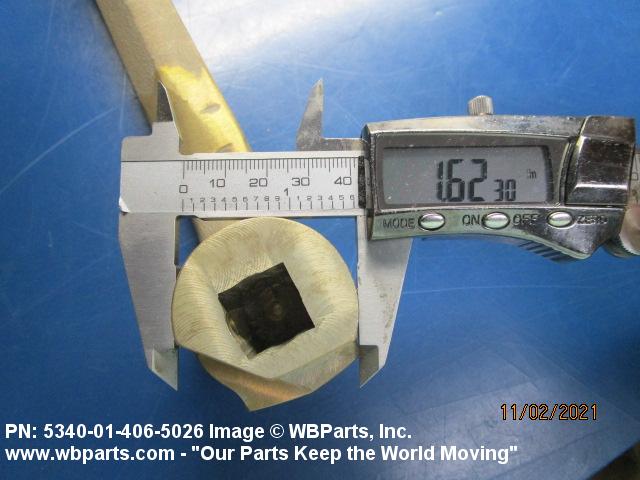

| HEAD DIAMETER | 1.620 INCHES NOMINAL |

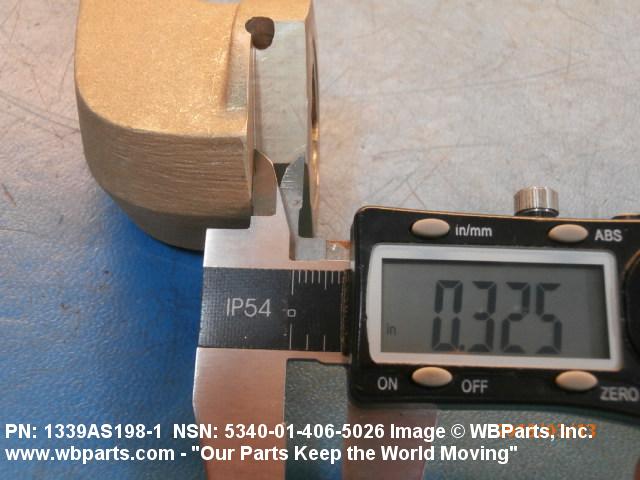

| SHANK LENGTH | 0.310 INCHES NOMINAL |
| SHANK DIAMETER | 1.120 INCHES NOMINAL |

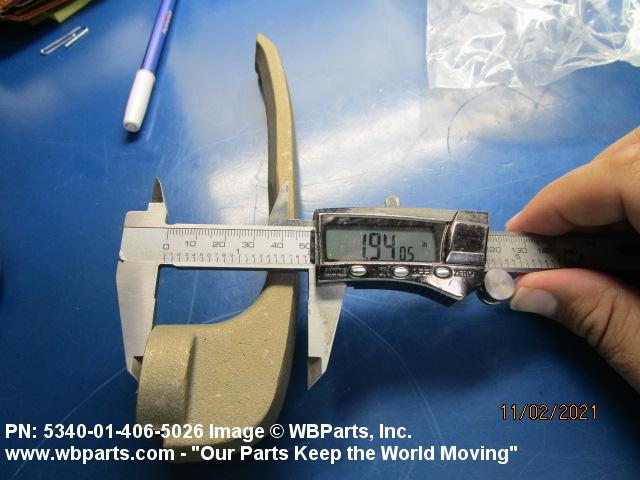

| HANDLE HEIGHT | 1.940 INCHES NOMINAL |
| HANDLE CLEARANCE | 1.120 INCHES NOMINAL |

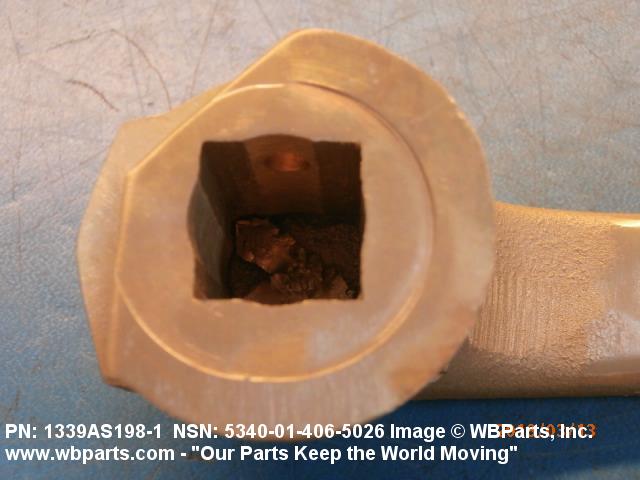

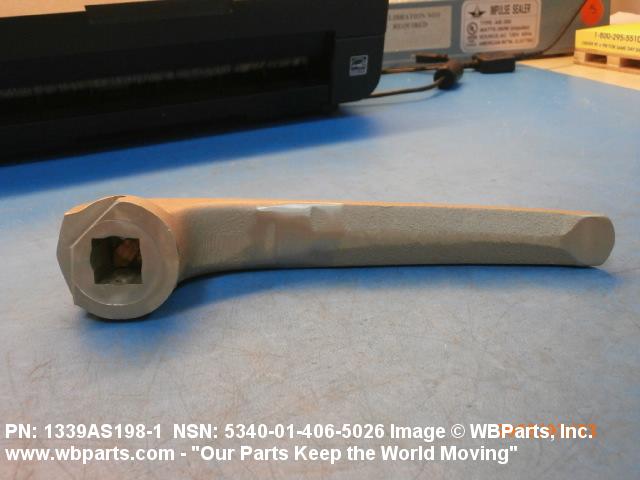

| MOUNTING METHOD | SQUARE HOLES |
Restrictions/Controls & Freight Information | NSN 5340-01-406-5026
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-406-5026
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
