NSN 5340-01-437-6201 M85052/2-10, M85052210, MIL-C-85052/2
Product Details | LOOP CLAMP
5340-01-437-6201 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: M85052/2-10, M85052210, MIL-C-85052/2, MILC850522, TA026000110EP, TA026-0001-10EP, 5340-01-437-6201, 01-437-6201, 5340014376201, 014376201
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 OCT 1996 | 01-437-6201 | 17532 ( CLAMP, LOOP ) |

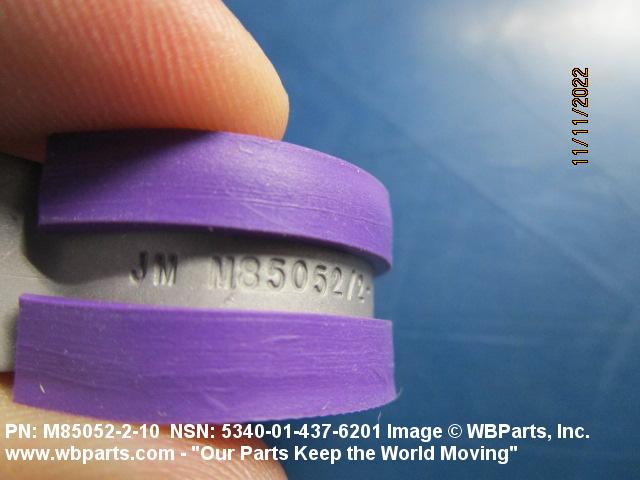

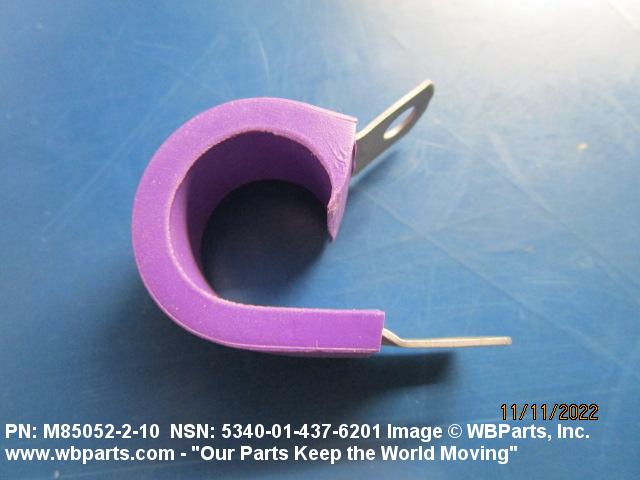

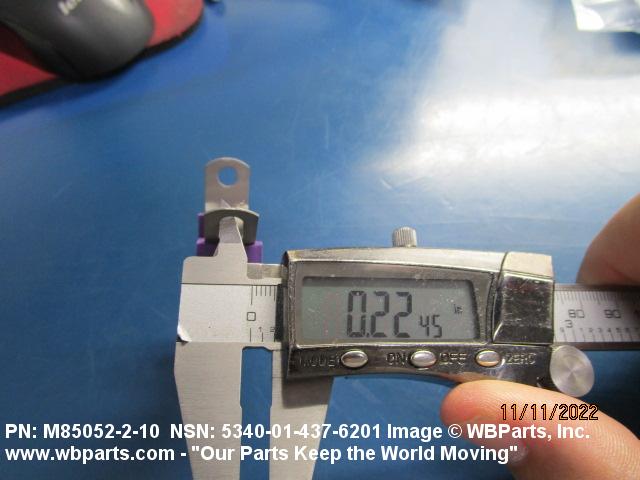

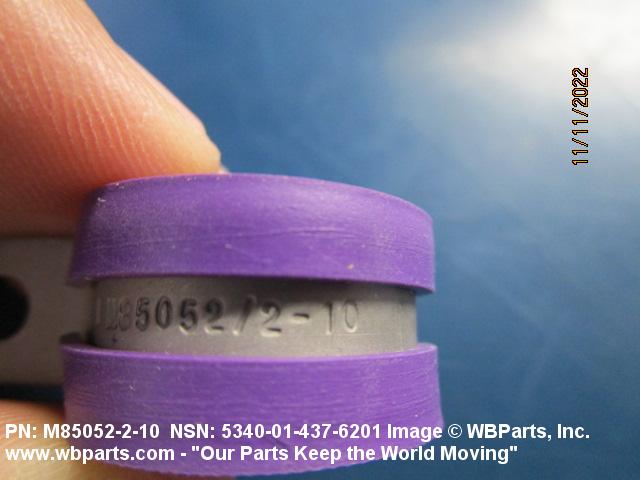

Drawings & Photos | NSN 5340-01-437-6201
Demand History | NSN 5340-01-437-6201
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M85052210 | 2022-11-307 | 112 | United States |
| 5340-01-437-6201 | 2019-03-85 | 53 | DIBBS |
| 5340-01-437-6201 | 2019-01-21 | 116 | DIBBS |
| 5340-01-437-6201 | 2018-01-01 | 53 | DIBBS |
| 5340-01-437-6201 | 2017-05-128 | 26 | DIBBS |
| 5340-01-437-6201 | 2017-02-53 | 21 | DIBBS |
| 5340-01-437-6201 | 2016-09-266 | 3 | DIBBS |
| 5340-01-437-6201 | 2016-08-227 | 10 | DIBBS |
| M85052/2-10 | 2014-06-157 | 50 | United States |
| M85052210 | 2006-10-303 | 40 | US |
Cross Reference | NSN 5340-01-437-6201
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-437-6201
Technical Data | NSN 5340-01-437-6201
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BAND RUBBER ETHYLENE-PROPYLENE CLASS EPM CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-25043 MIL SPEC SINGLE MATERIAL RESPONSE BAND |
| SURFACE TREATMENT | PASSIVATE BAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BAND |
| STYLE DESIGNATOR | A2 SINGLE LOOP |

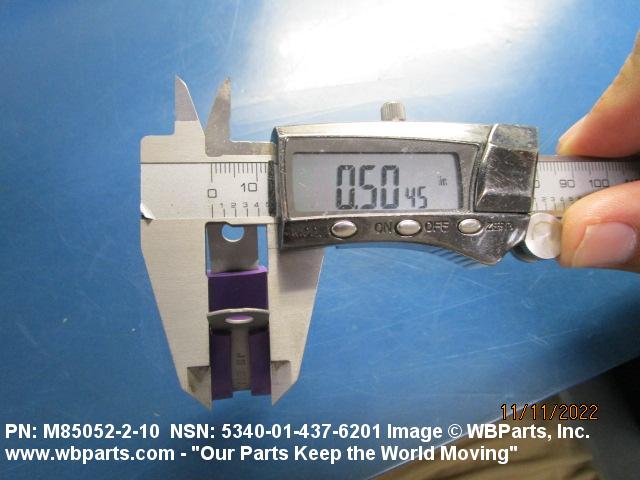

| OVERALL WIDTH | 0.500 INCHES NOMINAL |

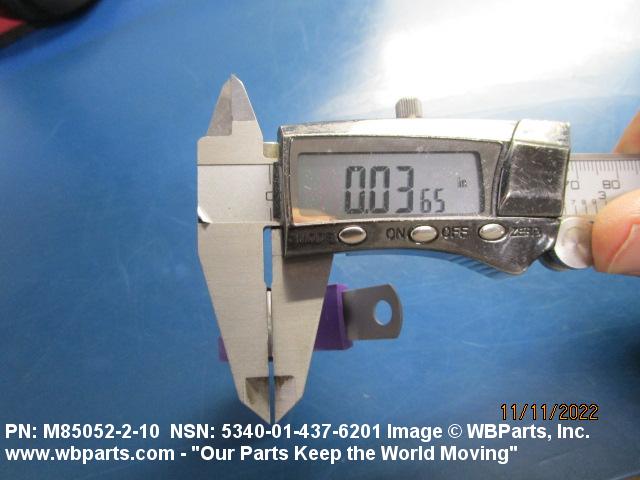

| MATERIAL THICKNESS | 0.032 INCHES NOMINAL |

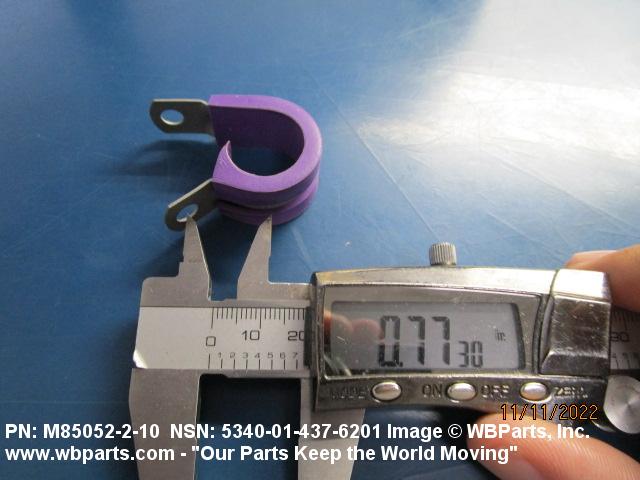

| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.772 INCHES NOMINAL |

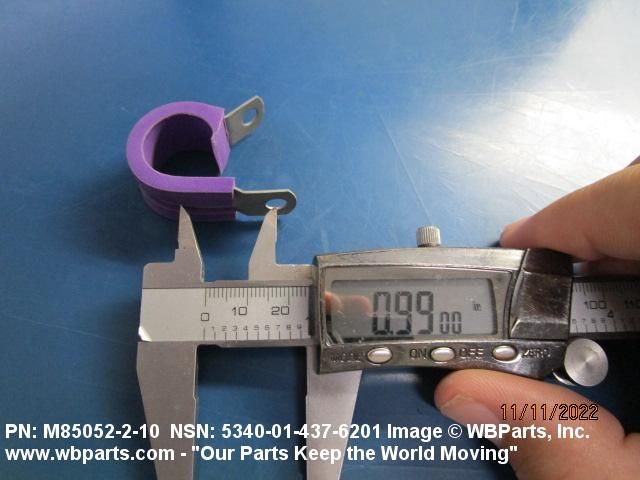

| DISTANCE FROM LOOP CENTER TO TONGUE END | 0.990 INCHES NOMINAL |

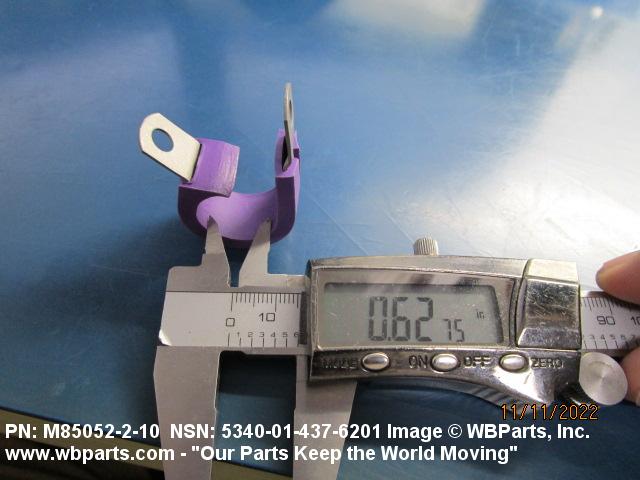

| LOOP INSIDE DIAMETER | 0.625 INCHES NOMINAL |
| TEMP RATING | 275.0 DEG FAHRENHEIT |
| SPECIAL FEATURES | PURPLE CUSHION |
| III END ITEM IDENTIFICATION | CE/CC 144 CHALLENGER ACFT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-85052/2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M85052/2-10 |
Restrictions/Controls & Freight Information | NSN 5340-01-437-6201
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
