NSN 5340-01-438-2696 1101952-15, 01-438-2696, 110195215
Product Details | BUCKLE
5340-01-438-2696 A fastening device used to join two ends of a belt, strap or the like. It may be a single unit designed to be attached to one end of a belt or strap and secure the opposite end by penetration, by clamping, or by friction, or it may consist of male and female sections having one section attached at each end of the belt or strap and joins the two ends by a hook-like or other interlocking action.20253400020Hardware, Commercial83150028Notions and Apparel Findings
Part Alternates: 1101952-15, 5340-01-438-2696, 01-438-2696, 5340014382696, 110195215, 014382696
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 NOV 1996 | 01-438-2696 | 17223 ( BUCKLE ) |

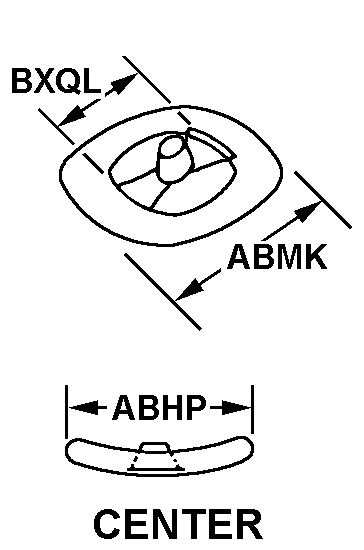

Drawings & Photos | NSN 5340-01-438-2696
Cross Reference | NSN 5340-01-438-2696
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1101952-15 | 45402 | PACIFIC SCIENTIFIC COMPANY DBA PACIFIC SCIENTIFIC HTL/KIN TECHS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-438-2696
Technical Data | NSN 5340-01-438-2696
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | LEATHER BODY AND NYLON BODY STEEL PLATE AND ALUMINUM PLATE |
| ENAMELED FEATURE | INCLUDED |
| COLOR | BROWN AND BLACK |
| BUCKLE STYLE DESIGNATOR | B22 CENTER BAR-TONGUELESS |
| OVERALL LENGTH | 6.625 INCHES NOMINAL |
| OVERALL WIDTH | 5.000 INCHES MINIMUM AND 6.000 INCHES MAXIMUM |
| STRAP ACCOMMODATION WIDTH | 2.990 INCHES NOMINAL |
| INSIGNIA | INCLUDED |
| III END ITEM IDENTIFICATION | HH-65 COAST GUARD HELICOPTER |
| MANUFACTURERS CODE | 45402 |
| DESIGN CONTROL REFERENCE | 1101952-15 |
Restrictions/Controls & Freight Information | NSN 5340-01-438-2696
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
