NSN 5340-01-447-6270 A535771, A53577-1, 01-447-6270
Product Details | BRIDGE CLAMP
5340-01-447-6270 A clamp designed to straddle a cover, door or like item, and used to secure such cover, door or like item to effect a tight joint or seal.
Part Alternates: A535771, A53577-1, 5340-01-447-6270, 01-447-6270, 5340014476270, 014476270
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 AUG 1997 | 01-447-6270 | 11206 ( CLAMP, BRIDGE ) |
Drawings & Photos | NSN 5340-01-447-6270
Cross Reference | NSN 5340-01-447-6270
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A53577-1 | 94697 | MOOG, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-447-6270
Technical Data | NSN 5340-01-447-6270
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5659 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |

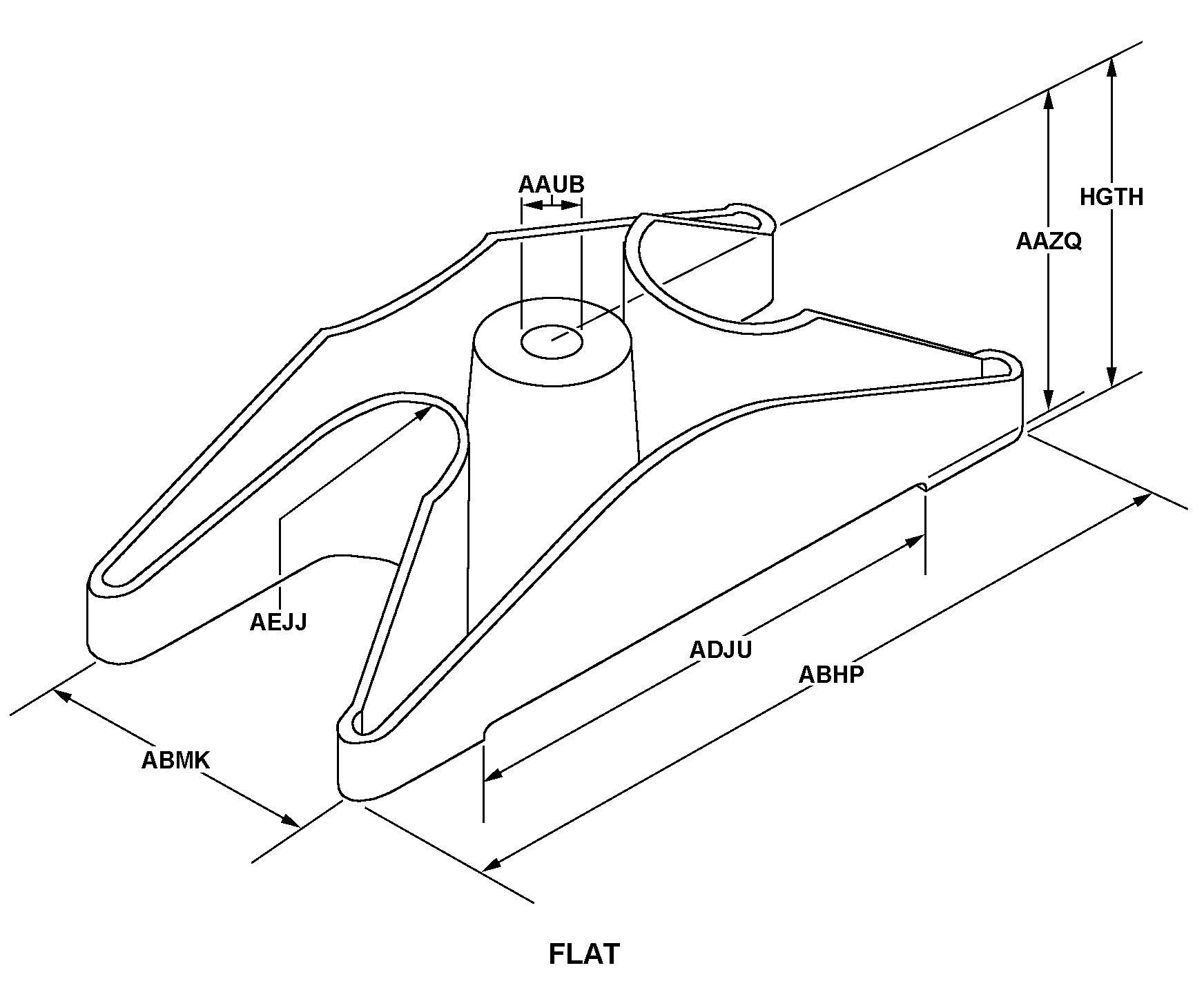

| STYLE DESIGNATOR | B28 FLAT |
| HOLE DIAMETER | 0.256 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.200 INCHES NOMINAL |
| HEIGHT | 0.200 INCHES NOMINAL |
| SPECIAL FEATURES | CONTAINS 2 MOUNTING HOLES; ORIGINAL NAME ON DRAWING IS CLAMP,UNION |
| III END ITEM IDENTIFICATION | PACER DAWN |
Restrictions/Controls & Freight Information | NSN 5340-01-447-6270
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
