NSN 5340-01-447-8544 8819408, 01-447-8544, 014478544
Product Details | SPLIT TUBULAR CLIP
5340-01-447-8544 A tubular item of resilient metallic material, split along its entire length and having a flange at one end, usually with projecting arms or prongs extending from the body. It is designed to be inserted into a hole in a panel and held in place by spring tension. It is used to retain unthreaded items such as a pin or a rivet.
Part Alternates: 8819408, 5340-01-447-8544, 01-447-8544, 5340014478544, 014478544
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 AUG 1997 | 01-447-8544 | 19770 ( CLIP, SPLIT TUBULAR ) |

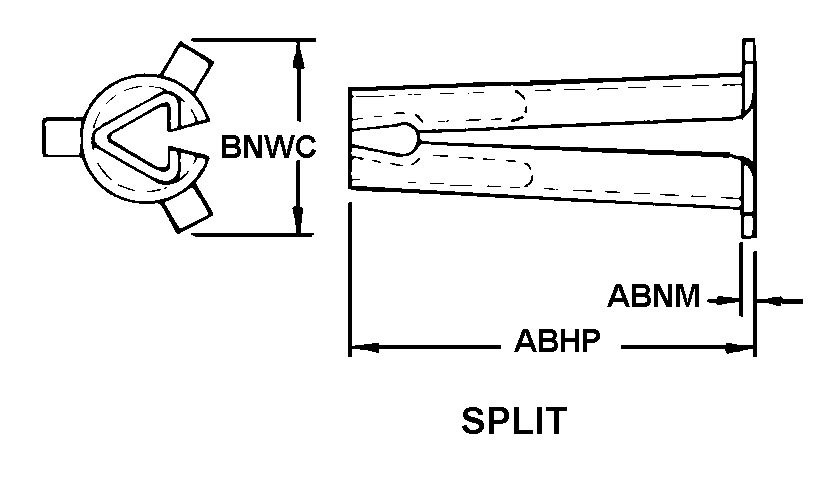

Drawings & Photos | NSN 5340-01-447-8544
Cross Reference | NSN 5340-01-447-8544
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8819408 | 18894 | AIR ARMAMENT CENTER/ EN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-447-8544
Technical Data | NSN 5340-01-447-8544
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| STYLE DESIGNATOR | D5 SPLIT |
| SPECIAL FEATURES | SUBMITTED ITEM NAME IS CLIP,SPLIT,TUBULAR |
| III END ITEM IDENTIFICATION | NO END ITEM SUBMITTED |
Restrictions/Controls & Freight Information | NSN 5340-01-447-8544
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE NOI IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
