NSN 5340-01-451-7600 M32552001, M3255-2001, 13700118TPH1
Product Details | RECESS HANDLE
5340-01-451-7600 A recessed item designed to be attached to another item such as a door, drawer, or window to provide access for the finger tips for opening, lifting, pulling, and the like. Includes sash lifts of the recessed type.
Part Alternates: M32552001, M3255-2001, 13700118TPH1, 13700118TPH-1, 5340-01-451-7600, 01-451-7600, 5340014517600, 014517600
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 DEC 1997 | 01-451-7600 | 20352 ( HANDLE, RECESS ) |
Drawings & Photos | NSN 5340-01-451-7600
Demand History | NSN 5340-01-451-7600
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M3255-2001 | 2021-03-78 | 11 | DIBBS |
| M3255-2001 | 2021-03-70 | 11 | DIBBS |
| M32552001 | 2019-08-233 | 4 | United States |
| 5340-01-451-7600 | 2018-08-217 | 27 | DIBBS |
| 5340-01-451-7600 | 2018-05-150 | 26 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-451-7600
Related Products | NSN 5340-01-451-7600
Technical Data | NSN 5340-01-451-7600
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL MOUNTING PLATE |
| COLOR | SILVER MOUNTING PLATE |
| HANDLE CLEARANCE | 2.300 INCHES NOMINAL |
| MOUNTING METHOD | MOUNTING PLATE |
| MOUNTING FACILITY LENGTH | 7.600 INCHES NOMINAL |
| MOUNTING FACILITY WIDTH | 3.000 INCHES NOMINAL |

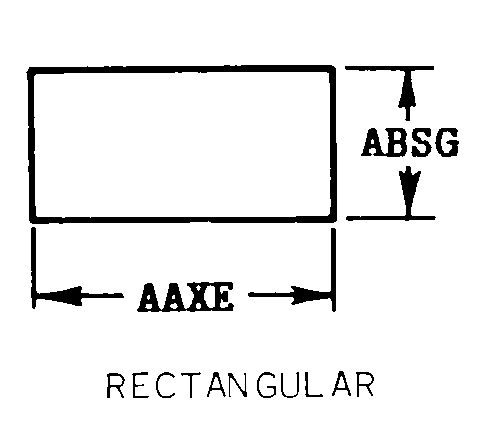

| MOUNTING PLATE STYLE | R7 RECTANGULAR |
| SHAFT ACCOMMODATION STYLE | V4 RECTANGULAR |
| SPECIAL FEATURES | DEPTH OF SHAFT .83",FOLDING BLACK MATTLE 6.4"(LEN) HANDL |
| III END ITEM IDENTIFICATION | AIRCRAFT MODEL S-3 |
Restrictions/Controls & Freight Information | NSN 5340-01-451-7600
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-451-7600
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | CS | ANTI-SUBMARINEAIRCRAFT(S3) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
