NSN 5340-01-454-4269 6670TASS1177, 6-670-TASS-1177 , 94741221
Product Details | MANUAL CONTROL HANDLE
5340-01-454-4269 A rigid item with a plain or serrated gripping surface, designed to be grasped with the hand(s) for the purpose of manually transmitting rotary or linear motion to other devices, and/or holding and guiding an item in a desired position during operation. It may be fixed or rotating and furnished with mounting attachments, such as pin, stud, bolt, or the like. It may also be adjusted to a hand crank arm, a handwheel, or the like. Excludes KNOB; CRANK, HAND; and LEVER, MANUAL CONTROL. See also HANDLE (as modified). Do not use if a more specific name applies.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 6670TASS1177, 6-670-TASS-1177 , 94741221, 9474122-1, 5340-01-454-4269, 01-454-4269, 5340014544269, 014544269
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 MAR 1998 | 01-454-4269 | 32333 ( HANDLE, MANUAL CONTROL ) |
Drawings & Photos | NSN 5340-01-454-4269
Cross Reference | NSN 5340-01-454-4269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9474122-1 | 11982 | NORTHROP GRUMMAN SPACE & MISSION SYSTEMS CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-454-4269
Technical Data | NSN 5340-01-454-4269
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 SHAFT |
| STYLE DESIGNATOR | Q1 TUBULAR |
| MOUNTING METHOD | THREADED SHAFT |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |

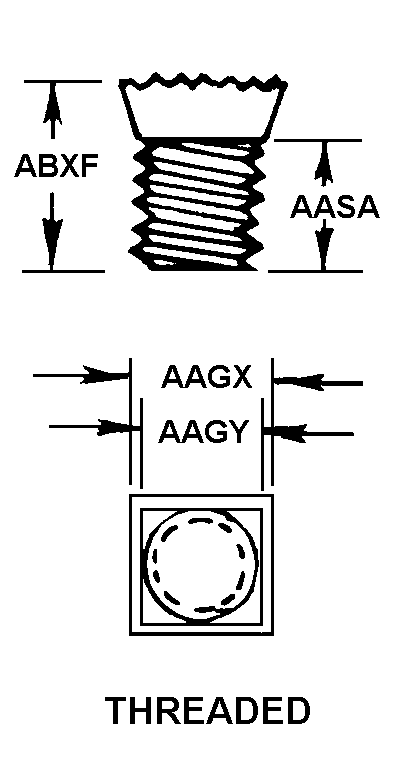

| INTEGRAL SHAFT STYLE | U7 THREADED |
| III END ITEM IDENTIFICATION | 31S9-4-99-1. APPLICATION IS AN/USQ-139 |
Restrictions/Controls & Freight Information | NSN 5340-01-454-4269
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5340-01-454-4269
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | K | 8357X3080:Cryptologic and Other USAF Security Service Equipment |
| Materiel Management Aggregation Code | SM | SJ:MISSION AND SECURITY PRODUCTS |
| Source of Supply | FPD | Air Force Cryptologic Support Center (ESC) San Antonio, TX 78243-5000 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
