NSN 5340-01-480-0042 8487A22, 01-480-0042, 014800042
Product Details | QUICK RELEASE PLUNGER
5340-01-480-0042 An externally threaded tubular item containing a spring loaded device (pin, ball, etc.). The device is held in the thrown position by the spring and recedes when pressure is exerted against it. It is used as a locator, detent, and the like.
Part Alternates: 8487A22, 5340-01-480-0042, 01-480-0042, 5340014800042, 014800042
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 NOV 2000 | 01-480-0042 | 19876 ( PLUNGER, QUICK RELEASE ) |

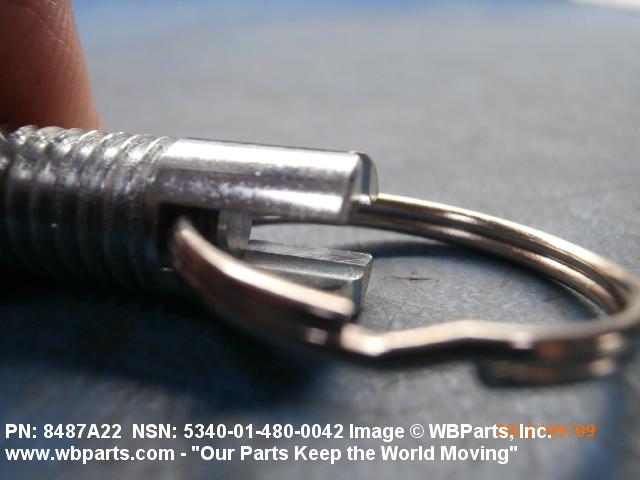

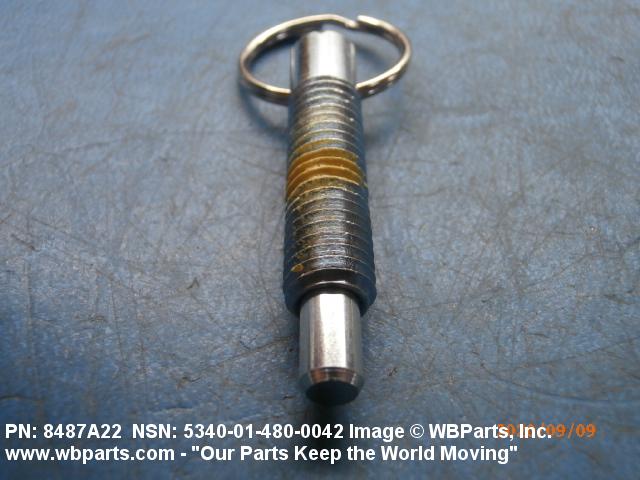

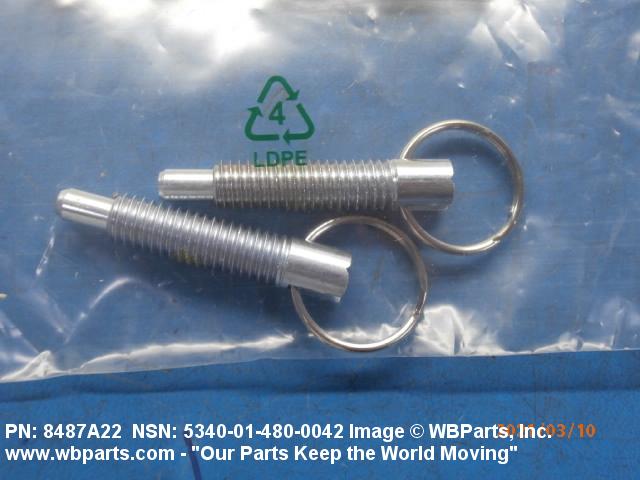

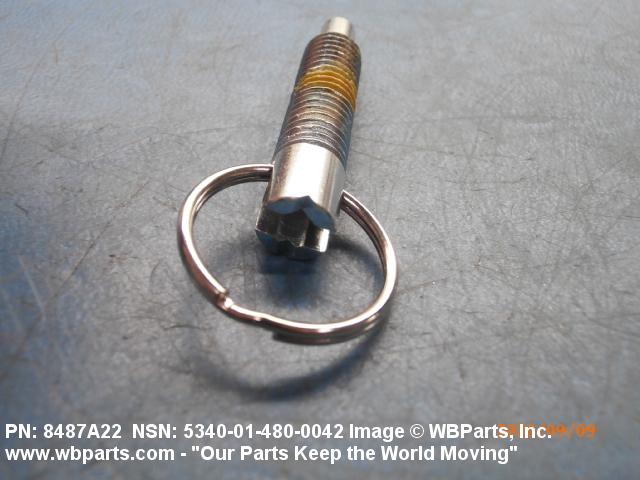

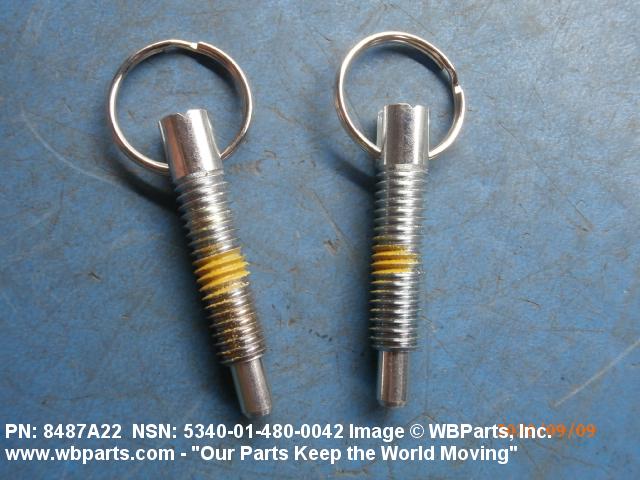

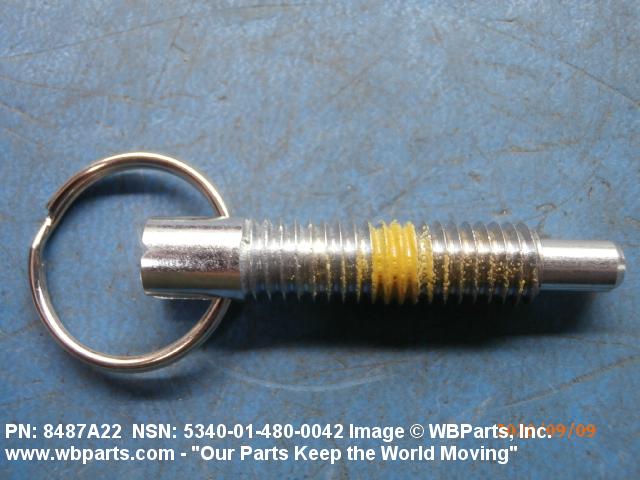

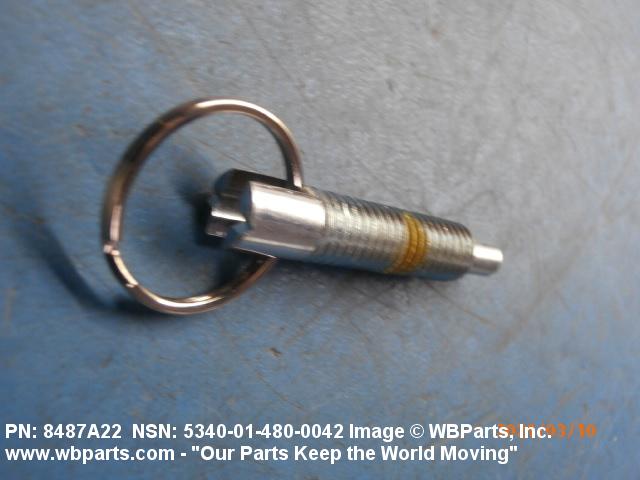

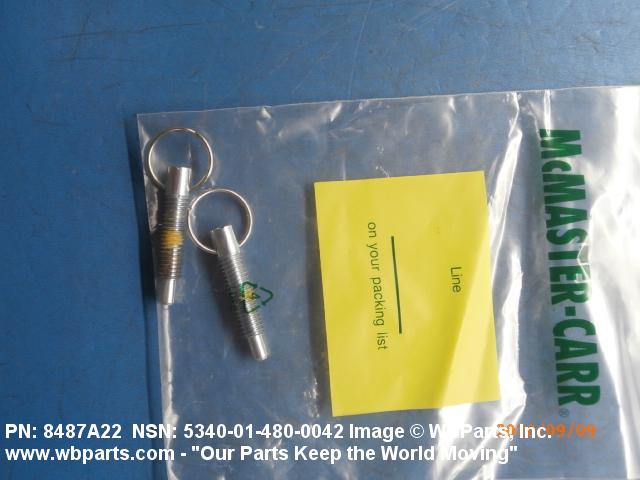

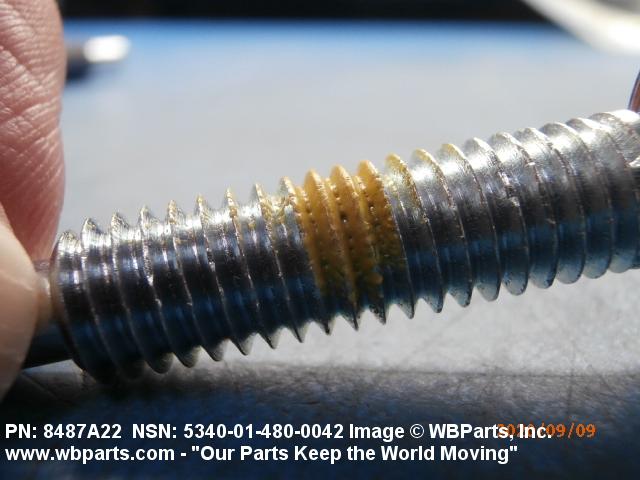

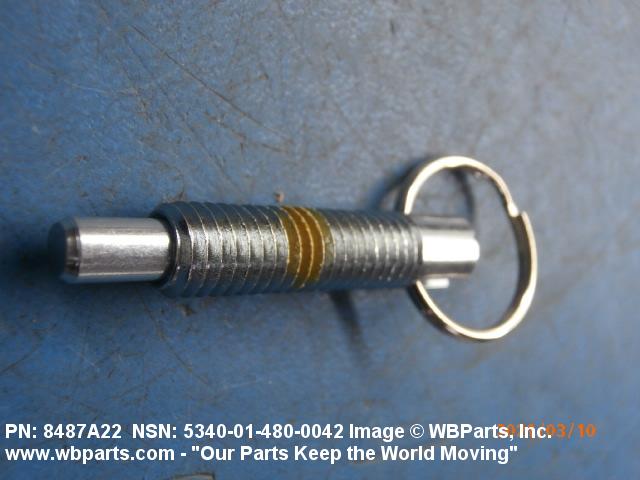

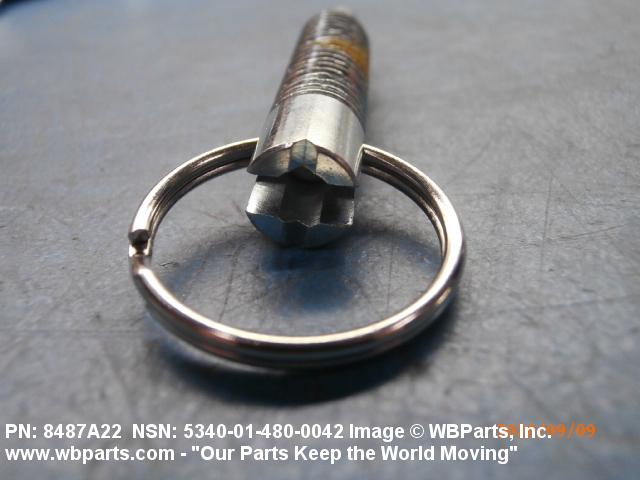

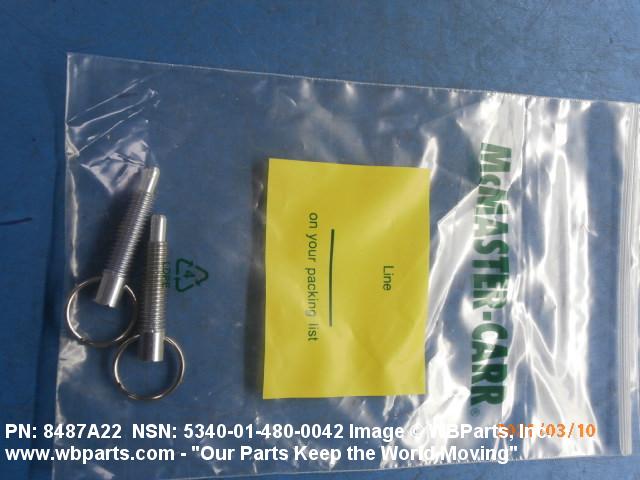

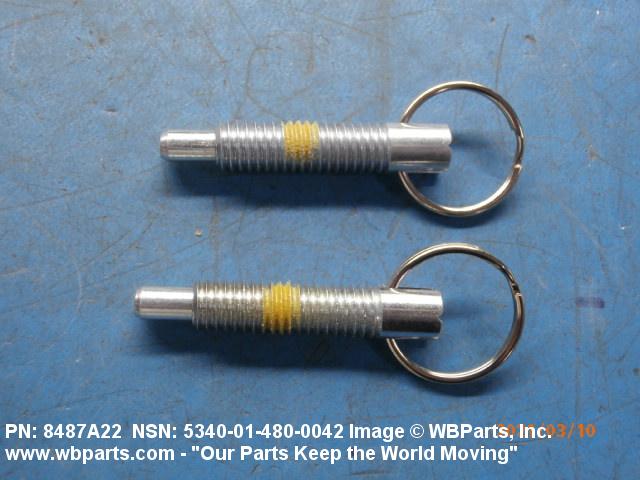

Drawings & Photos | NSN 5340-01-480-0042
Demand History | NSN 5340-01-480-0042
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8487A22 | 2021-10-286 | 75 | DIBBS |
| 8487A22 | 2021-07-199 | 34 | DIBBS |
| 8487A22 | 2021-03-67 | 2 | United States |
| 8487A22 | 2020-08-231 | 1 | United States |
| 5340-01-480-0042 | 2011-10-300 | 625 | DIBBS |
| 5340-01-480-0042 | 2011-08-237 | 625 | DIBBS |
| 5340-01-480-0042 | 2011-06-155 | 200 | DIBBS |
| 5340-01-480-0042 | 2011-05-137 | 50 | DIBBS |
| 5340-01-480-0042 | 2010-04-120 | 96 | DIBBS |
| 5340-01-480-0042 | 2009-04-106 | 69 | DIBBS |
| 5340-01-480-0042 | 2008-10-281 | 65 | DIBBS |
Cross Reference | NSN 5340-01-480-0042
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8487A22 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-480-0042
Related Products | NSN 5340-01-480-0042
Technical Data | NSN 5340-01-480-0042
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

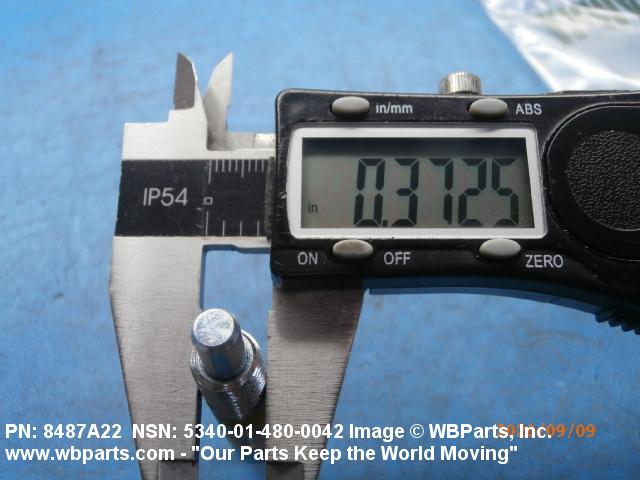

| NOMINAL THREAD SIZE | 0.375 INCHES |

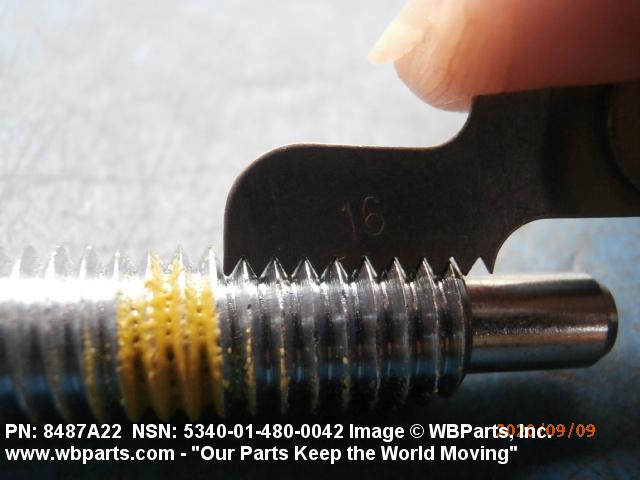

| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

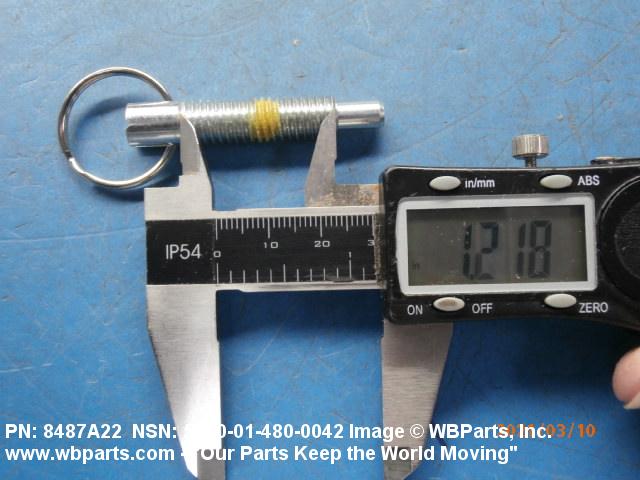

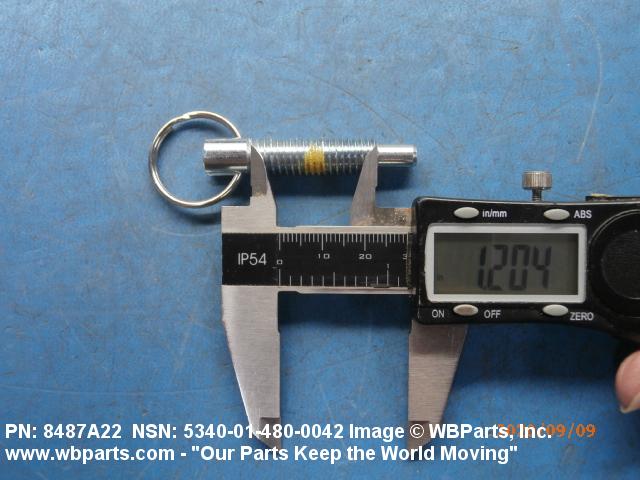

| THREAD LENGTH | 1.200 INCHES NOMINAL |

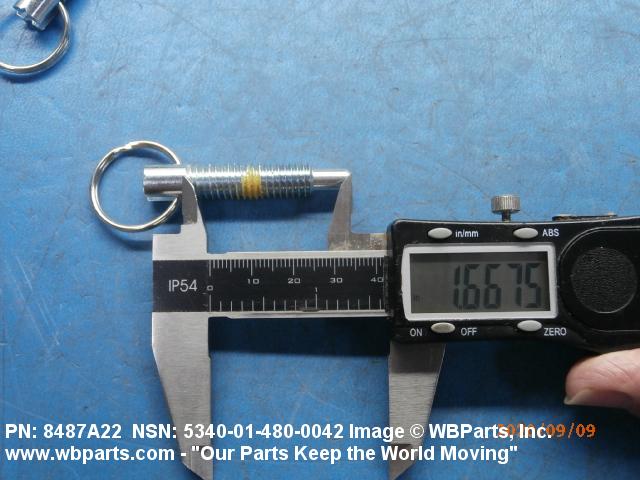

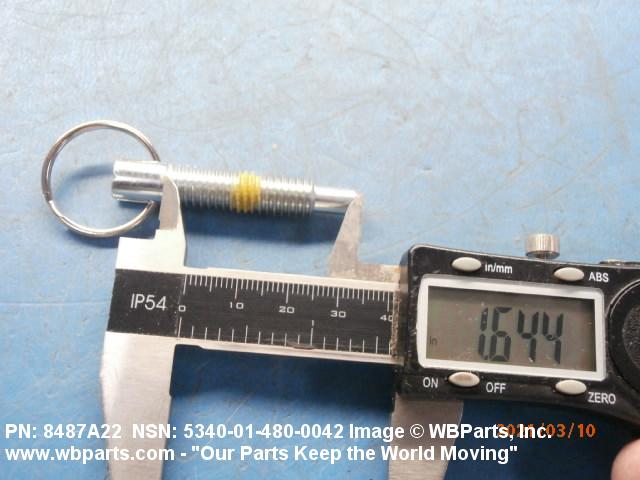

| OVERALL LENGTH | 1.680 INCHES NOMINAL |

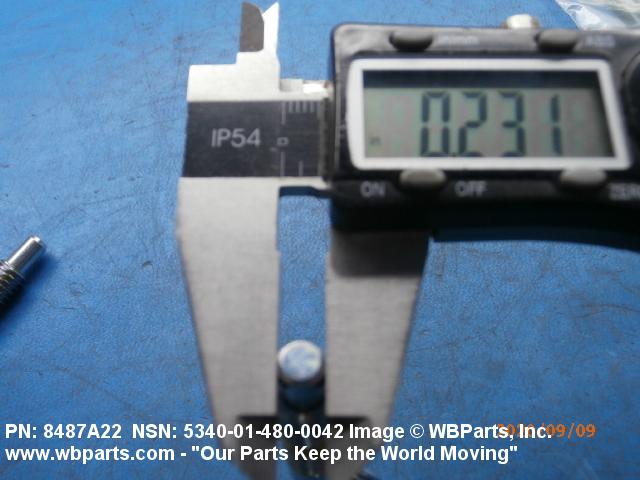

| OVERALL DIAMETER | 0.233 INCHES NOMINAL |
| SHAPE | ROUND |
| END PRESSURE RATING | 4.000 POUNDS MAXIMUM |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PULL-RING LOCKING NOSE SPRING PLUNGER |
Restrictions/Controls & Freight Information | NSN 5340-01-480-0042
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-480-0042
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
