NSN 5340-01-482-4537 MS939210, MS9392-10, 01-482-4537
Product Details | ARCHED CUSHION
5340-01-482-4537 A nonmetallic item designed to fit inside a CLAMP, LOOP and/or a STRAP, RETAINING. It positions tubes, hoses, and the like, and protects the items from damage by absorbing shock and vibration. It has one or more arched slots. For items that are fabricated as one piece and completely surround the internal periphery see GROMMET, NONMETALLIC.
Part Alternates: MS939210, MS9392-10, 5340-01-482-4537, 01-482-4537, 5340014824537, 014824537
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 FEB 2001 | 01-482-4537 | 42420 ( CUSHION, ARCHED ) |

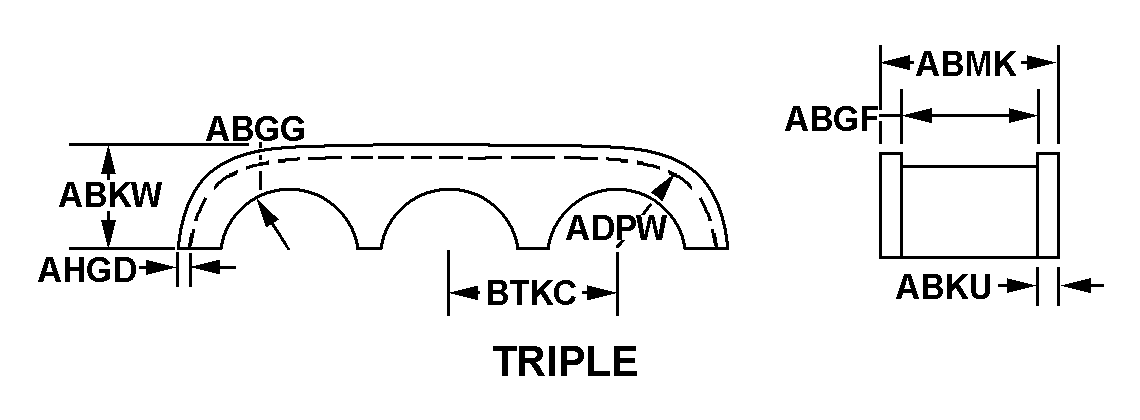

Drawings & Photos | NSN 5340-01-482-4537
Cross Reference | NSN 5340-01-482-4537
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9392-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-482-4537
Technical Data | NSN 5340-01-482-4537
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, SILICONE, AMS 3303 |
| STYLE DESIGNATOR | M3 TRIPLE |
| OVERALL WIDTH | 0.645 INCHES NOMINAL |
| GROOVE WIDTH | 0.516 INCHES MINIMUM AND 0.526 INCHES MAXIMUM |
| RADIUS | 0.344 INCHES MINIMUM AND 0.354 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.062 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.464 INCHES MINIMUM AND 0.474 INCHES MAXIMUM |
| FLANGE HEIGHT | 0.031 INCHES NOMINAL |
| DISTANCE BETWEEN ARCH CENTER LINES | 0.807 INCHES MINIMUM AND 0.817 INCHES MAXIMUM |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CUSHION,LOOP CLAMP-MULTIPLE,3-TUBE, AMS 3303 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9392-10 |
Restrictions/Controls & Freight Information | NSN 5340-01-482-4537
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
