NSN 5340-01-503-1610 01260019, 01-503-1610, 015031610
Product Details | PIPE HANGER
5340-01-503-1610 A metallic or nonmetallic item designed to suspend, support, retain, and/or position items such as cable(s), conduit(s), pipe(s), tube(s), and the like from a structure. It may be fastened vertically or horizontally to the structure by means of rod(s), bolt(s), screw(s), and the like. Excludes CLAMP (1), LOOP; STRAP, RETAINING; CLAMP (1), ELECTRICAL; HANGER, WIRE STRAND, SUPPORT (1), ELECTRICAL CABLE; HANGER, CABLE; and hook, support.
Part Alternates: 01260019, 5340-01-503-1610, 01-503-1610, 5340015031610, 015031610
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 DEC 2002 | 01-503-1610 | 42764 ( HANGER, PIPE ) |
Drawings & Photos | NSN 5340-01-503-1610
Demand History | NSN 5340-01-503-1610
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 01260019 | 2013-08-231 | 1 | US |
Cross Reference | NSN 5340-01-503-1610
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01260019 | 12339 | DRS TRAINING & CONTROL SYSTEMS, LLC DIV RANGE, CONTROL AND UNMANNED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-503-1610
Technical Data | NSN 5340-01-503-1610
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |

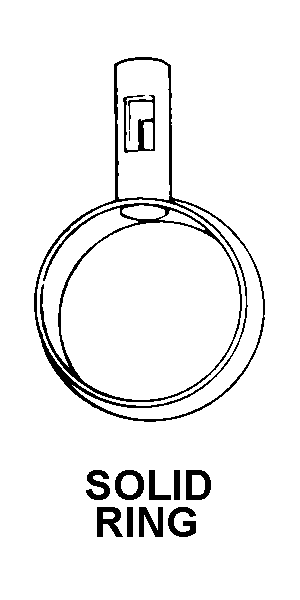

| STYLE DESIGNATOR | 1E SOLID RING |
| SUPPORTED ITEM AND QUANTITY | ANY ACCEPTABLE |
| SPECIAL FEATURES | 2ROWS, 3 EACH OF MOUNTING HOLES: 6X0.260-0.261 THRU C'BORED FAR SIDE 0.437 - SEE DRAWING FOR DEPTH AND LOCATION; TIGHTEN SCREWS TO 10.000 POUNDS OF TORQUE |
| III SUPPLEMENTARY FEATURES | IDENTICAL TO US NAVY P/N 30003-1569518 EXCEPT FOR RADIUS DIMENSION (0.020-0.025 ON UNDERSIDE OF COUNTERBORE) AND HOLE LOCATIONS |
| III END ITEM IDENTIFICATION | AIR COMMAND MANEUVERING INSTRUMENTATION (ACMI); P4RC |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BAND, FORWARD HANGER |
Restrictions/Controls & Freight Information | NSN 5340-01-503-1610
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105500 | HANGERS PIPE NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-503-1610
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
