NSN 5340-01-517-0664 MAFFSNB08N7, MAFF-S-NB08N7, 3M1306E08
Product Details | FLARE LOCK FASTENER
5340-01-517-0664 A shouldered hollow screw and threaded sleeve assembly, designed to be fastened in place by turning the screw, causing one end of the sleeve to flare over the shoulder and against the material through which it has been inserted. Also, a countersunk head hollow screw and flared sleeve-nut assembly, designed to mate with a dimpled hole in the material to which it is fastened. The hollow screws may also have internal threads for attaching screws. See also SHIELD, EXPANSION.
Part Alternates: MAFFSNB08N7, MAFF-S-NB08N7, 3M1306E08, 5340-01-517-0664, 01-517-0664, 5340015170664, 015170664
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JAN 2004 | 01-517-0664 | 20259 ( FASTENER, FLARE LOCK ) |
Drawings & Photos | NSN 5340-01-517-0664
Demand History | NSN 5340-01-517-0664
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M1306E08 | 2022-08-222 | 45 | DIBBS |
| MAFF-S-NB08N7 | 2022-08-222 | 45 | DIBBS |
| 3M1306E08 | 2022-07-206 | 45 | DIBBS |
| MAFF-S-NB08N7 | 2022-07-206 | 45 | DIBBS |
| 3M1306E08 | 2022-06-180 | 45 | DIBBS |
| MAFF-S-NB08N7 | 2022-06-180 | 45 | DIBBS |
| 3M1306E08 | 2022-06-160 | 45 | DIBBS |
| MAFF-S-NB08N7 | 2022-06-160 | 45 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-517-0664
Technical Data | NSN 5340-01-517-0664
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | INCO 718 (108 KSI FSU) FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

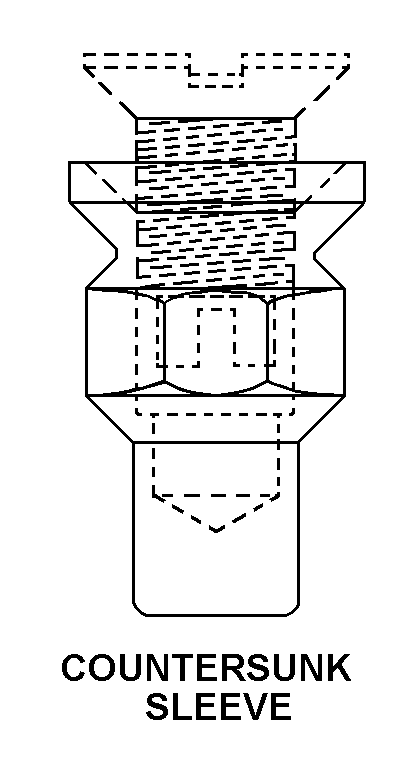

| STYLE DESIGNATOR | E4 COUNTERSUNK SLEEVE |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.265 INCHES |
| THREAD QUANTITY PER INCH | 12-48 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.333 INCHES NOMINAL |

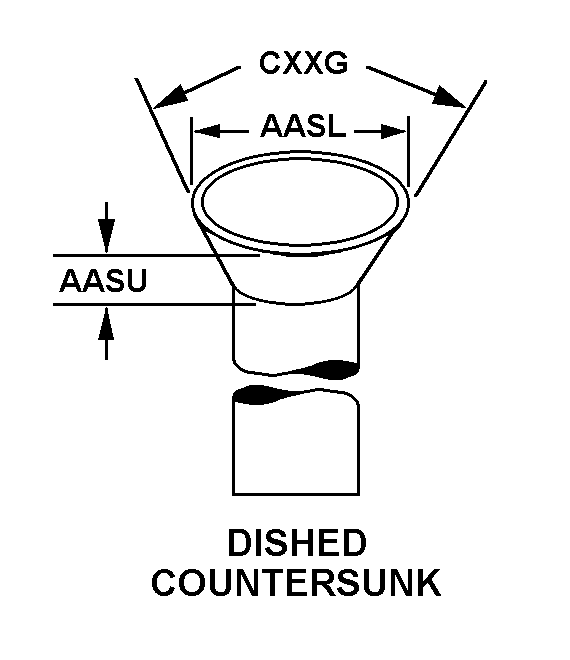

| HEAD STYLE | U1 DISHED COUNTERSUNK |
| HEAD DIAMETER | 0.431 INCHES NOMINAL |
| HEAD HEIGHT | 0.104 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |

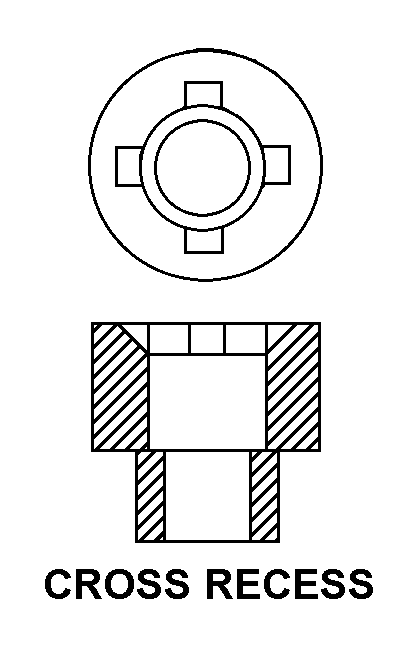

| INTERNAL DRIVE STYLE | W3 CROSS RECESS |
| HOLE SIZE FOR WHICH DESIGNED | 0.264 INCHES NOMINAL |
| MATERIAL THICKNESS RANGE FOR WHICH DESIGNED | 0.432 TO 0.442 INCHES |
| SCREW MINIMUM LENGTH FOR WHICH DESIGNED | 0.432 INCHES |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SLEEVE-ADJUSTABLE PRELOAD,SELF SUSTAINING,POSITIVE MECHANICAL LOCK, 100 DEGREE FLUSH HEAD, LONG THREAD,INCONEL 718 (108 KSI FSU). |
Restrictions/Controls & Freight Information | NSN 5340-01-517-0664
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-517-0664
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | QE | FIGHTERAIRCRAFT-FIRST(F18 E/F) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
