NSN 5340-01-518-4328 8209SS12, 8209-SS-12, 01-518-4328
Product Details | HANDLE FERRULE
5340-01-518-4328 An item specifically designed to be fitted around the ends of a handle to reinforce, or to reduce the interior diameter to facilitate mounting.
Part Alternates: 8209SS12, 8209-SS-12, 5340-01-518-4328, 01-518-4328, 5340015184328, 015184328
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 MAR 2004 | 01-518-4328 | 42535 ( FERRULE, HANDLE ) |

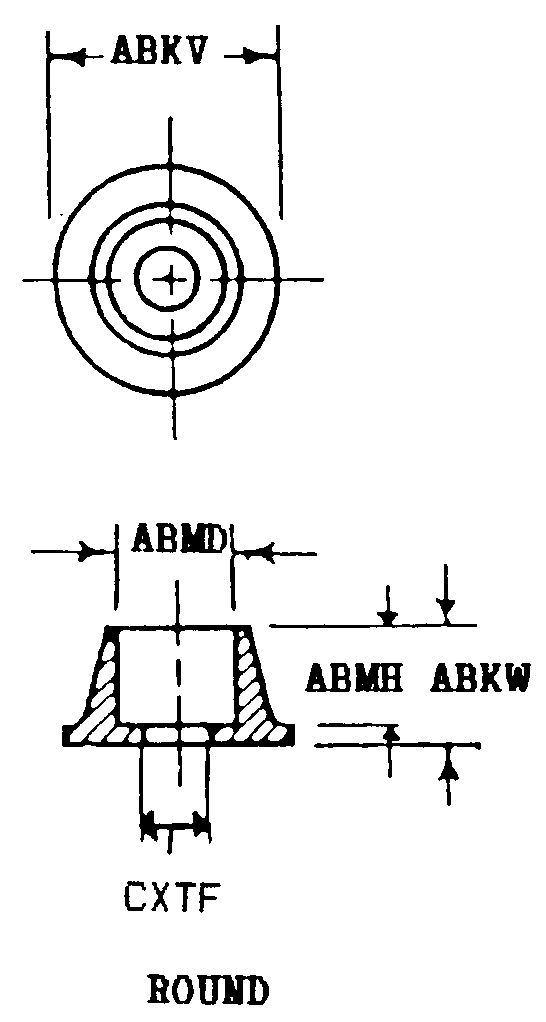

Drawings & Photos | NSN 5340-01-518-4328
Cross Reference | NSN 5340-01-518-4328
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8209-SS-12 | 51506 | ACCURATE SCREWMACHINE CORPORATION DBA A S M |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-518-4328
Technical Data | NSN 5340-01-518-4328
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-A-581, 582-95B, 303 SERIES, COND A ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072-C MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | P4 ROUND |
| OUTSIDE DIAMETER | 0.875 INCHES NOMINAL |
| OVERALL HEIGHT | 0.562 INCHES NOMINAL |
| RECESS DIAMETER | 0.510 INCHES NOMINAL |
| RECESS DEPTH | 0.375 INCHES NOMINAL |
| HOLE DIAMETER | 0.281 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-01-518-4328
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
