NSN 5340-01-524-9063 5251061, 525106-1, 01-524-9063
Product Details | LOOP CLAMP
5340-01-524-9063 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: 5251061, 525106-1, 5340-01-524-9063, 01-524-9063, 5340015249063, 015249063
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 OCT 2004 | 01-524-9063 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-01-524-9063
Demand History | NSN 5340-01-524-9063
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-524-9063 | 2025-04-114 | 16 | DIBBS |
| 5340-01-524-9063 | 2023-01-26 | 5 | DIBBS |
| 5340-01-524-9063 | 2022-11-331 | 15 | DIBBS |
| 5340-01-524-9063 | 2019-04-93 | 11 | DIBBS |
| 5340-01-524-9063 | 2019-01-24 | 13 | DIBBS |
| 5340-01-524-9063 | 2019-01-16 | 13 | DIBBS |
| 5340-01-524-9063 | 2017-07-208 | 13 | DIBBS |
| 5340-01-524-9063 | 2017-02-43 | 13 | DIBBS |
| 5340-01-524-9063 | 2016-06-168 | 10 | DIBBS |
| 5340-01-524-9063 | 2016-04-111 | 10 | DIBBS |
| 5340-01-524-9063 | 2010-05-140 | 25 | DIBBS |
| 5340-01-524-9063 | 2010-05-126 | 15 | DIBBS |
| 5340-01-524-9063 | 2010-02-56 | 16 | DIBBS |
| 5340-01-524-9063 | 2009-12-356 | 2 | DIBBS |
| 5340-01-524-9063 | 2009-09-271 | 25 | DIBBS |
| 5340-01-524-9063 | 2009-08-229 | 2 | DIBBS |
| 5340-01-524-9063 | 2009-08-218 | 5 | DIBBS |
Cross Reference | NSN 5340-01-524-9063
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 525106-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-524-9063
Related Products | NSN 5340-01-524-9063
Technical Data | NSN 5340-01-524-9063
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

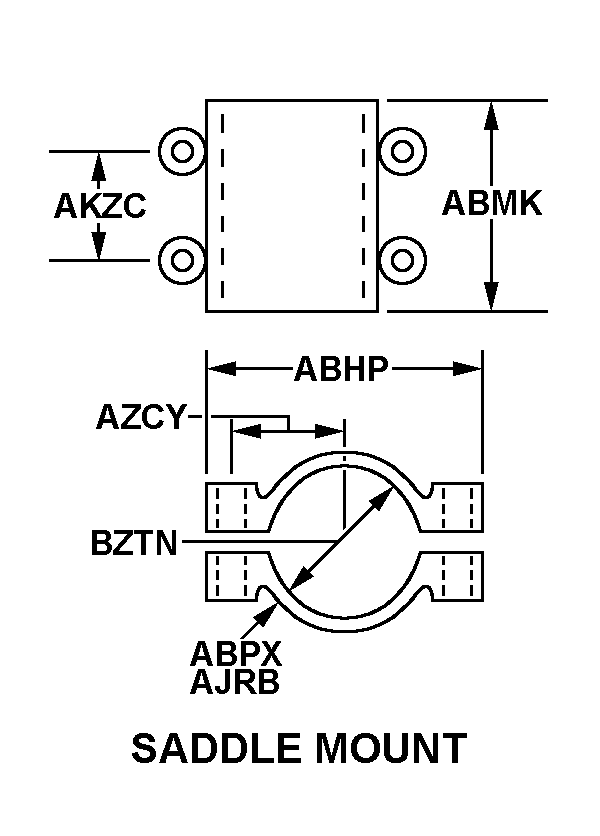

| STYLE DESIGNATOR | A27 SADDLE MOUNT |
| OVERALL LENGTH | 8.000 INCHES NOMINAL |
| OVERALL WIDTH | 5.500 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.375 INCHES NOMINAL |
| MATERIAL DIAMETER | 2.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND HOLES | 5.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 2.000 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 1.545 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | 4R/5R GOG ITEMS MANAGED BY BRASO |
Restrictions/Controls & Freight Information | NSN 5340-01-524-9063
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-524-9063
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | EY | 4R/5R Cog items managed by BRASO |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
