NSN 5340-01-526-1004 HD12026106, HD12026-106, 01-526-1004
Product Details | CLAMP BOLT ASSEMBLY
5340-01-526-1004 A threaded item having an eye on one end designed to accommodate a hinge pin, or a pin inserted at right angles to the shank. It must have an adjusting nut assembled on the threads. The end of the threads may be headed, or a cap nut or similar device attached to prevent disassembly of the adjusting nut. It may also have a washer, collar or retainer assembled between the nut and hinge mounted end. Includes items having a bracket or lug mounting. It is used to rigidly clamp items to a structure, instrument, or the like.
Part Alternates: HD12026106, HD12026-106, 5340-01-526-1004, 01-526-1004, 5340015261004, 015261004
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 DEC 2004 | 01-526-1004 | 20271 ( BOLT ASSEMBLY, CLAMP ) |
Drawings & Photos | NSN 5340-01-526-1004
Demand History | NSN 5340-01-526-1004
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-526-1004 | 2023-05-122 | 4 | US |
| HD12026106 | 2018-03-66 | 30 | US |
| 5340-01-526-1004 | 2018-03-66 | 30 | US |
Cross Reference | NSN 5340-01-526-1004
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HD12026-106 | 0CBU7 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-526-1004
Technical Data | NSN 5340-01-526-1004
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/3 FED SPEC SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | ANODIZE NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE III,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE NUT |

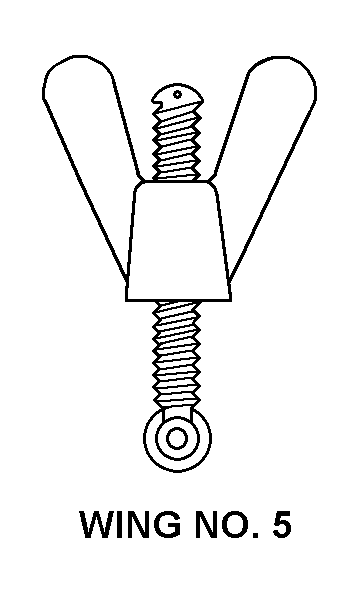

| STYLE DESIGNATOR | A5 WING NO. 5 |
