Product Details | MOUNTING PLATE
5340-01-531-5029 A metallic or nonmetallic item which is rigid, flat and generally smooth. Its thickness is small in comparison to its length and width. It is designed for mounting another item and may have drilled or threaded holes or other facilities for mounting to a supporting object or surface. See SUPPORT, as modified. Do not use if a more specific name applies.2121420000025100052Vehicular Cab, Body, and Frame Structural Components2590000053400020Hardware, Commercial53420023Hardware, Weapon System589500005905000059450020Relays and Solenoids5950000059750032Electrical Hardware and Supplies
Part Alternates: 1133271, 113327-1, 5340-01-531-5029, 01-531-5029, 5340015315029, 015315029
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 JUL 2005 | 01-531-5029 | 40223 ( PLATE, MOUNTING ) |

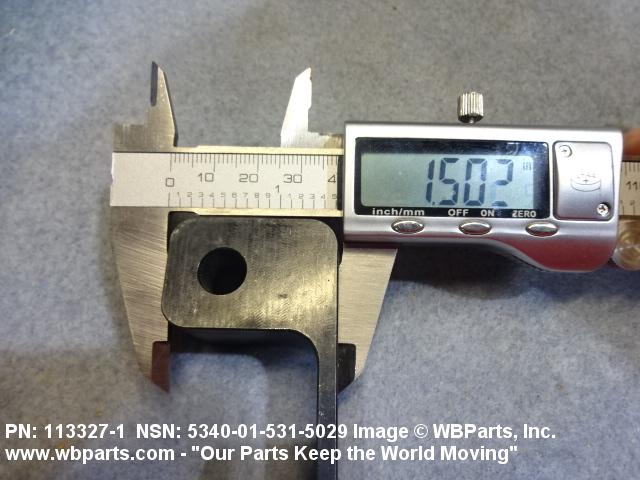

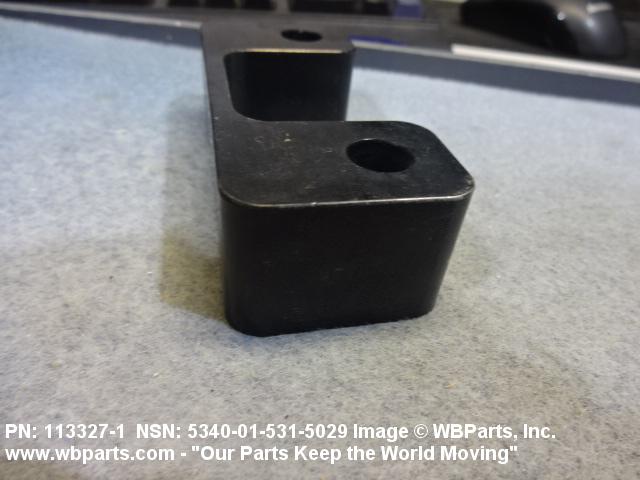

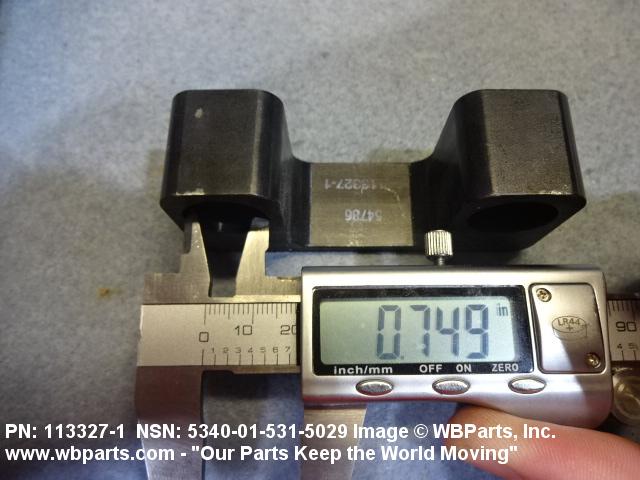

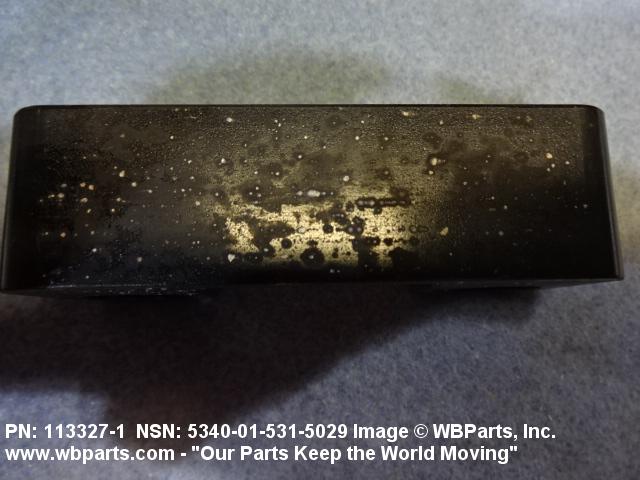

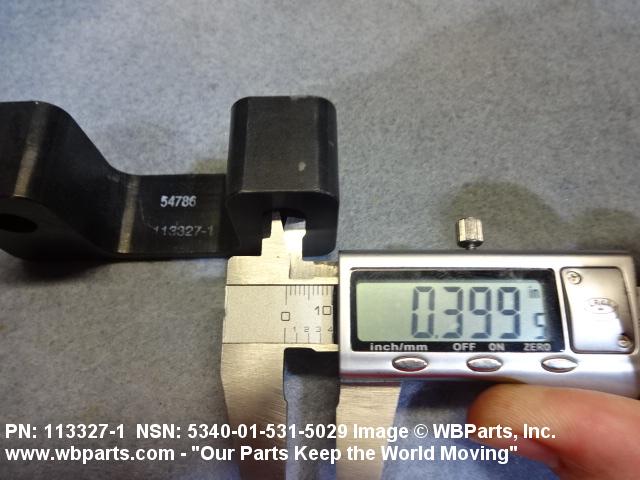

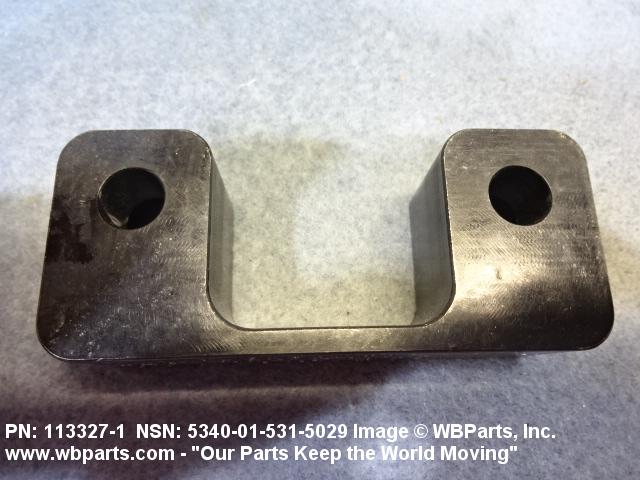

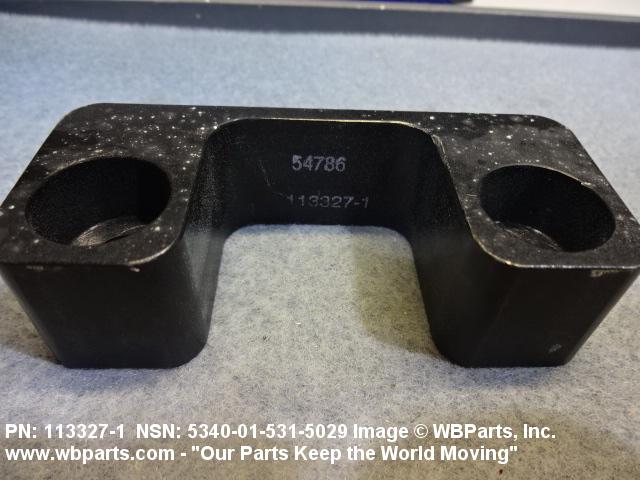

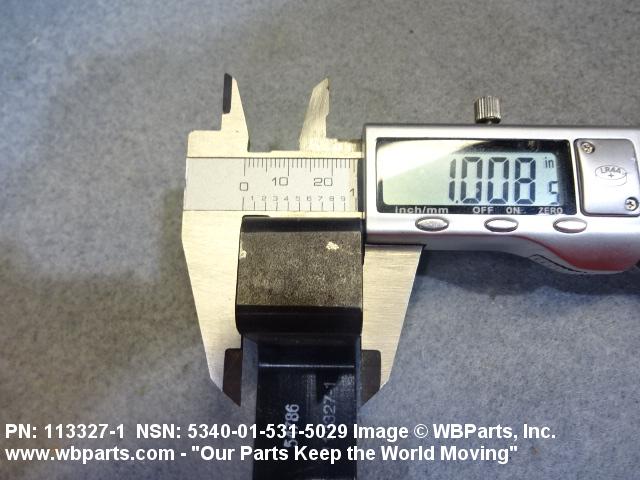

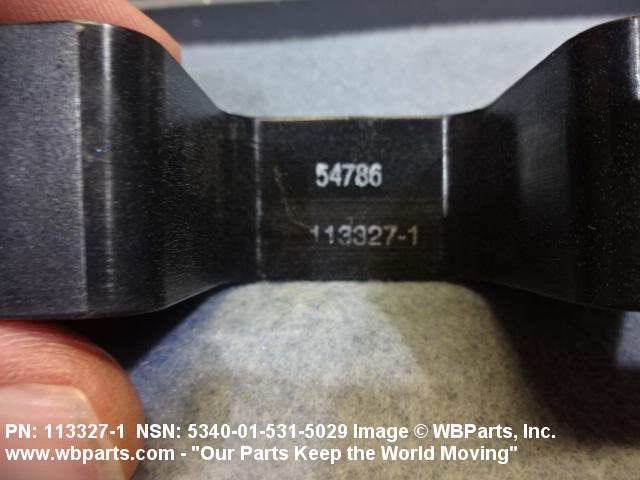

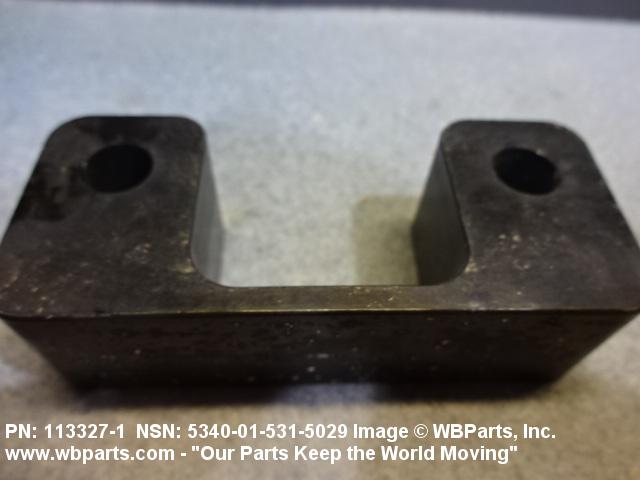

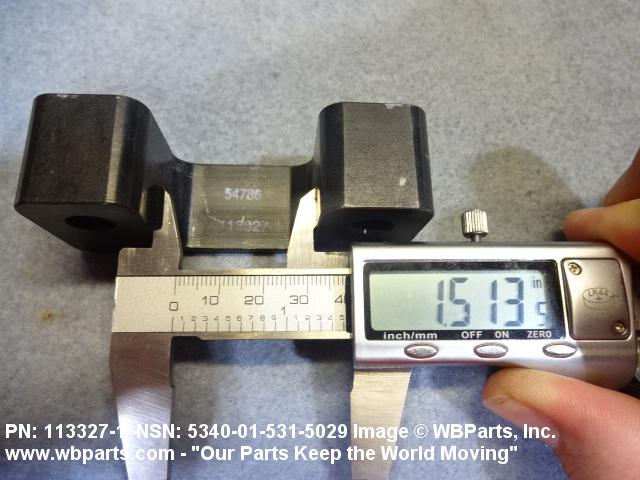

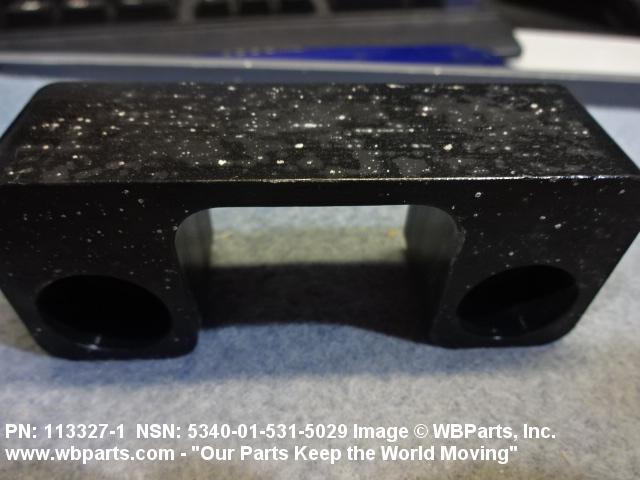

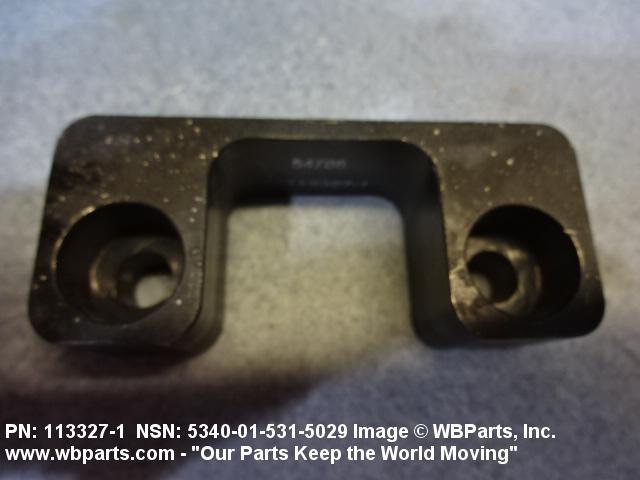

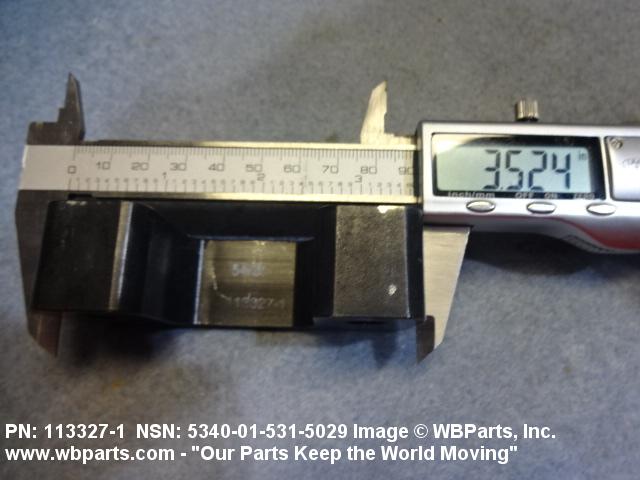

Drawings & Photos | NSN 5340-01-531-5029
Demand History | NSN 5340-01-531-5029
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-531-5029 | 2019-01-29 | 53 | United States |
| 5340-01-531-5029 | 2018-11-07 | 90 | DIBBS |
| 5340-01-531-5029 | 2011-07-21 | 61 | DIBBS |
| 5340-01-531-5029 | 2011-06-29 | 61 | DIBBS |
| 5340-01-531-5029 | 2010-07-12 | 83 | DIBBS |
| 5340-01-531-5029 | 2010-04-03 | 110 | DIBBS |
| 5340-01-531-5029 | 2010-02-22 | 215 | DIBBS |
| 5340-01-531-5029 | 2010-01-06 | 78 | DIBBS |
| 5340-01-531-5029 | 2009-09-01 | 81 | DIBBS |
| 5340-01-531-5029 | 2009-07-16 | 110 | DIBBS |
| 5340-01-531-5029 | 2009-07-02 | 93 | DIBBS |
| 5340-01-531-5029 | 2008-01-15 | 49 | DIBBS |
Cross Reference | NSN 5340-01-531-5029
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 113327-1 | 54786 | BAE SYSTEMS AEROSPACE & DEFENSE GROUP INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-01-531-5029
Related Products | NSN 5340-01-531-5029
5340-01-531-5043, 5340-01-531-5053, 5340-01-531-5058, 5340-01-531-5091, 5340-01-531-5129
Technical Data | NSN 5340-01-531-5029
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | PART OF THE UP-ARMOR KIT USED ON THE ARMORED VERSION OF THE PALLETIZED LOADING SYSTEM |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SUPPORT, STRIKER, DOOR |
| END ITEM IDENTIFICATION | 2320-01-523-1047 ARMORED PLS (PALLETIZED LOADING SYSTEM) |
Restrictions/Controls & Freight Information | NSN 5340-01-531-5029
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-531-5029
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
