Product Details | SYNCHRO CLAMP
5340-01-541-1425 A clamp designed to hold an item in position, alignment or in close proximity by rigidly gripping the projecting rim, ridge, collar or edge of the item. A lockwasher, bolt, screw or the like may be a part of the item of supply.
Part Alternates: NMSC41204, NMSC4120-4, SF89210014, SF892100-14, 9D030914, 9D0309-14, 5340-01-541-1425, 01-541-1425, 5340015411425, 015411425
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JUN 2006 | 01-541-1425 | 40268 ( CLAMP, SYNCHRO ) |
Drawings & Photos | NSN 5340-01-541-1425
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-541-1425
Related Products | NSN 5340-01-541-1425
Technical Data | NSN 5340-01-541-1425
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMSTD4066 ASSN STD SINGLE MATERIAL RESPONSE |

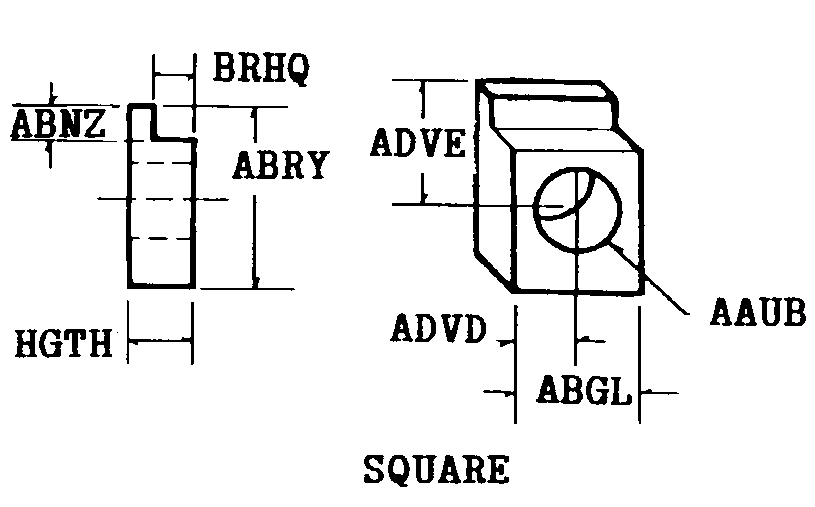

| STYLE DESIGNATOR | C1 SQUARE |
