Product Details | GENERAL PURPOSE RESILIENT MOUNT
5340-01-546-6826 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for an item to be isolated. Excludes MOUNT, RESILIENT, WEAPON SYSTEM; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dashpots, grommets and shock pads.
Part Alternates: 7020008, 7020008004, 7020008-004, 5340-01-546-6826, 01-546-6826, 5340015466826, 015466826
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 DEC 2006 | 01-546-6826 | 53590 ( MOUNT, RESILIENT, UTILITY ) |
Drawings & Photos | NSN 5340-01-546-6826
Demand History | NSN 5340-01-546-6826
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-546-6826 | 2016-02-33 | 3 | DIBBS |
| 5340-01-546-6826 | 2015-02-41 | 6 | DIBBS |
| 5340-01-546-6826 | 2014-07-188 | 1 | DIBBS |
| 5340-01-546-6826 | 2014-06-175 | 1 | DIBBS |
| 5340-01-546-6826 | 2014-04-111 | 1 | DIBBS |
| 5340-01-546-6826 | 2013-04-113 | 1 | DIBBS |
| 5340-01-546-6826 | 2012-05-135 | 1 | DIBBS |
| 5340-01-546-6826 | 2012-03-70 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-546-6826
Technical Data | NSN 5340-01-546-6826
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY CORE |

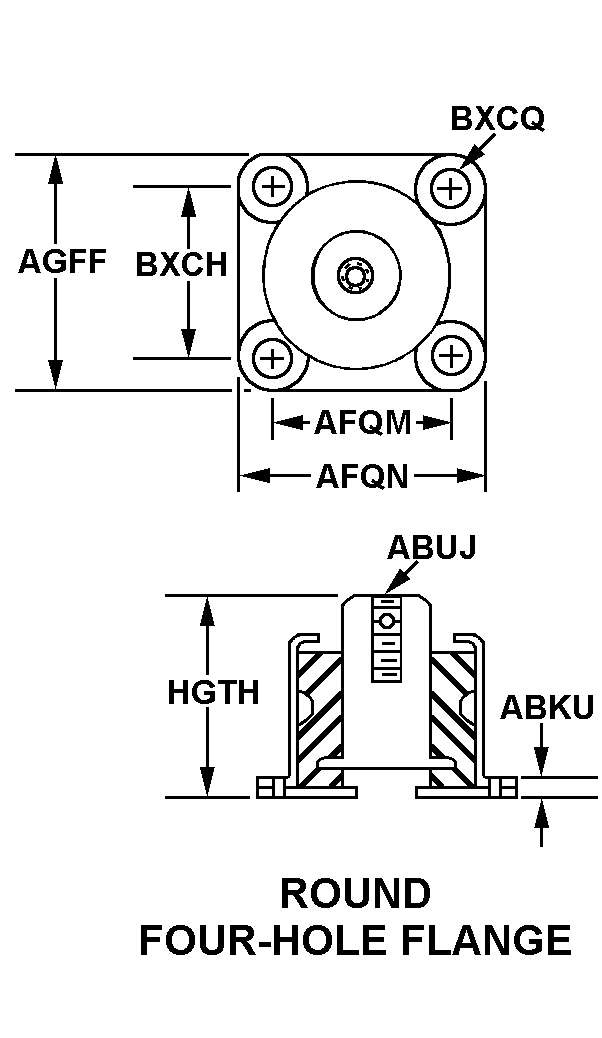

| STYLE DESIGNATOR | 76 ROUND FOUR-HOLE FLANGE |
| FLANGE THICKNESS | 0.156 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.938 INCHES NOMINAL |
| FLANGE LENGTH | 2.375 INCHES NOMINAL |
| FLANGE WIDTH | 2.375 INCHES NOMINAL |
| SHORTEST DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.938 INCHES NOMINAL |
| FLANGE MOUNTING HOLE DIAMETER | 0.201 INCHES NOMINAL |
| HEIGHT | 1.250 INCHES MINIMUM AND 1.940 INCHES MAXIMUM |
| THREAD SIZE | 0.375 ALL THREADED PORTIONS |
| SPECIAL FEATURES | THREAD SIZE AND TYPE 0.375-24 UNF-2B X 0.500 DEEP |
| END ITEM IDENTIFICATION | AN/USG-3,CEC,FY04. AN/USG-3,CEC,FY03. AN/USG-3,CEC,LRIP IV/FY02.N AN/USG-3,CEC,LRIP IIIA |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | MOUNT,RESILIENT |
