Product Details | FLUSH CATCH

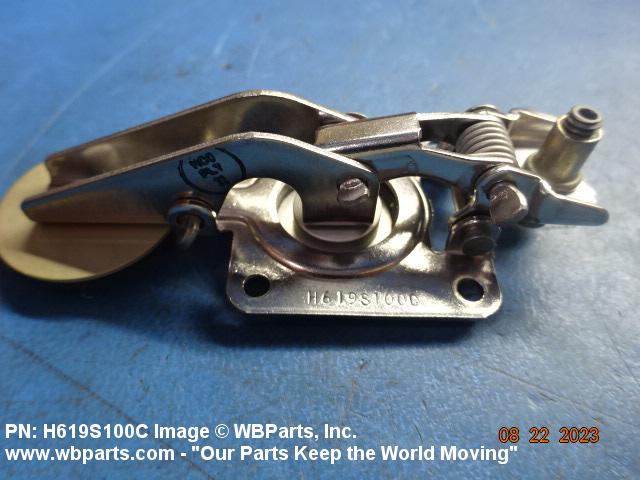

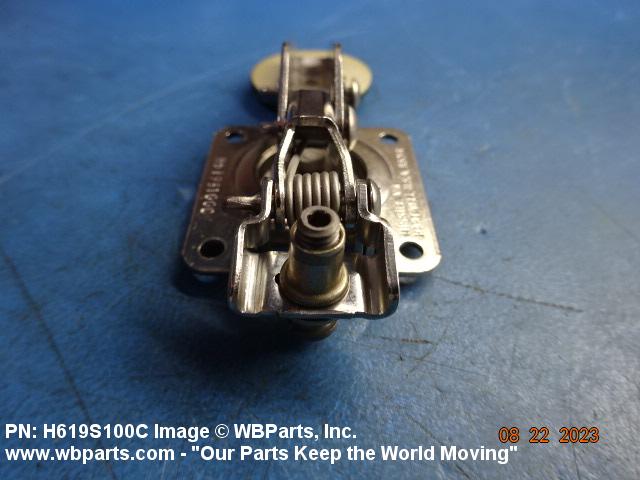

5340-01-547-6164 A positive fastening device having an integral flush lever or button actuator designed to be mounted so that when in locked position no portion protrudes above the exterior surface of the door, cover, or the like. Excludes CATCH (as modified) and LATCH (as modified).
Part Alternates: C79602F, C7960-2F, H619S100C, 9363100, 9363-100, 5340-01-547-6164, 01-547-6164, 5340015476164, 015476164
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JAN 2007 | 01-547-6164 | 20262 ( CATCH, FLUSH ) |
Drawings & Photos | NSN 5340-01-547-6164
Demand History | NSN 5340-01-547-6164
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| H619S100C | 2023-08-10 | 12 | United States |
| 9363-100 | 2023-05-14 | 75 | DIBBS |
| H619S100C | 2023-05-14 | 75 | DIBBS |
| HK5L6190-S100 | 2023-05-14 | 75 | DIBBS |
| 9363-100 | 2023-01-09 | 101 | DIBBS |
| H619S100C | 2023-01-09 | 101 | DIBBS |
| HK5L6190-S100 | 2023-01-09 | 101 | DIBBS |
| 9363-100 | 2022-12-29 | 101 | DIBBS |
| H619S100C | 2022-12-29 | 101 | DIBBS |
| HK5L6190-S100 | 2022-12-29 | 101 | DIBBS |
| 9363-100 | 2022-08-11 | 65 | DIBBS |
| H619S100C | 2022-08-11 | 65 | DIBBS |
| HK5L6190-S100 | 2022-08-11 | 65 | DIBBS |
| 9363-100 | 2022-06-24 | 16 | DIBBS |
| H619S100C | 2022-06-24 | 16 | DIBBS |
| HK5L6190-S100 | 2022-06-24 | 16 | DIBBS |
| 9363-100 | 2022-05-08 | 16 | DIBBS |
| H619S100C | 2022-05-08 | 16 | DIBBS |
| HK5L6190-S100 | 2022-05-08 | 16 | DIBBS |
| 9363-100 | 2022-03-23 | 97 | DIBBS |
| H619S100C | 2022-03-23 | 97 | DIBBS |
| HK5L6190-S100 | 2022-03-23 | 97 | DIBBS |
| 5340-01-547-6164 | 2022-03-08 | 10 | Singapore |
| 9363-100 | 2022-02-24 | 40 | DIBBS |
| H619S100C | 2022-02-24 | 40 | DIBBS |
| HK5L6190-S100 | 2022-02-24 | 40 | DIBBS |
| 9363-100 | 2021-12-15 | 28 | DIBBS |
| H619S100C | 2021-12-15 | 28 | DIBBS |
| HK5L6190-S100 | 2021-12-15 | 28 | DIBBS |
| 5340-01-547-6164 | 2021-12-07 | 48 | US |
| 5340-01-547-6164 | 2021-11-11 | 6 | US |
| 9363-100 | 2021-08-29 | 16 | DIBBS |
| H619S100C | 2021-08-29 | 16 | DIBBS |
| HK5L6190-S100 | 2021-08-29 | 16 | DIBBS |
| 9363-100 | 2020-04-30 | 93 | DIBBS |
| H619S100C | 2020-04-30 | 93 | DIBBS |
| HK5L6190-S100 | 2020-04-30 | 93 | DIBBS |
| 9363-100 | 2020-03-19 | 87 | DIBBS |
| H619S100C | 2020-03-19 | 87 | DIBBS |
| HK5L6190-S100 | 2020-03-19 | 87 | DIBBS |
| 5340-01-547-6164 | 2019-10-03 | 25 | IL |
| 9363-100 | 2019-06-06 | 93 | DIBBS |
| H619S100C | 2019-06-06 | 93 | DIBBS |
| HK5L6190-S100 | 2019-06-06 | 93 | DIBBS |
| 5340-01-547-6164 | 2018-09-19 | 108 | DIBBS |
| 5340-01-547-6164 | 2018-06-14 | 126 | DIBBS |
| 5340-01-547-6164 | 2018-06-06 | 1 | DIBBS-RFPs |
| 5340-01-547-6164 | 2018-05-30 | 90 | DIBBS |
| 5340-01-547-6164 | 2018-02-12 | 89 | DIBBS |
| 5340-01-547-6164 | 2018-02-06 | 96 | DIBBS |
| 5340-01-547-6164 | 2017-12-06 | 89 | DIBBS |
| H619S100C | 2017-06-21 | 4 | Israel |
| 5340-01-547-6164 | 2014-12-02 | 5 | South Korea |
| 5340-01-547-6164 | 2014-09-15 | 1 | US |
| 5340-01-547-6164 | 2014-04-17 | 72 | DIBBS |
| 5340-01-547-6164 | 2014-04-06 | 72 | DIBBS |
| 5340-01-547-6164 | 2014-03-25 | 90 | DIBBS |
| 5340-01-547-6164 | 2014-03-10 | 90 | DIBBS |
| H619S100C | 2014-02-25 | 4 | United States |
| H619S100C | 2012-11-16 | 5 | US |
| H619S100C | 2012-11-01 | 10 | US |
| 5340-01-547-6164 | 2012-09-06 | 650 | DIBBS |
| 5340-01-547-6164 | 2012-08-07 | 167 | DIBBS |
| 5340-01-547-6164 | 2012-02-28 | 339 | DIBBS |
| C79602F | 2011-02-24 | 40 | US |
| H619S100C | 2008-09-18 | 350 | United States |
| H619S100C | 2008-06-24 | 10 | IL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-01-547-6164
Related Products | NSN 5340-01-547-6164
5340-01-547-6249, 5340-01-547-6279, 5340-01-547-6295, 5340-01-547-6299, 5340-01-547-6304
Technical Data | NSN 5340-01-547-6164
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 316 MOUNTING BRACKET STEEL COMP 631 SPRING |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-25043 MIL SPEC 1ST MATERIAL RESPONSE OR AMS5673 ASSN STD 2ND MATERIAL RESPONSE MOUNTING BRACKET AMS5673 ASSN STD SINGLE MATERIAL RESPONSE SPRING |
| SURFACE TREATMENT | PASSIVATE MOUNTING BRACKET PASSIVATE SPRING |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE MOUNTING BRACKET QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING |

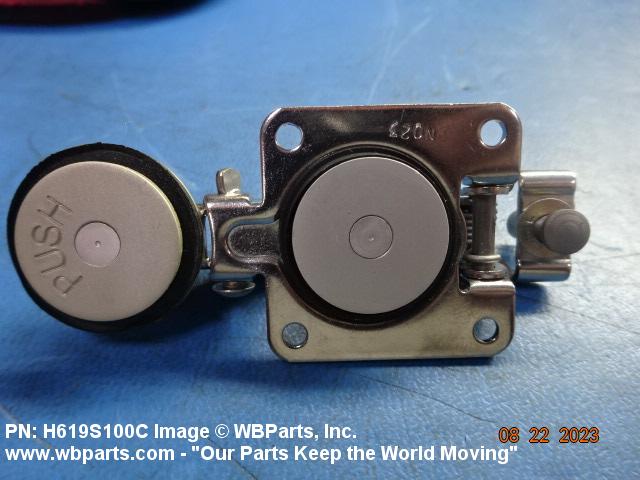

| STYLE DESIGNATOR | B3 BUTTON ACTUATOR |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |

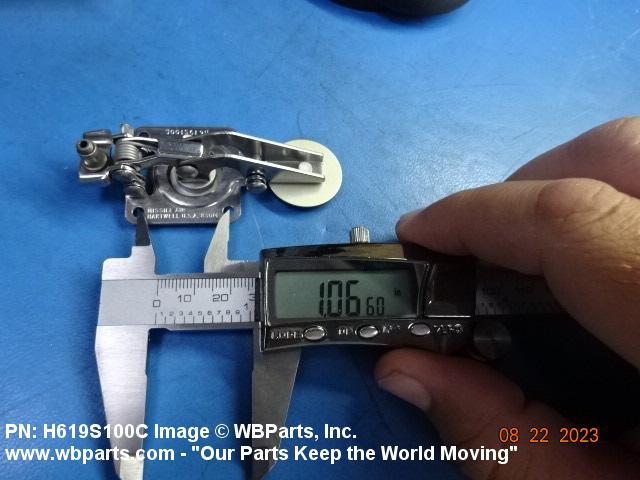

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.062 INCHES MINIMUM AND 1.067 INCHES MAXIMUM |

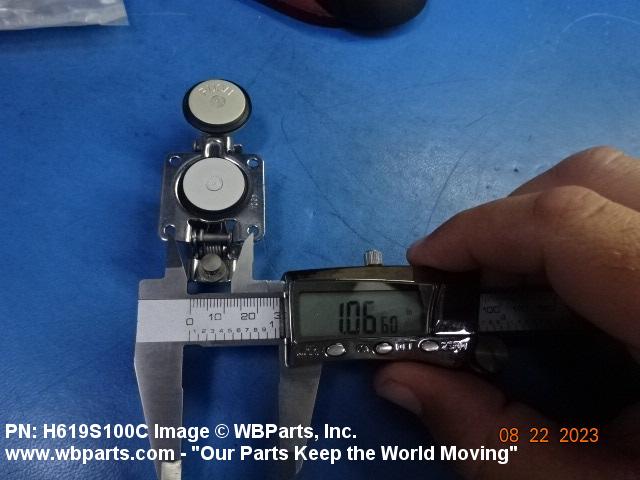

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.062 INCHES MINIMUM AND 1.067 INCHES MAXIMUM |
| LEVER OFFSET DISTANCE | 0.100 INCHES NOMINAL |
| BOLT OFFSET DISTANCE | 0.240 INCHES NOMINAL |
| SPECIAL FEATURES | BUTTONS-MATERIAL 2024-T3, 2024-T351, 2024-T4 PER QQ-A-250/4 OR QQ-A-225/6, FINISH ANODIZE PER MIL-A-8625 TYPEII, GASKET-MATERIAL SYNTHETIC RUBBER PER AMS 3240 (40 SHORE) |
| III END ITEM IDENTIFICATION | F-22 RAPTOR |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CATCH, CLAMPING |
Restrictions/Controls & Freight Information | NSN 5340-01-547-6164
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-547-6164
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
