NSN 5340-01-547-6874 STC1100, STC1-100, 01-547-6874
Product Details | SPRING TENSION CLIP
5340-01-547-6874 A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available.
Part Alternates: STC1100, STC1-100, 5340-01-547-6874, 01-547-6874, 5340015476874, 015476874
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JAN 2007 | 01-547-6874 | 20815 ( CLIP, SPRING TENSION ) |

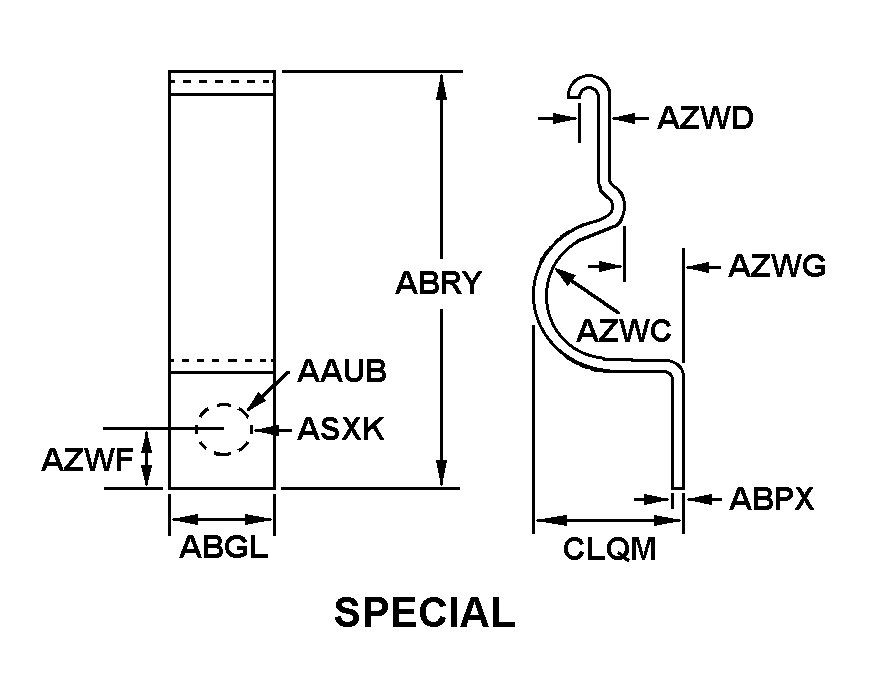

Drawings & Photos | NSN 5340-01-547-6874
Cross Reference | NSN 5340-01-547-6874
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| STC1-100 | 06915 | RICHCO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-547-6874
Technical Data | NSN 5340-01-547-6874
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1050 OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| COLOR | BLACK |
| STYLE DESIGNATOR | C43 SPECIAL |
| HOLE DIAMETER | 0.156 INCHES NOMINAL |
| WIDTH | 0.380 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.020 INCHES NOMINAL |
| LENGTH | 1.320 INCHES NOMINAL |
| LOOP RADIUS | 0.230 INCHES NOMINAL |
| DISTANCE FROM END TO HOLE NEAREST LOOP | 0.180 INCHES NOMINAL |
| HOLE QUANTITY | 1 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | METAL SPRING CLAMP |
Restrictions/Controls & Freight Information | NSN 5340-01-547-6874
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
