NSN 5340-01-565-9038 NA0203040VH016, NA0203-040VH016, 01-565-9038
Product Details | SNAP-IN THREADED STANDOFF

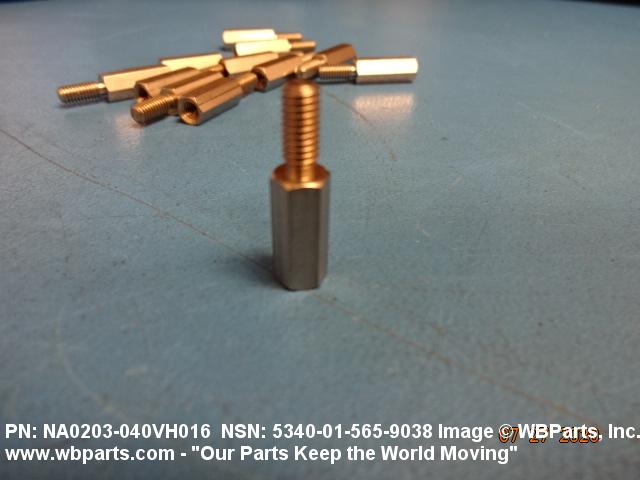

5340-01-565-9038 A standoff with one threaded end and projection on the other end which can be snapped, press fitted or locked into position.
Part Alternates: NA0203040VH016, NA0203-040VH016, 5340-01-565-9038, 01-565-9038, 5340015659038, 015659038
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 AUG 2008 | 01-565-9038 | 40279 ( STANDOFF, THREADED, SNAP-IN ) |

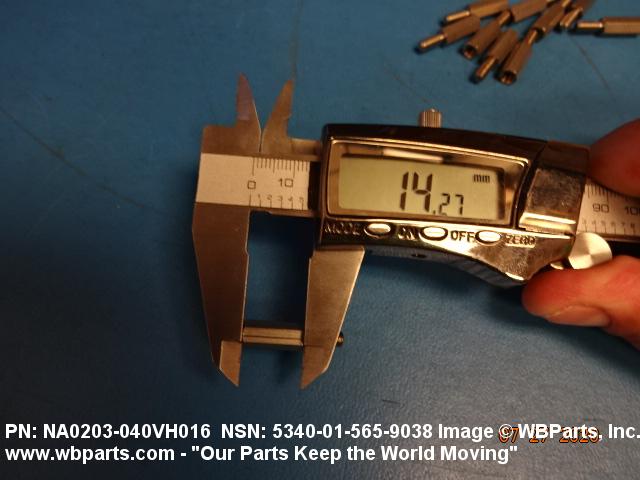

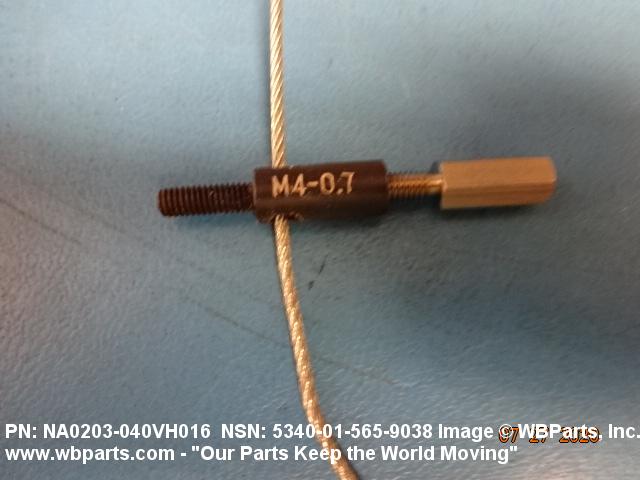

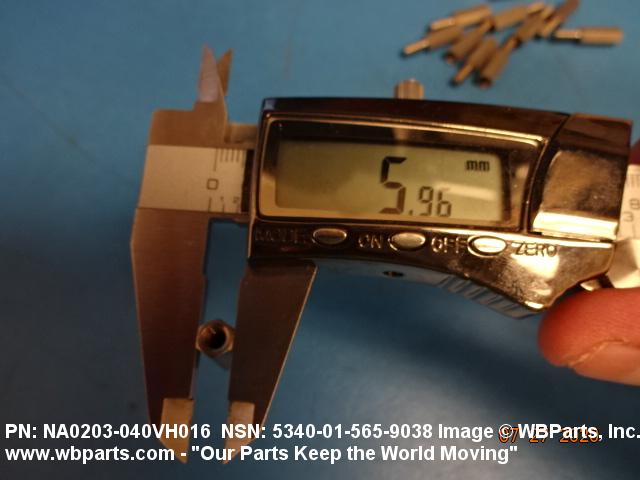

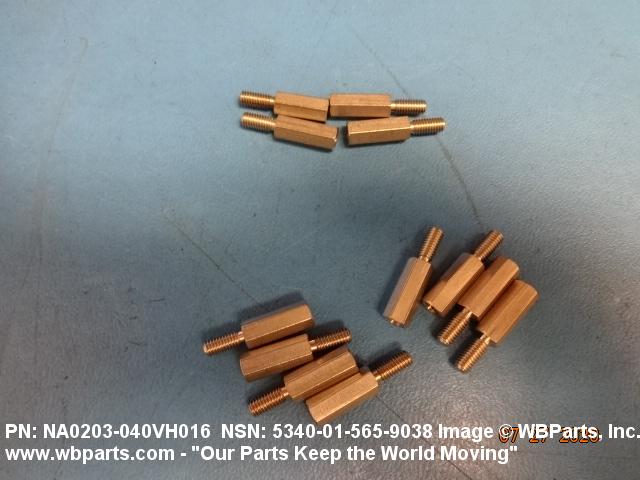

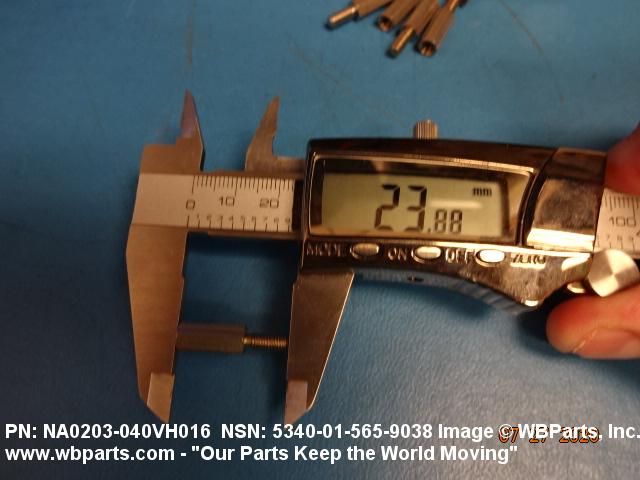

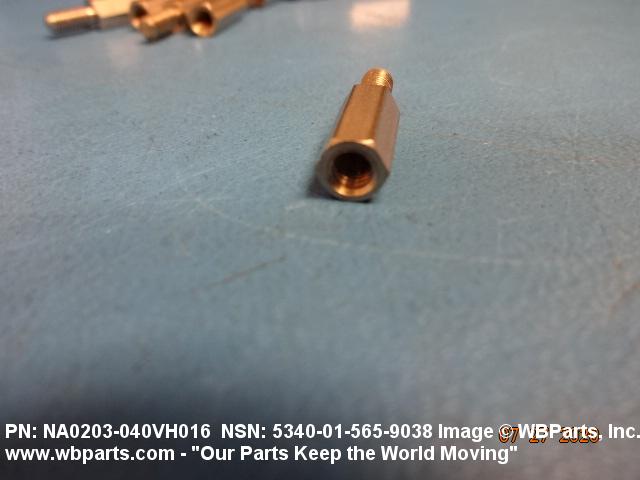

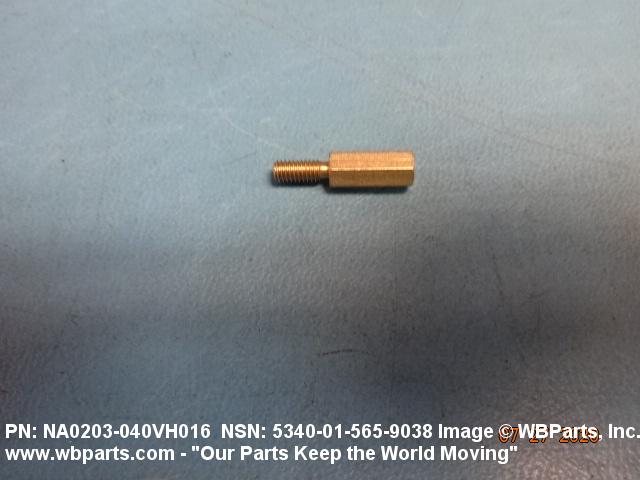

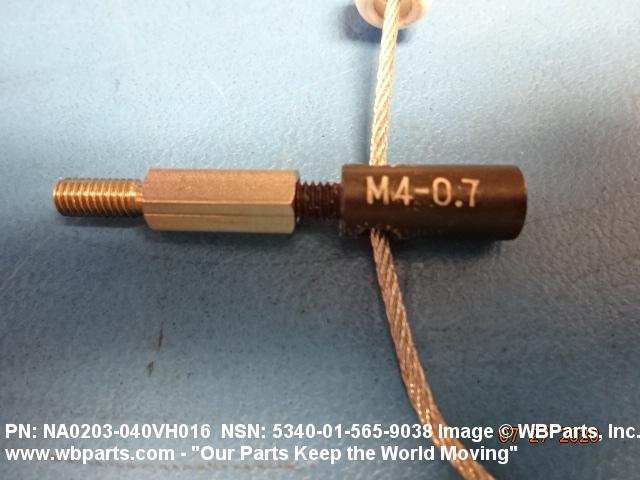

Drawings & Photos | NSN 5340-01-565-9038
Demand History | NSN 5340-01-565-9038
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-565-9038 | 2020-07-198 | 12 | United States |
| NA0203040VH016 | 2020-07-188 | 12 | United States |
| 5340-01-565-9038 | 2020-05-131 | 14 | DIBBS |
| 5340-01-565-9038 | 2020-04-119 | 1 | DIBBS-RFPs |
| 5340-01-565-9038 | 2019-01-30 | 12 | DIBBS |
| 5340-01-565-9038 | 2018-11-329 | 8 | DIBBS |
| 5340-01-565-9038 | 2018-10-297 | 23 | DIBBS |
| 5340-01-565-9038 | 2018-10-287 | 12 | DIBBS |
| 5340-01-565-9038 | 2018-08-241 | 2 | DIBBS |
| 5340-01-565-9038 | 2017-07-200 | 1 | DIBBS |
Cross Reference | NSN 5340-01-565-9038
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NA0203-040VH016 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-565-9038
Related Products | NSN 5340-01-565-9038
Technical Data | NSN 5340-01-565-9038
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 6 LEFT INTERNAL AND RIGHT EXTERNAL THREAD |
| WIDTH BETWEEN FLATS | 6.0 MILLIMETERS NOMINAL |
| LENGTH | 16.0 MILLIMETERS NOMINAL |
| RIGHT PROJECTION CHAMFER DEPTH | 0.8 MILLIMETERS NOMINAL |
| RIGHT PROJECTION LENGTH | 9.4 MILLIMETERS MINIMUM AND 9.7 MILLIMETERS MAXIMUM |
| LEFT COUNTERSINK ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT PROJECTION CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | MJ LEFT INTERNAL |
| NOMINAL THREAD SIZE | 4.0 MILLIMETERS LEFT INTERNAL |
| THREAD PITCH IN MILLIMETERS | 0.7 LEFT INTERNAL |
| THREAD DIRECTION | RIGHT-HAND LEFT INTERNAL RIGHT-HAND RIGHT EXTERNAL |
| THREAD LENGTH | 16.0 MILLIMETERS NOMINAL LEFT INTERNAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY CONTA | POST, ELECTRICAL-MECHANICAL EQUIPMENT, STUD TYPE, METRIC INER,VEHICULAR EQUIPMENT |
