NSN 5340-01-566-4511 6990410, 01-566-4511, 015664511
Product Details | HALF GROOVED SEGMENT
5340-01-566-4511 An item with a facility on top for holding a clamping device in place that is used to exert pressure. Can have a V or U cross section. Excludes COUPLING HALF, CLAMP GROOVED.
Part Alternates: 6990410, 5340-01-566-4511, 01-566-4511, 5340015664511, 015664511
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 SEP 2008 | 01-566-4511 | 42737 ( SEGMENT, GROOVED, HALF ) |
Drawings & Photos | NSN 5340-01-566-4511
Cross Reference | NSN 5340-01-566-4511
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6990410 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-566-4511
Technical Data | NSN 5340-01-566-4511
| Characteristic | Specifications |
|---|---|

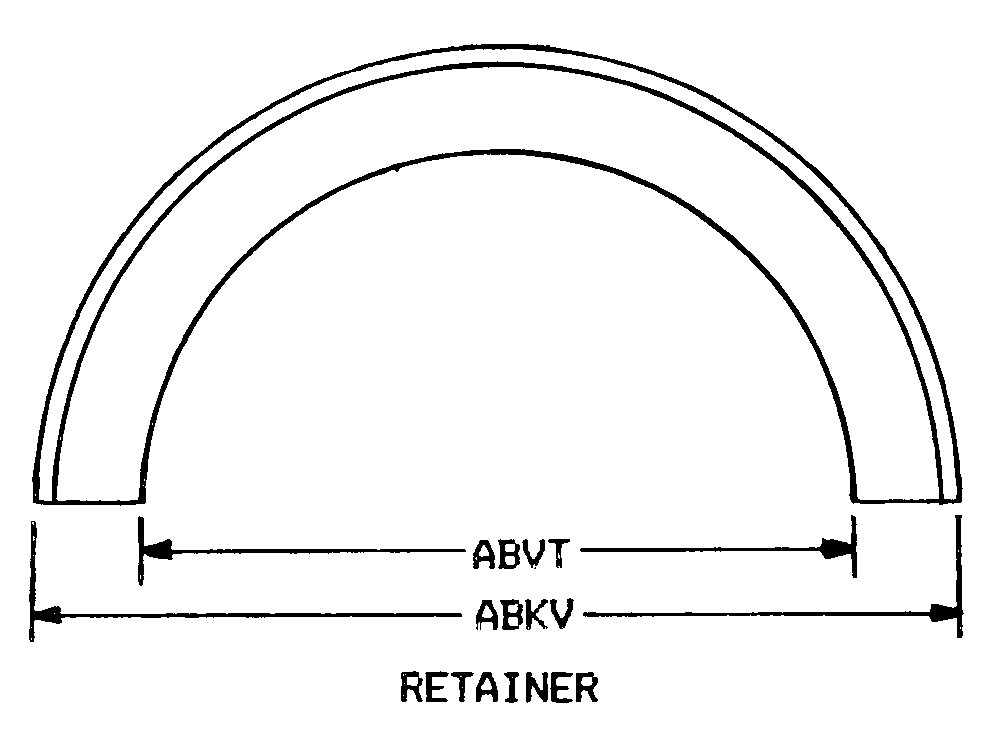

| SEGMENT STYLE | 1 RETAINER |
| SEGMENT QUANTITY | 1 |
| SPECIAL FEATURES | MARKED WITH 53711-6990410 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SEGMENT HALF, WRAPPING STAND |
| III SUPPLEMENTARY FEATURES | 0.500 INCH WIDE; ALUMINUM ALLOY |
| III END ITEM IDENTIFICATION | TDM WRAPPING STAND |
Restrictions/Controls & Freight Information | NSN 5340-01-566-4511
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
