NSN 5340-01-643-2517 NAS578C10B , 01-643-2517, 016432517
Product Details | NUT AND BOLT RETAINER
5340-01-643-2517 An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT.
Part Alternates: NAS578C10B , 5340-01-643-2517, 01-643-2517, 5340016432517, 016432517
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2015084 | 01-643-2517 | 16010 ( RETAINER, NUT AND BOLT ) |

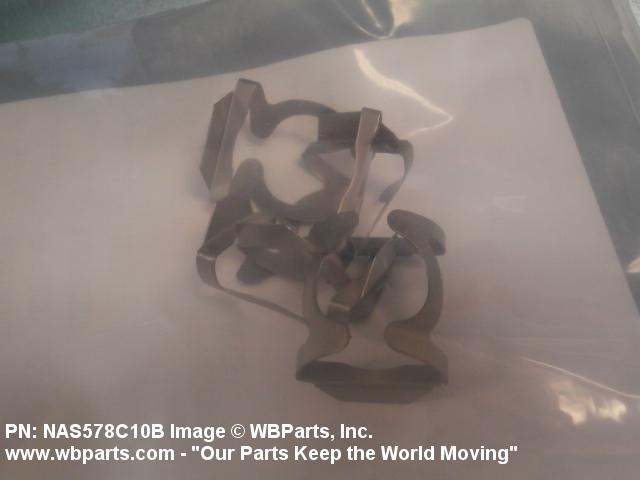

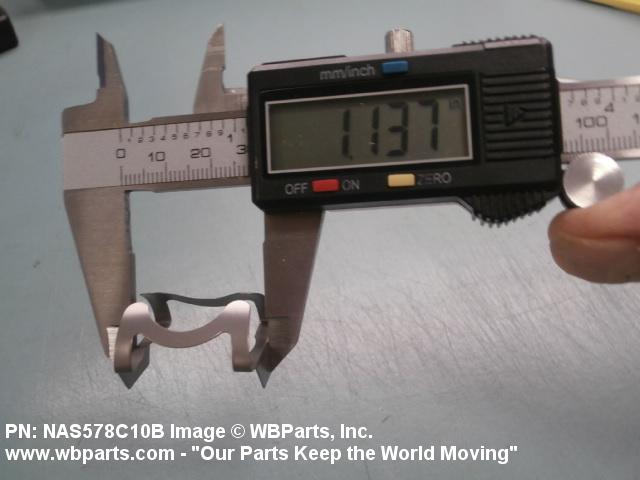

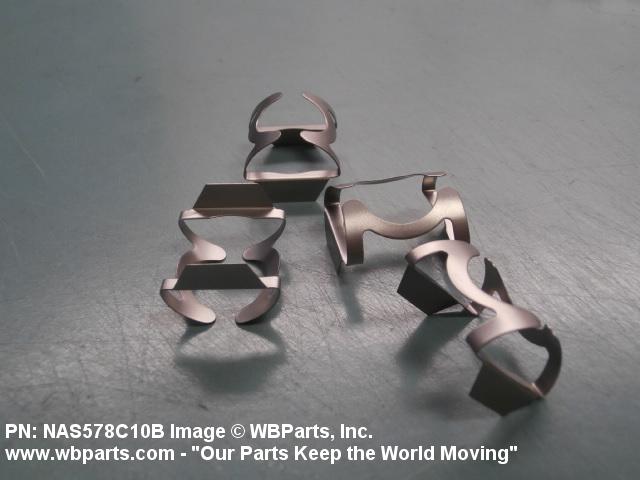

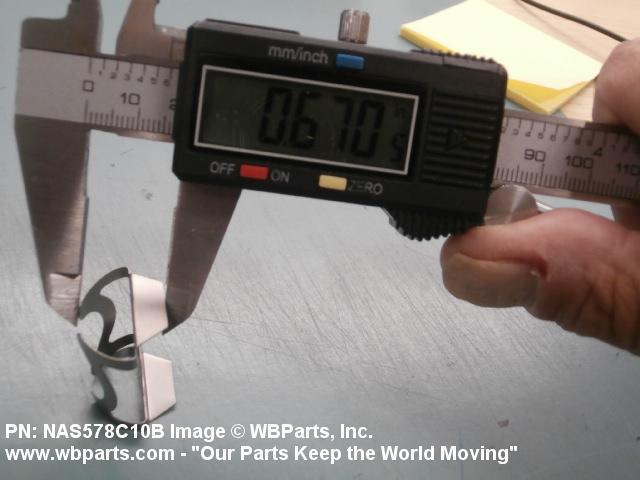

Drawings & Photos | NSN 5340-01-643-2517
Demand History | NSN 5340-01-643-2517
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-643-2517 | 2026-04-99 | 11 | DIBBS |
| 5340-01-643-2517 | 2023-05-151 | 50 | United States |
| 5340-01-643-2517 | 2020-06-157 | 26 | DIBBS |
| 5340-01-643-2517 | 2020-02-40 | 3 | DIBBS |
| 5340-01-643-2517 | 2017-07-206 | 1 | DIBBS |
| 5340-01-643-2517 | 2017-07-199 | 2 | DIBBS |
| 5340-01-643-2517 | 2016-06-171 | 2 | DIBBS |
| NAS578C10B | 2014-02-51 | 1 | United States |
| NAS578C10B | 2013-12-338 | 4 | United States |
| NAS578C10B | 2009-02-58 | 60 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-643-2517
Technical Data | NSN 5340-01-643-2517
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY, AMS 5542 |
| STYLE DESIGNATOR | BARREL |
| OVERALL LENGTH | 1.125 INCHES MINIMUM AND |
| OVERALL HEIGHT | 0.633 INCHES MINIMUM AND |
| OVERALL WIDTH | 1.031 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.012 INCHES MINIMUM |
| GRIP HEIGHT | 0.220 INCHES MINIMUM AND |
| SPECIFICATION/STANDARD DATA | 80205-NAS578 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | RETAINER, FLOATING BARREL NUT |
Restrictions/Controls & Freight Information | NSN 5340-01-643-2517
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5340-01-643-2517
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
