NSN 5342-00-195-3036 001953036
Product Details | THREADED END TENSIONING TIE ROD
5342-00-195-3036 A rod having various cross-sectional shaped bodies with one right hand and one left hand integral externally threaded end. See also TURNBUCKLE; TURNBUCKLE BODY; and ROD, THREADED END.
Part Alternates: 001953036
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-195-3036 | 20759 ( TIE ROD, TENSIONING, THREADED END ) |
Drawings & Photos | NSN 5340-00-195-3036
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-195-3036
Related Products | NSN 5342-00-195-3036
Technical Data | NSN 5342-00-195-3036
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.250 INCHES ROD CONNECTION |
| THREAD CLASS | 3A OVERALL |
| THREAD LENGTH | 1.250 INCHES NOMINAL ROD CONNECTION |

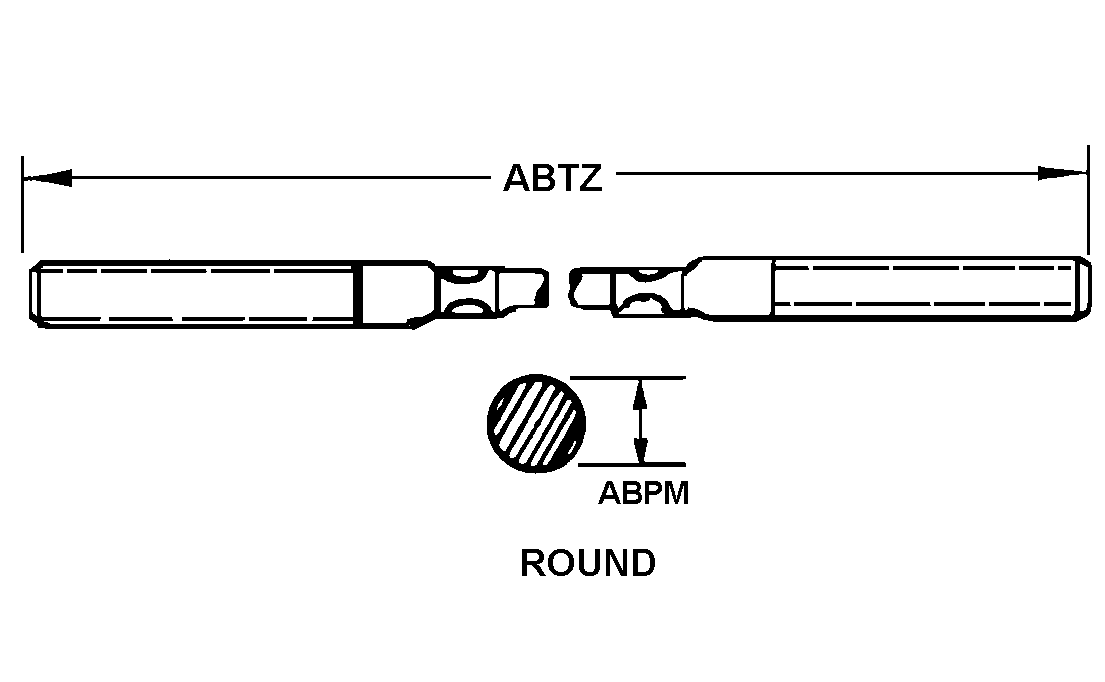

| STYLE DESIGNATOR | 151 ROUND |
| BODY DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 9.813 INCHES NOMINAL |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 1119087 |
Restrictions/Controls & Freight Information | NSN 5342-00-195-3036
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
