NSN 5342-00-350-6408 NL2040T6, 00-350-6408, 003506408
Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-00-350-6408 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: NL2040T6, 5342-00-350-6408, 00-350-6408, 5342003506408, 003506408
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 MAR 1970 | 00-350-6408 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

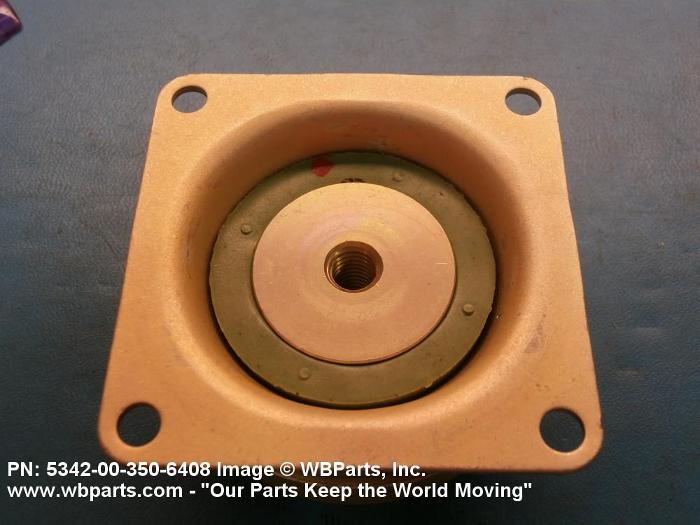

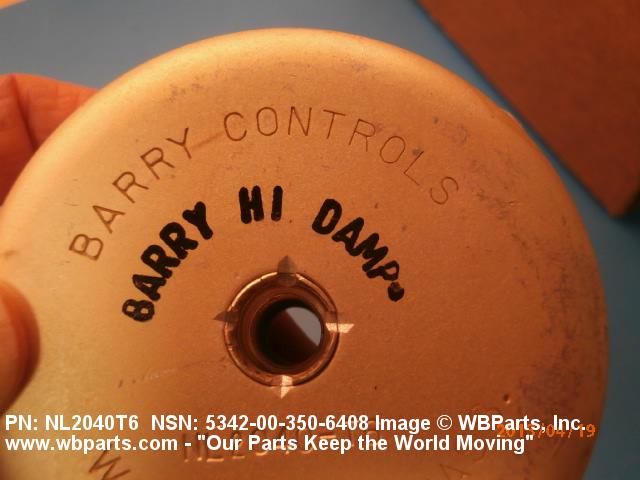

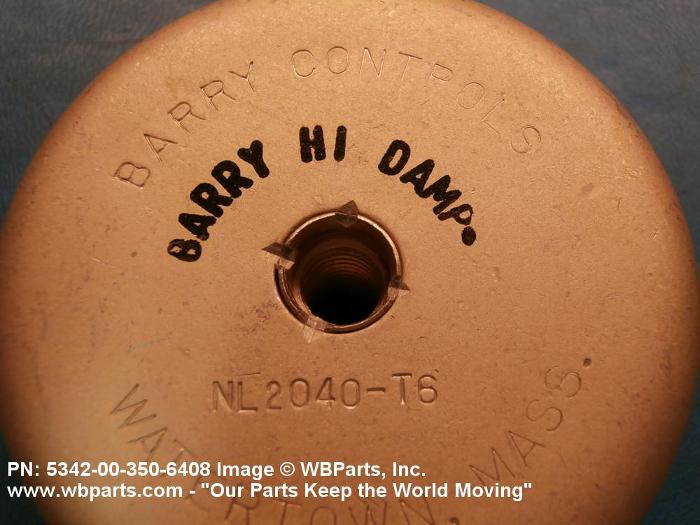

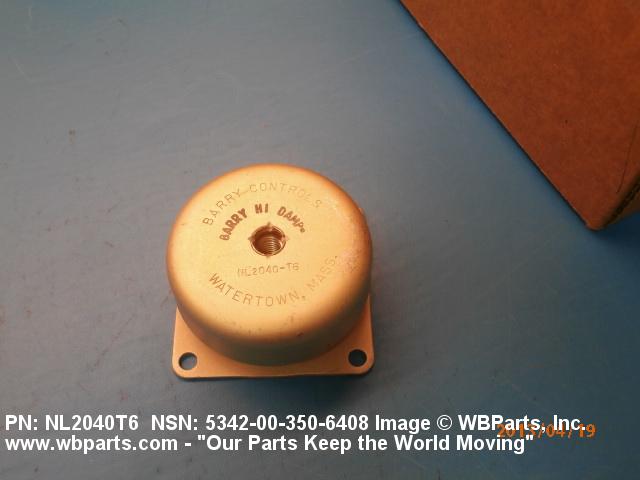

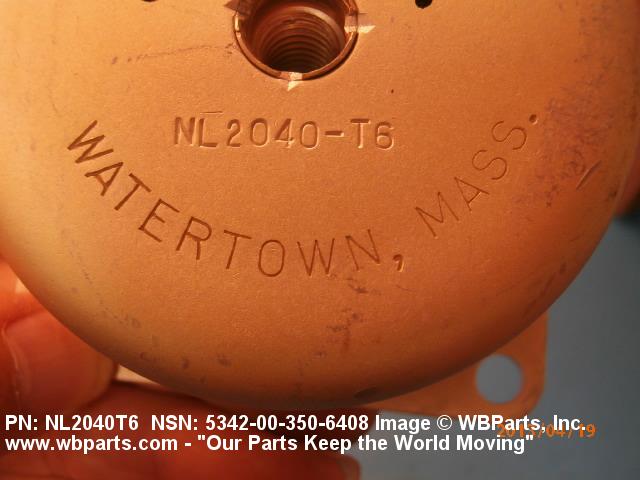

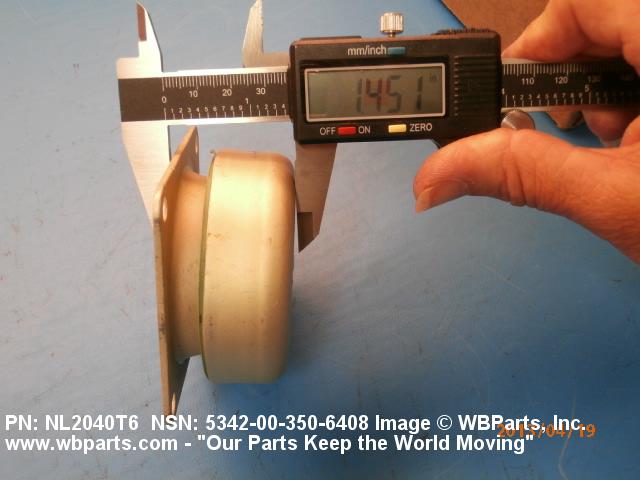

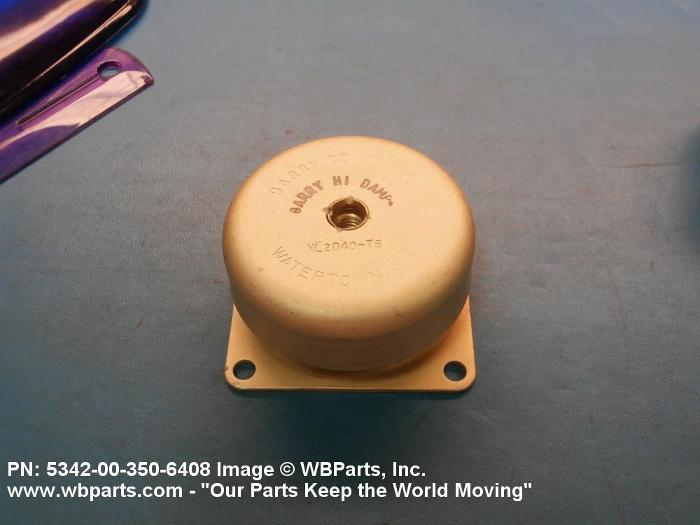

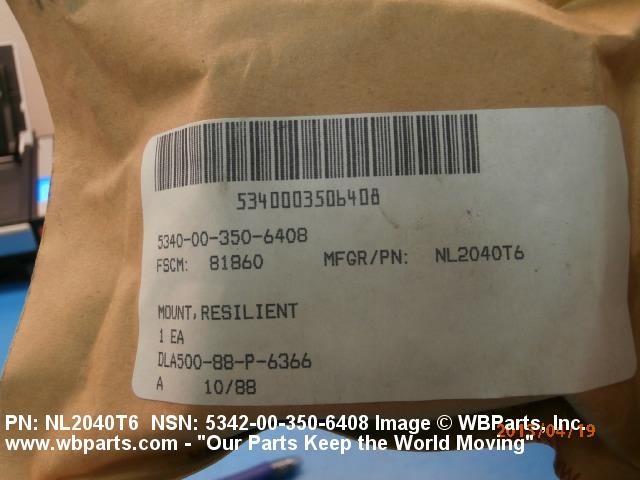

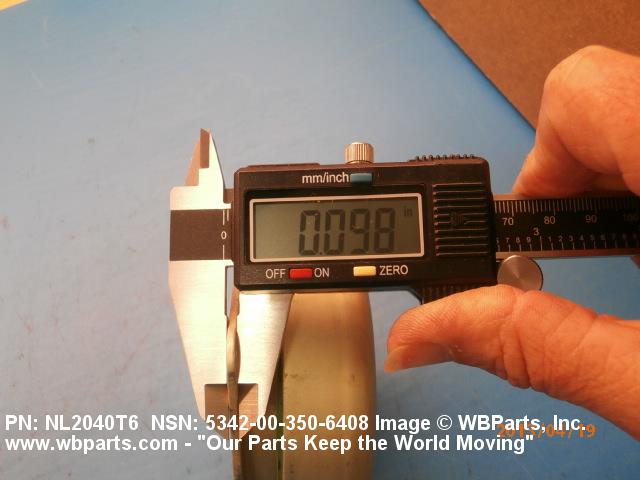

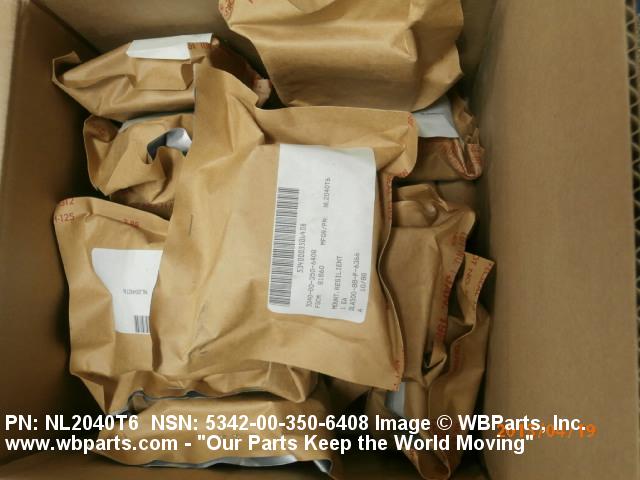

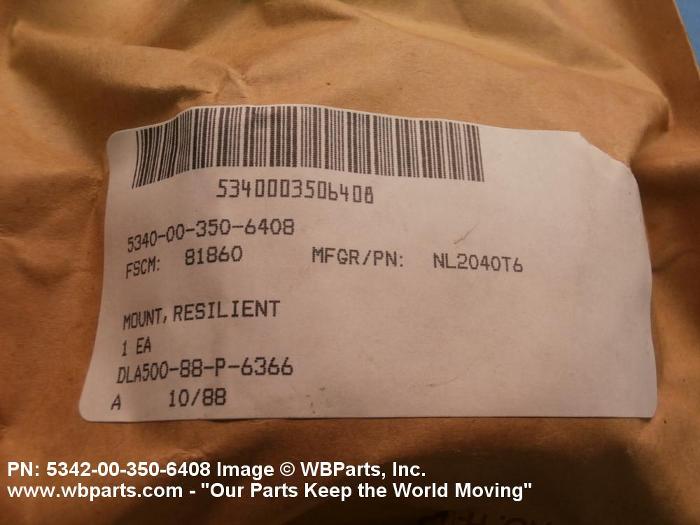

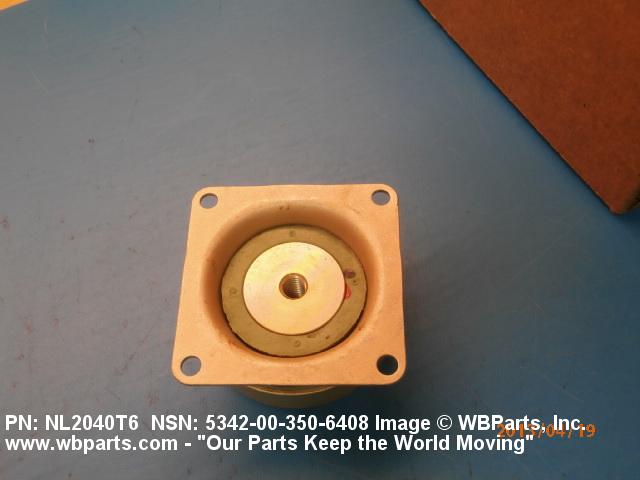

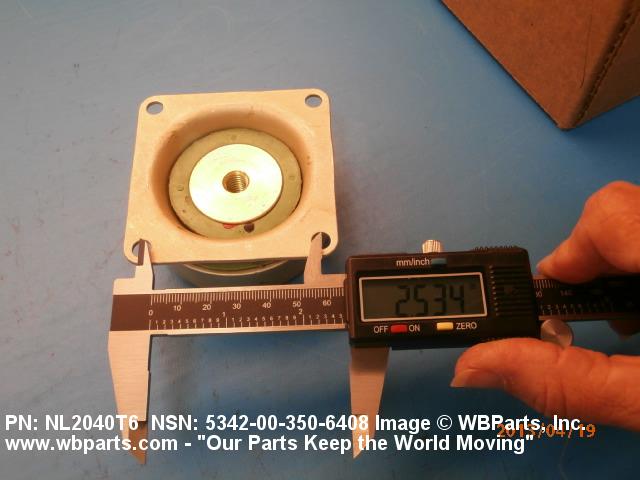

Drawings & Photos | NSN 5342-00-350-6408
Demand History | NSN 5342-00-350-6408
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-350-6408 | 2024-04-93 | 8 | US |
| NL2040T6 | 2023-01-30 | 24 | US |
| NL2040T6 | 2023-01-27 | 24 | US |
| NL2040T6 | 2023-01-13 | 24 | US |
| NL2040T6 | 2023-01-03 | 8 | TW |
| 5342-00-350-6408 | 2022-12-348 | 24 | Tajikistan |
| 5342-00-350-6408 | 2021-07-196 | 1 | TW |
| 5342-00-350-6408 | 2021-07-195 | 20 | TW |
| 5342-00-350-6408 | 2013-04-106 | 15 | United States |
| 5342-00-350-6408 | 2013-02-56 | 10 | United States |
Cross Reference | NSN 5342-00-350-6408
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NL2040T6 | 81860 | BARRY WRIGHT CORPORATION DBA BARRY CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-00-350-6408
Technical Data | NSN 5342-00-350-6408
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | RUBBER |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| RIGID MEMBER MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |
| RIGID MEMBER SURFACE TREATMENT AND LOCATION | ANODIZED OVERALL |
| STYLE DESIGNATOR | C57 ROUND W/FLANGED BUSHING FOUR-HOLE FLANGE |
| FLANGE THICKNESS | 0.093 INCHES NOMINAL |
| THREAD SIZE | 3/8-16 UNC - 2A |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 2.500 INCHES NOMINAL |

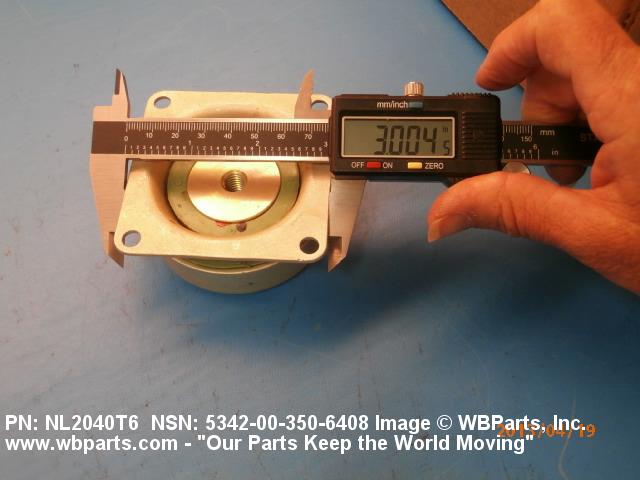

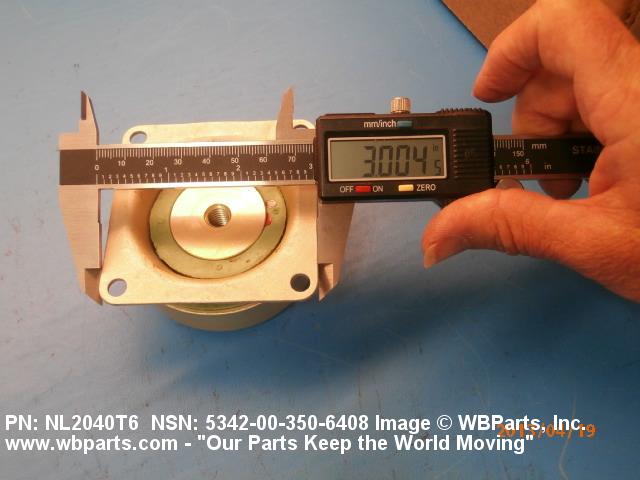

| FLANGE LENGTH | 3.000 INCHES NOMINAL |
| FLANGE WIDTH | 3.000 INCHES NOMINAL |
| SHORTEST DISTANCE BETWEEN MOUNTING HOLE CENTERS | 2.500 INCHES NOMINAL |

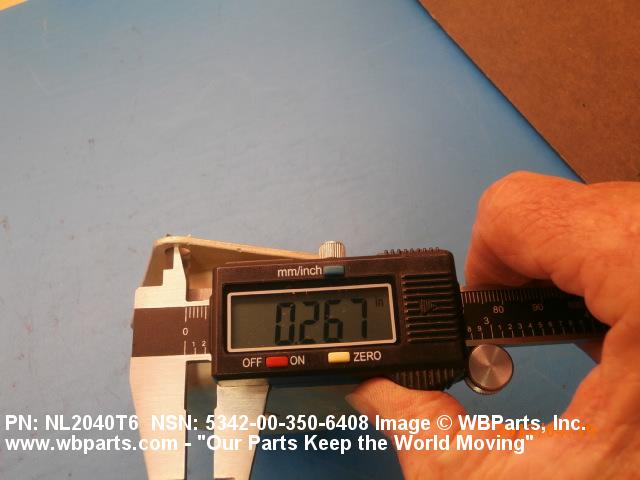

| FLANGE MOUNTING HOLE DIAMETER | 0.266 INCHES NOMINAL |
| HEIGHT | 1.500 INCHES NOMINAL |
| LOAD/FREQUENCY RANGE | NOT SPECIFIED |
| MAXIMUM LOAD RATING | 100.0 POUNDS |
| MANUFACTURERS CODE | 81860 |
| DESIGN CONTROL REFERENCE | NL2040T6 |
Restrictions/Controls & Freight Information | NSN 5342-00-350-6408
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-350-6408
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
