NSN 5342-00-491-7150 J50886, J5088-6, 00-491-7150
Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-00-491-7150 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: J50886, J5088-6, 5342-00-491-7150, 00-491-7150, 5342004917150, 004917150
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 SEP 1970 | 00-491-7150 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

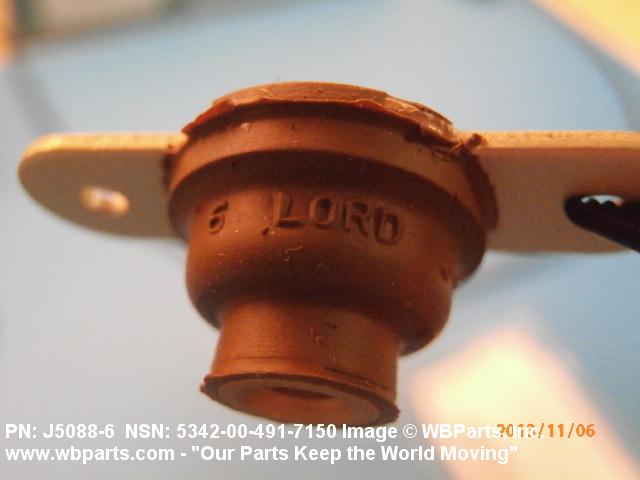

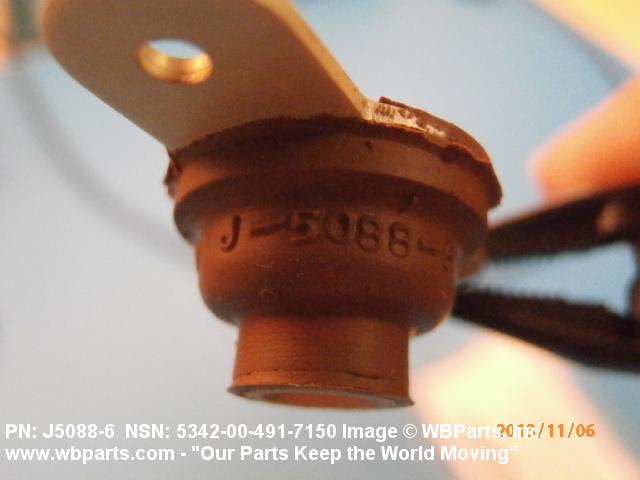

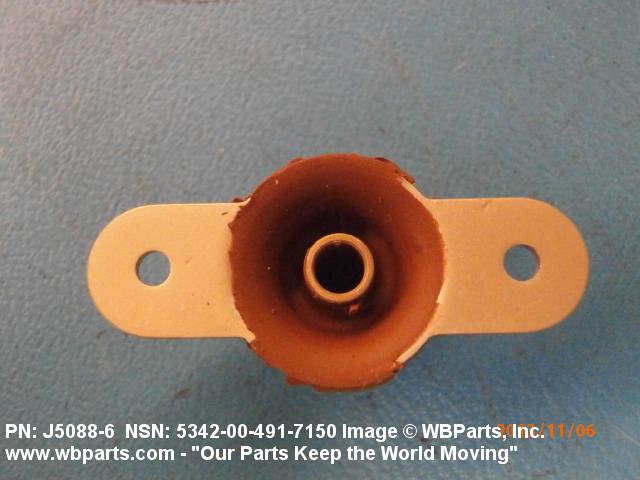

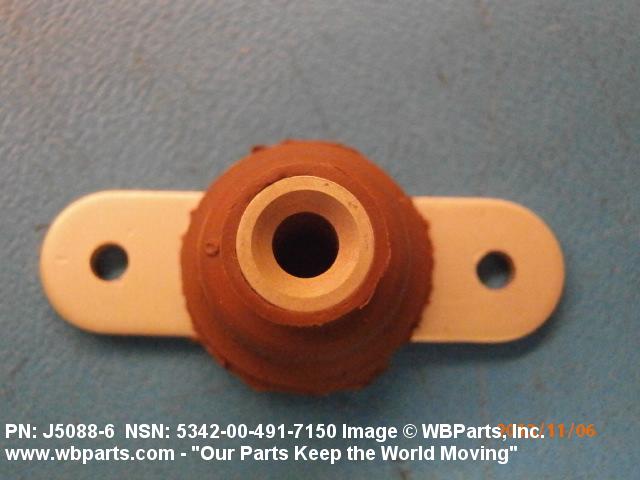

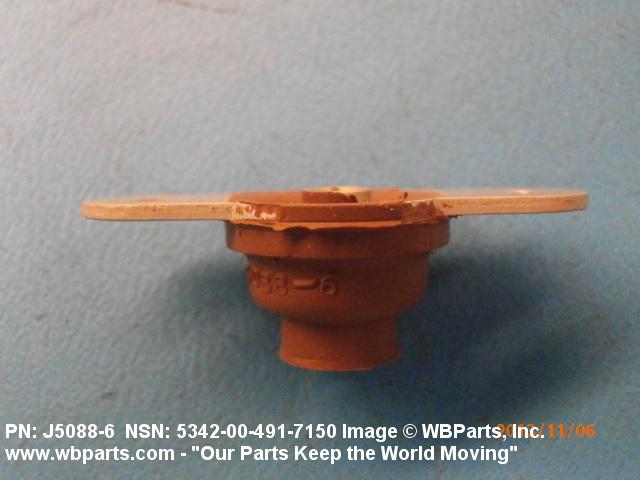

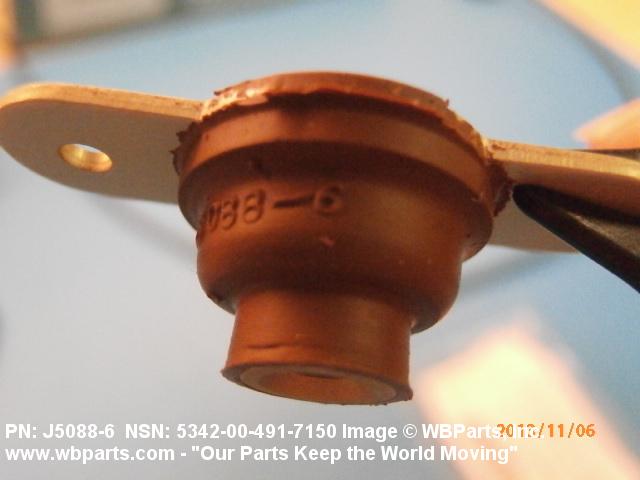

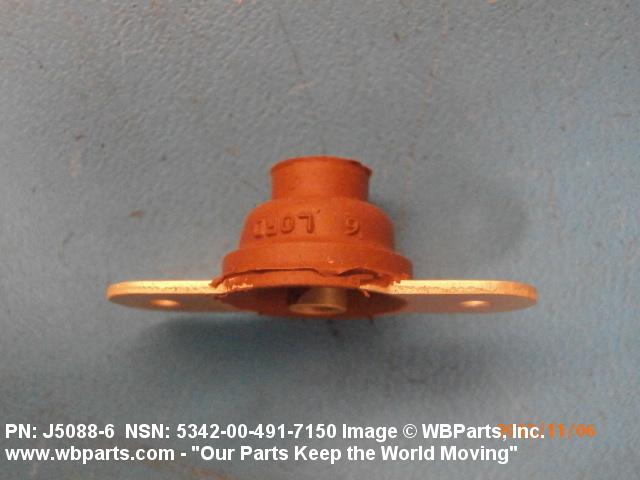

Drawings & Photos | NSN 5342-00-491-7150
Demand History | NSN 5342-00-491-7150
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-491-7150 | 2013-09-267 | 5 | Switzerland |
| 5342-00-491-7150 | 2012-04-121 | 20 | DIBBS |
| 5342-00-491-7150 | 2011-09-259 | 17 | DIBBS |
Cross Reference | NSN 5342-00-491-7150
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J5088-6 | 76005 | LORD CORPORATION DBA AEROSPACE DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-00-491-7150
Technical Data | NSN 5342-00-491-7150
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | RUBBER |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| RIGID MEMBER MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |
| RIGID MEMBER SURFACE TREATMENT AND LOCATION | CHROMATE, J1221-67, TYPE 13, LORD CORP OVERALL |
| STYLE DESIGNATOR | C22 ROUND W/FLANGED BUSHING TWO-HOLE FLANGE |

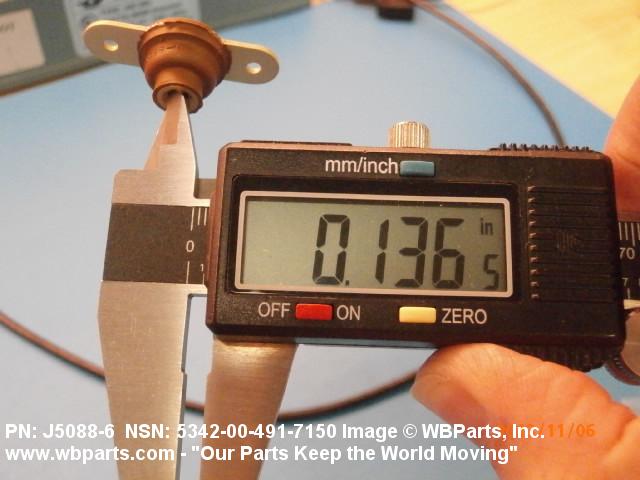

| INSIDE DIAMETER | 0.133 INCHES NOMINAL |

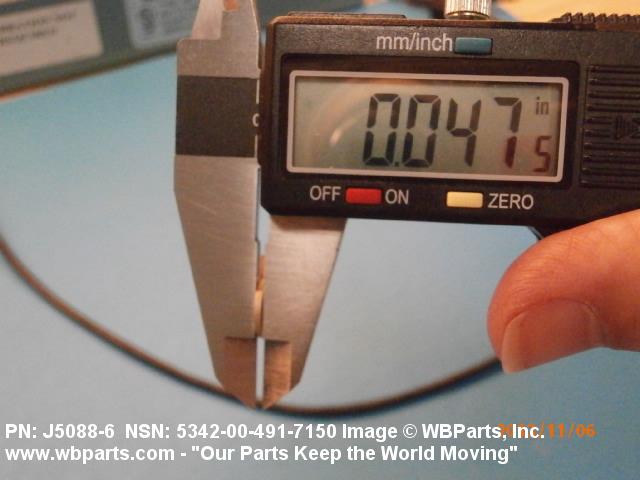

| FLANGE THICKNESS | 0.051 INCHES NOMINAL |

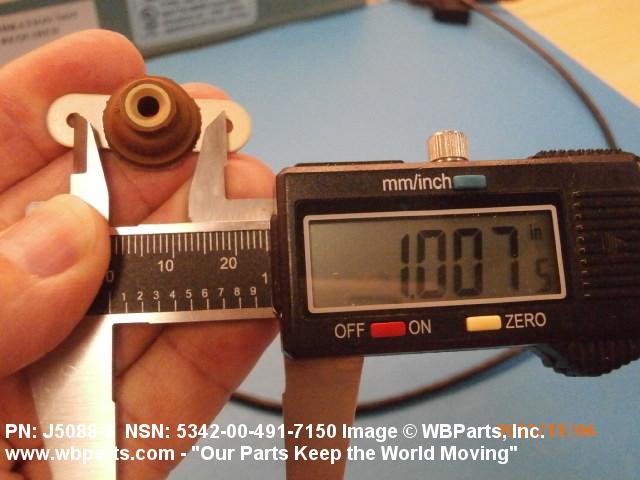

| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.000 INCHES NOMINAL |

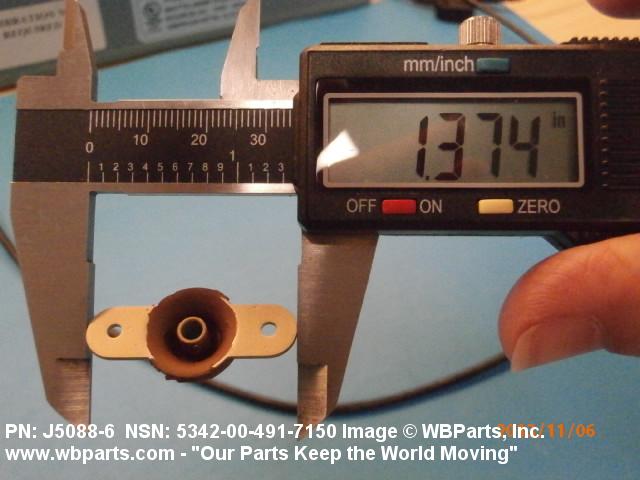

| FLANGE LENGTH | 1.380 INCHES NOMINAL |

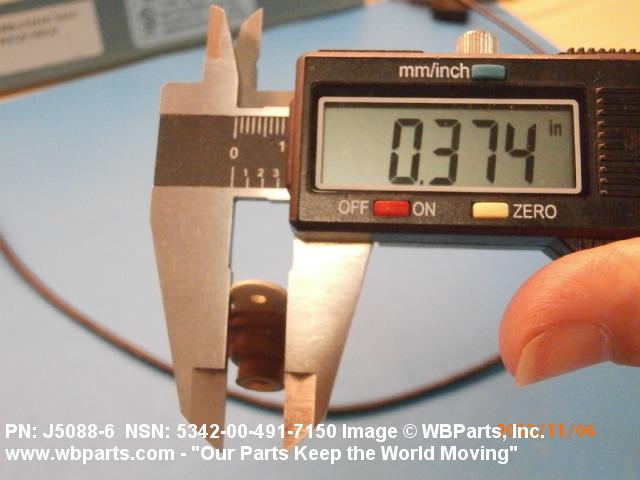

| FLANGE WIDTH | 0.375 INCHES NOMINAL |

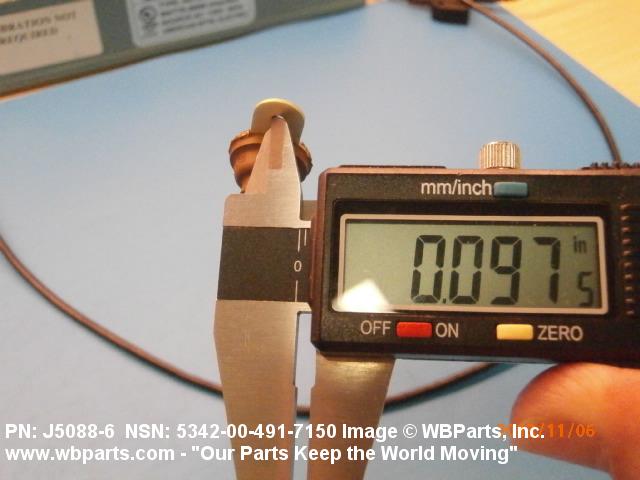

| FLANGE MOUNTING HOLE DIAMETER | 0.095 INCHES MINIMUM AND 0.099 INCHES MAXIMUM |

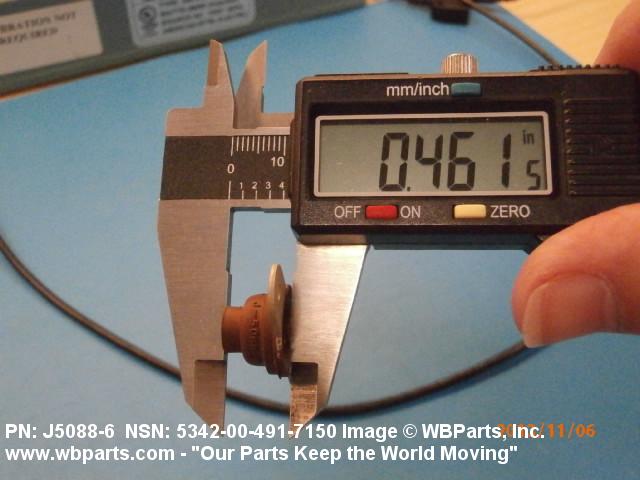

| HEIGHT | 0.463 INCHES NOMINAL |
| LOAD/FREQUENCY RANGE | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
| MANUFACTURERS CODE | 76005 |
| DESIGN CONTROL REFERENCE | J5088-6 |
Restrictions/Controls & Freight Information | NSN 5342-00-491-7150
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-491-7150
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
